Operation
4-65
P/N 7105144G
2008 Nordson Corporation
VersaBlue_NW

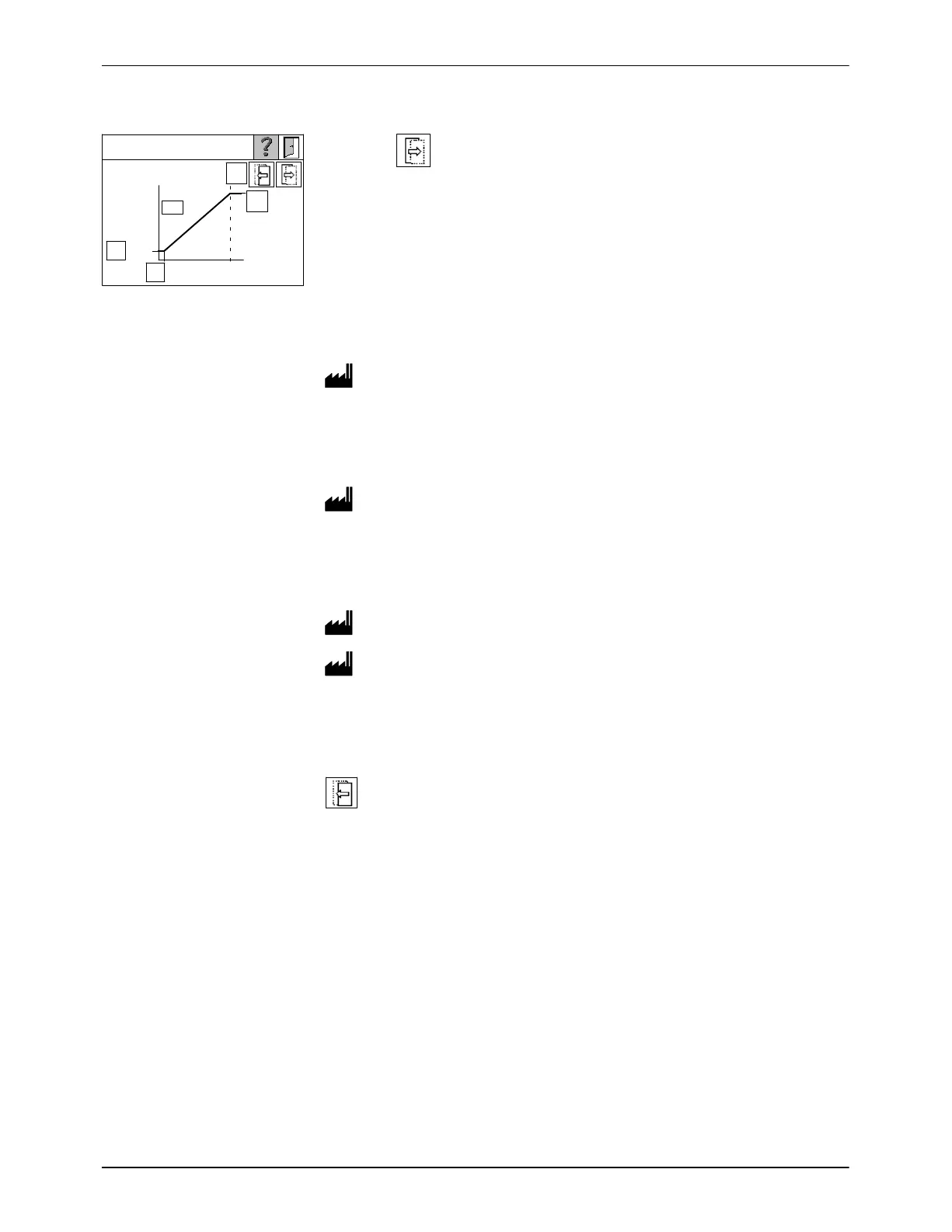

Screen 2: Key-to-line
Touch the key to move to the second setup screen.
NOTE: The graph does not change to adapt to the entered values.
Fig. 4-91 M3
Min. pump speed: Pump speed setpoint when the external line speed
signal lies below the entered value Line speed for min. pump speed.
0.0 min
-1
Max. pump speed: Pump speed setpoint when the external line speed
signal exceeds the entered value Line speed for max. pump speed.
80.0 min
-1
Line speed for min./max. pump speed: Line speed signal value in %,
below or above which the pumps begin to rotate at the set min./max. speed.
Max: 100.0 %
Min: 0.0 %
To M2.2. This key is available only with separate line speed signal
inputs (option).
To Next Page
