DAP deployment rules and requirements 41
Table 2
Floor plan markings (cont’d.)
Marking Description
xCn Label each cell center using this format.
Where x is the floor, and n is the next sequential cell center.
Wide, colore
d lines.
Mark cell boundaries on the floor plan using wide, colored lines.
For example, label a cell center on the second floor as 2C3. The 2 before
the C indicates that the cell center is on the second floor. The 3 after the
C indicates that this cell is the third cell in sequence in the site planning
process.
Table 3
Example cell labels
Floor
Cell label
First floor 2C1, 2C2, 2C3
Ground floor 1C1, 1C2, 1C3
Basement level one –1C1, –1C2, –1C3
Basement level two –2C1, –2C2, –2C3

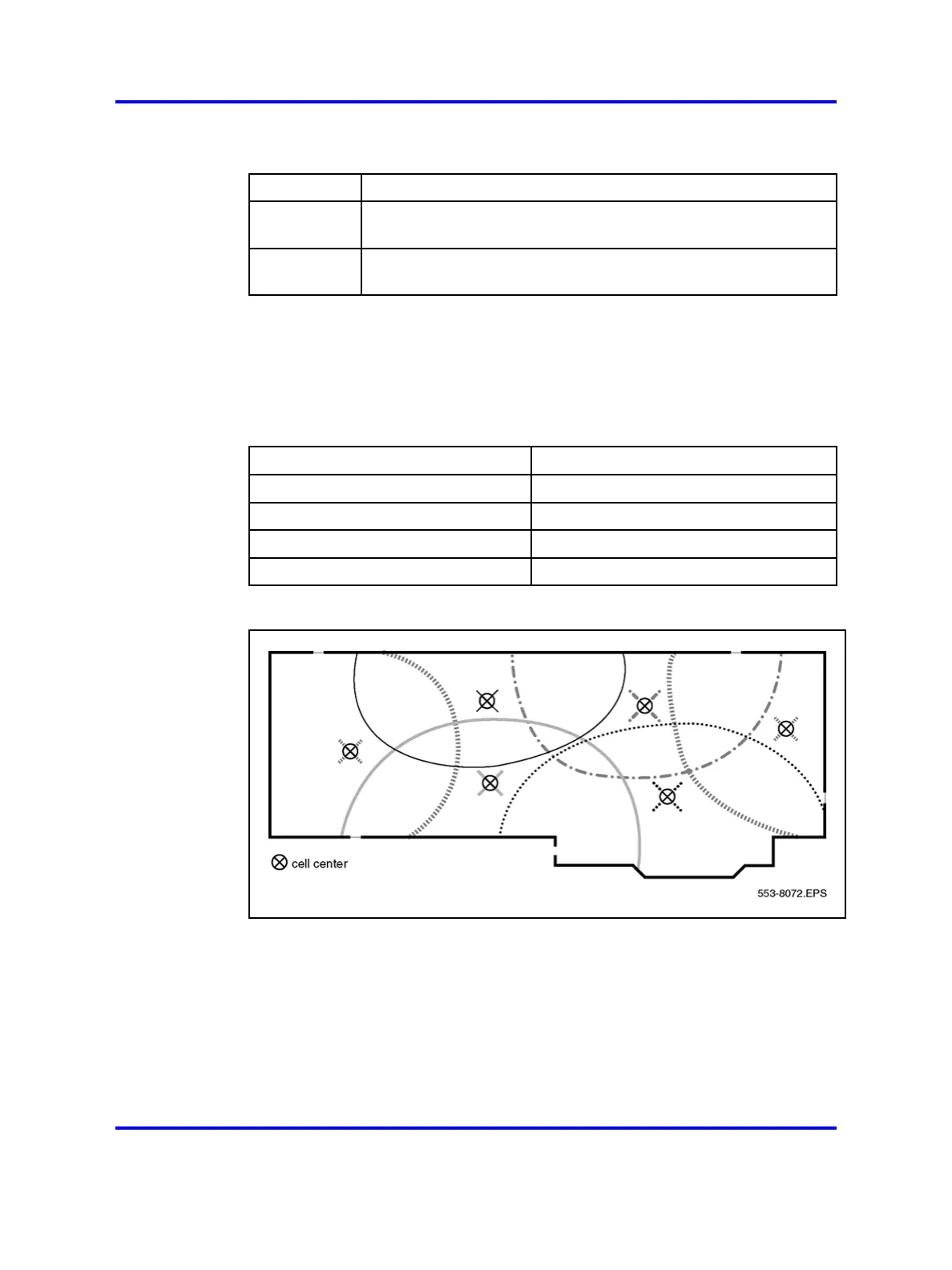

Figure 13
Example cell boundaries
Nortel Communication Server 1000
SIP DECT Fundamentals
NN43120-123 01.07
6 January 2009
Copyright © 2008-2009 Nortel Networks
.
