58 Site planning

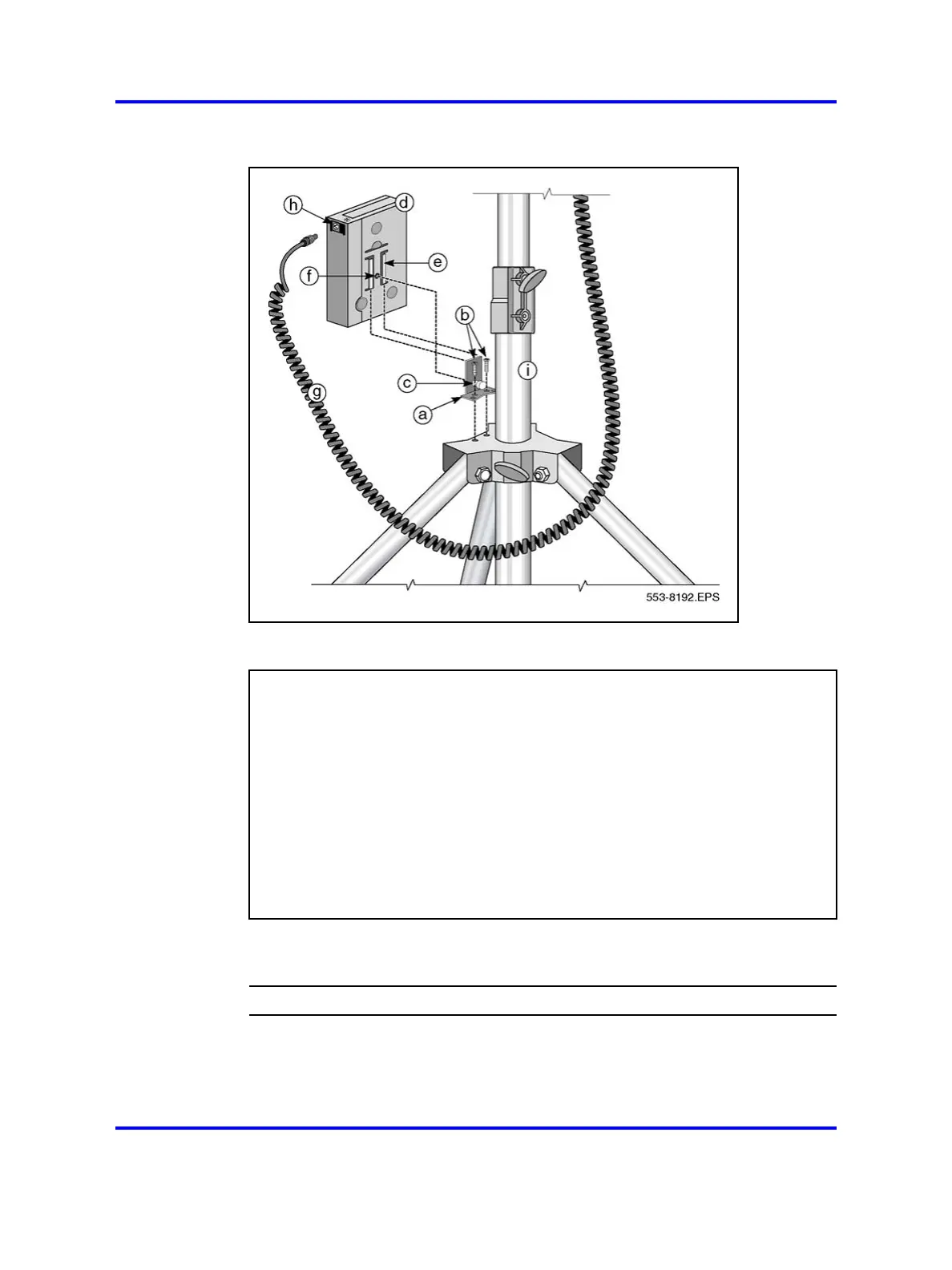

Figure 37
Deployment tool battery details
Table 8
Deployment tool battery details key
a
battery mount
b
Allen screws
c
thumb screw
d battery pack
e
guides
f
thumb screw nut
g
power cord
h
power cord receptacle
i tripod
Procedure 9
Assembling the deployment tool
Step Action
1 Set up the tripod.
Remove the tripod from its carrying case and set upright. Lock
the casters.
Nortel Communication Server 1000
SIP DECT Fundamentals
NN43120-123 01.07
6 January 2009
Copyright © 2008-2009 Nortel Networks
.
