Objet Eden500V - Page 52

Using Objet Studio
5–18 DOC-00500 Rev. F

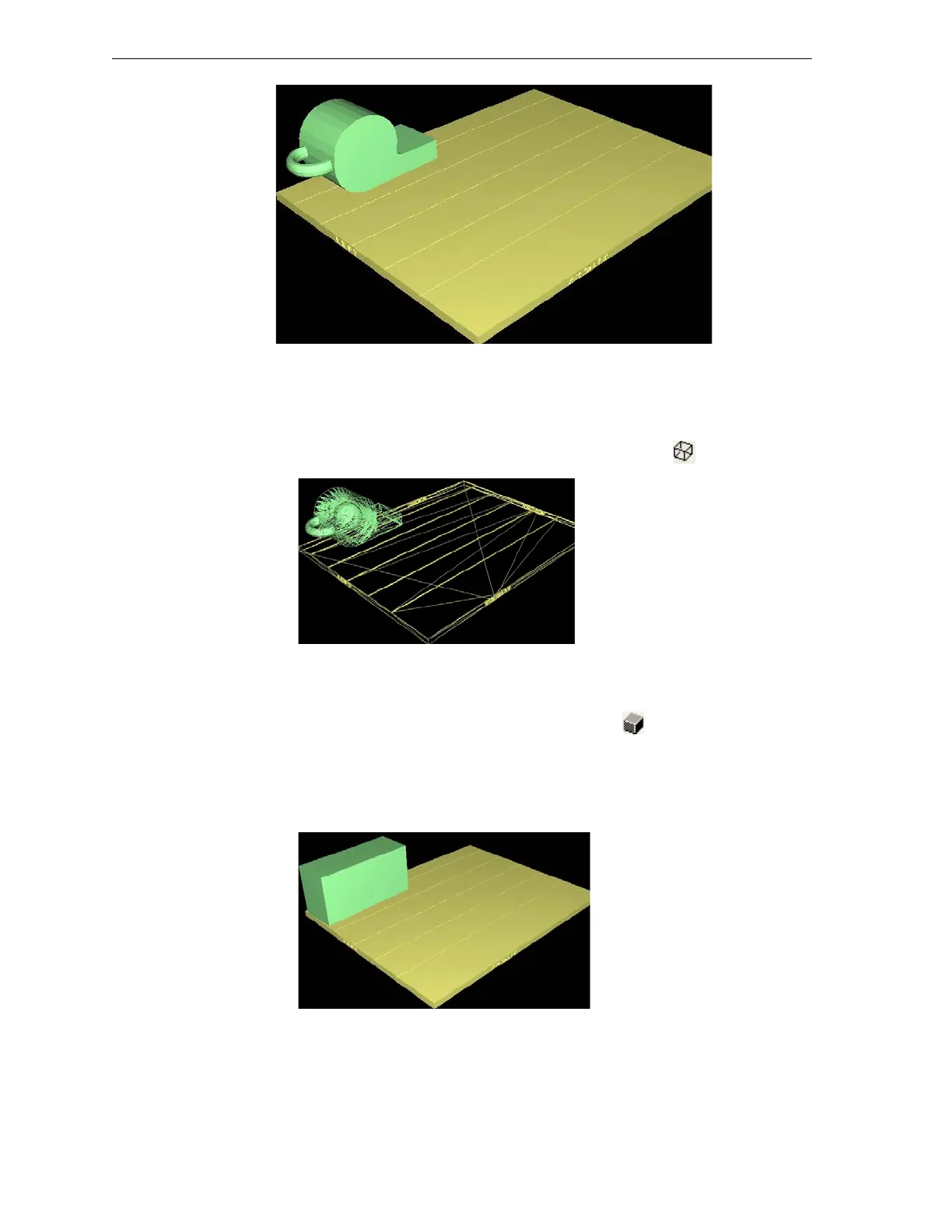

Figure 5-22: Tray and model displayed in shaded view
Theotherdisplayoptionsarewireframeandpoints.
To display the build tray in wire frame view:
¾
SelectView> WireFrameorclicktheWireFrameicon .
Figure 5-23: Tray and model displayed in Wire frame view
To revert to the shaded view:
¾
SelectView > ShadedorclicktheShadedicon .
To display objects as boxes, showing their maximum dimensions
instead of the model geometry:
¾
SelectView > Display Bounding Box.
Figure 5-24: Model displayed with bounding box
To display the area around objects needed for support material (to
produce a matte finish):
¾
SelectView > Display Thickening Box.
