Objet Eden500V - Server Job Manager; Job Manager Screen

DOC-00500 Rev. F 6–7
Eden500V/350V/350 User Guide
Server Job Manager
WhenyouopentheserverObjetStudio/JobManagerforthefirsttime,you
arepromp tedtoconnectto anObjet3‐Dprinter.Todothis,theprintermust
beonandconnectedtothelocalnetwork.IfyouclickYes,theSetting
NetworkConnectiondialogboxopens.

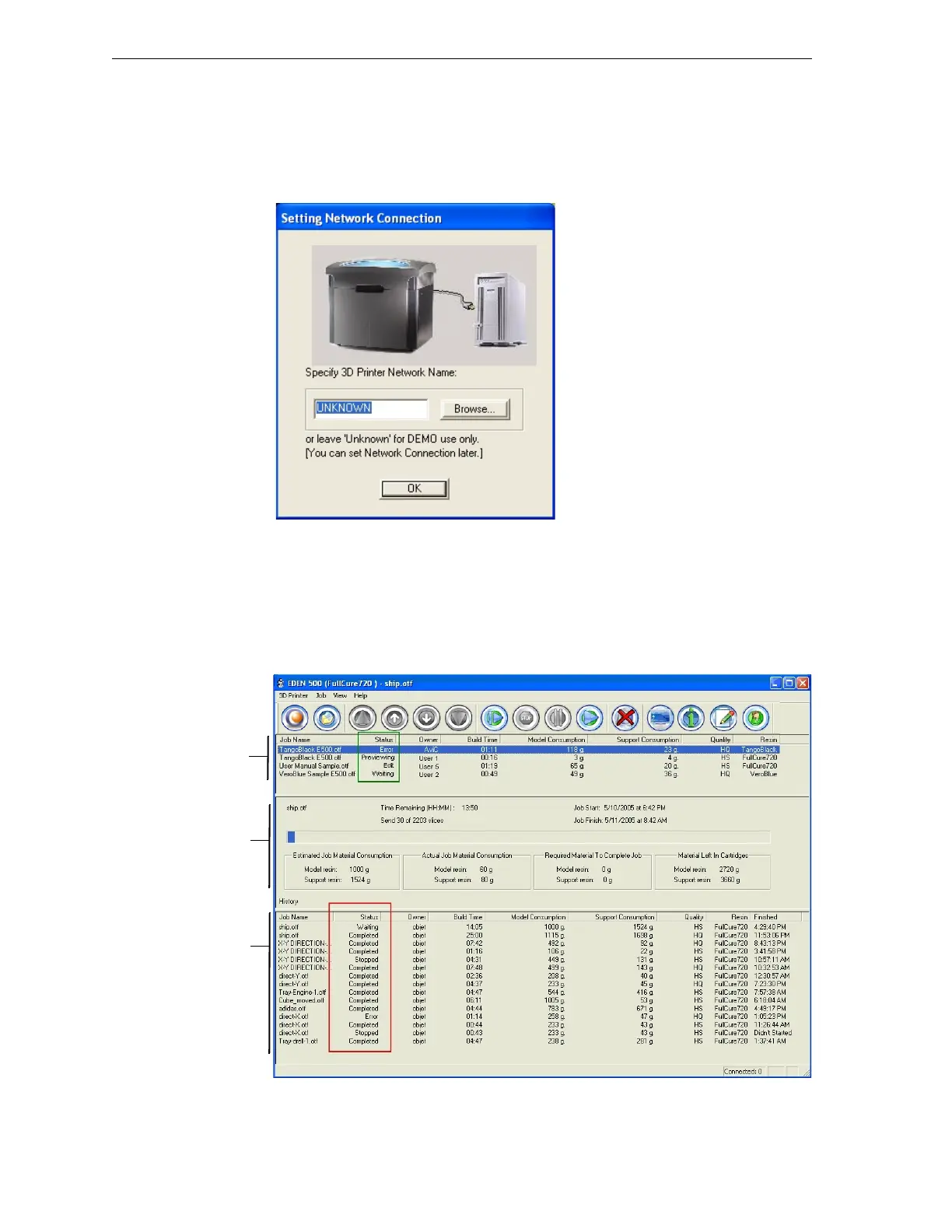

Figure 6-6: Printer connection dialog box
ClickBrowsetofindandselectthenameofthecomputerinsidetheprinter
andthenclick
OKtoclosethedialogbox.
Job Manager
Screen
Onaservercomputer,JobManagerdisplaysthequeueofjobssenttoitby
allclientcomputers.Inaddition,itlistsdetailsofthelast15jobssenttothe
printer,andinformationaboutthejobcurrentlybeingprinted.
Figure 6-7: Server Job Manager screen
Print Queue
Print History
Current Job
Info
