Oki B6200 User Manual

1 - 89
Chapter 1 Troubleshooting

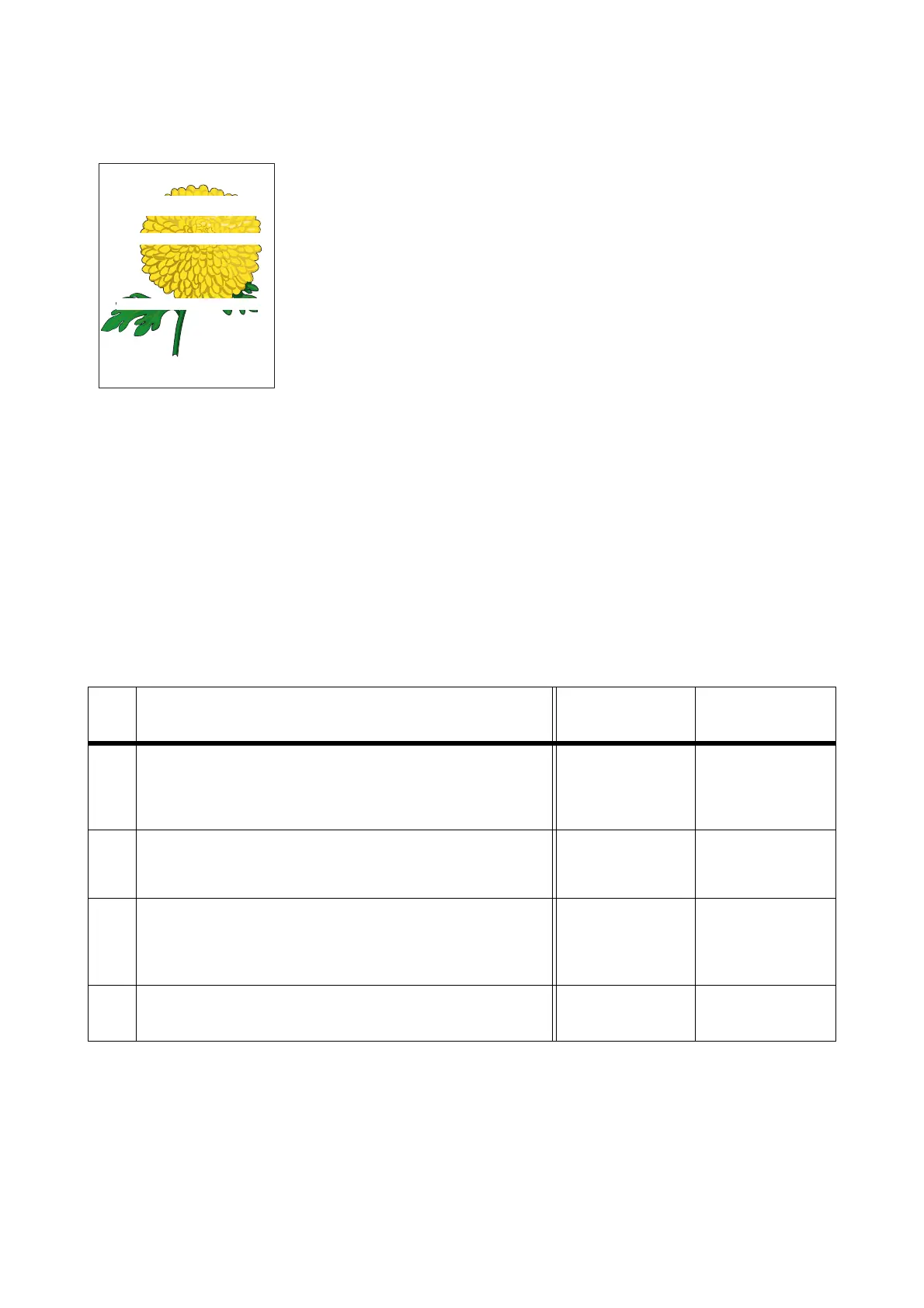

FIP-1.P5 Horizontal band cross out
Trouble substance
There are some extremely faint or completely non-printed parts. Those non-
printed parts cover a wide area horizontally, perpendicular to the paper feeding
direction.
ESS and possible causative parts
- EP CARTRIDGE
- HVPS/MCU (PL12.1.19)
- GUIDE ASSY CRU R (PL8.1.25)
- BTR ASSY (PL8.1.21)
- 150 FEEDER ASSY (PL5.1.1)
- ROS ASSY (PL8.1.1)
- PWBA ESS (PL12.1.13)
- FUSER ASSY (PL8.1.20)
- Heat Roll
- Pressure Roll
- MAIN MOTOR (PL11.1.2)
- GEAR ASSY HOUSING (PL11.1.3)
- CLUTCH REGI (PL5.1.23)
- 250 FEEDER ASSY (PL6.1.11)
- 550 FEEDER ASSY (PL7.1.10)
Before commencing troubleshooting, check the paper transfer course. Make sure there is no foreign
articles on the transfer course, such as staples, paper clips, scraps of paper and so on.
Step Check Yes No
1
Checking the paper condition
Have new, dry and recommended paper on.
Re-print the problem image.
Does the problem still occur?
Go to step 2. End of work
2
Checking EP CARTRIDGE
Install new EP CARTRIDGE.
Has the horizontal band cross out gone?
End of work Go to step3.
3
Checking BTR ASSY
Remove BTR ASSY. (RRP8.10)
Check if any stains and/or wear on BTR ASSY.
Are there any stains and/or wear on BTR?
Go to step 4.
Replace BTR
ASSY. (RRP8.10)
4
Checking ROS ASSY
Are the connectors on ROS ASSY surely connected?
Go to step 5.
Reconnect the
connectors.

Oki B6200 Specifications

General

Color	No
Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	10.2 s
Print speed (black, normal quality, A4/US Letter)	24 ppm
Internal memory	128 MB
Processor model	PowerPC
Maximum internal memory	640 MB
Sound power level (standby)	50.3 dB
Total input capacity	400 sheets
Total output capacity	500 sheets
Maximum print size	210 x 297 mm
Media weight (tray 1)	60 - 216 gsm
Paper tray media types	Labels, Transparencies
Non-ISO print media sizes	Executive (184 x 267mm), Legal (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Power requirements	230VAC +/-10%, 50/60Hz +/-2%
Compatible operating systems	Windows 98, 98SE, ME, NT4.0, 2000, XP
Maximum duty cycle	75000 pages per month
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	15 - 80 %

Weight and Dimensions

Dimensions (WxDxH)	422 x 455 x 324 mm
