6. Troubleshooting procedure

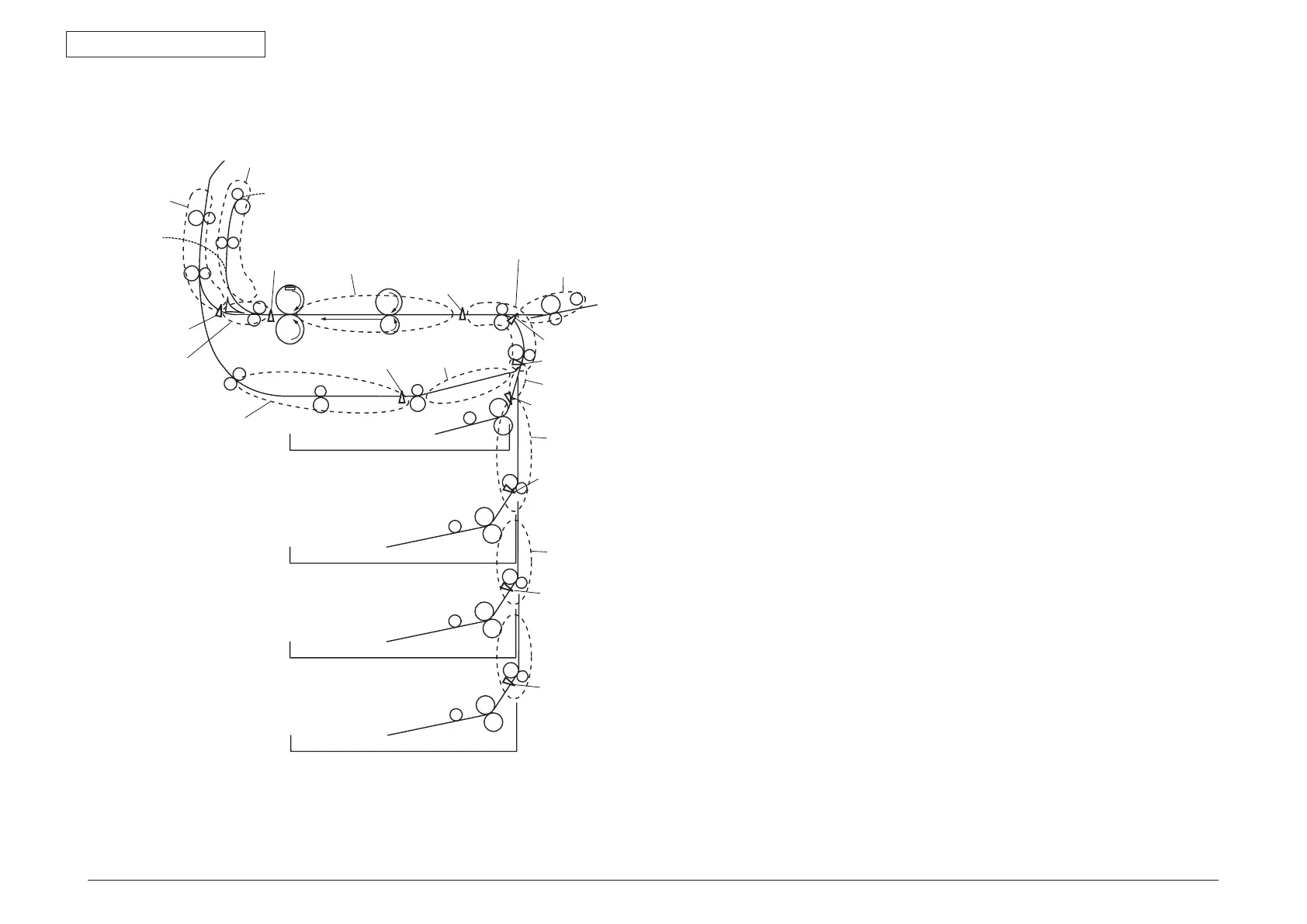

Outline drawing of jam locations
J7
(382:Exit)
J8
(383:Duplex Entry)
J1
(370:Duplex
Reversal)
DUP-IN sensor
2nd-IN
SENSOR
IN1 sensor
IN2 sensor
WR2 sensor
DUP-F sensor
EXIT sensor
J2
(371:Duplex Input)
J11
(392:Tray2)
J10
(391:Tray1)
J3
(372:Missfeed
at Duplex)
J9
(390:MISS FEED AT
FRONTFEEDER)
3rd-IN
SENSOR
J14
(393:Tray3)
4th-IN
SENSOR
HOP sensor
J6
(381:TRANSPORT)
J5(380:FEED)
J12(400:PAPER
SIZE ERROR)
