3. Component replacement
3.2.22 DC motor (fuser)
(1) Remove the Cover-Rear-Blind. (Refer to 3.2.3)
(2) Remove the Cover–Side-R. (Refer to 3.2.5)
(3) Remove the power supply unit. (Refer to 3.2.7)
(4) Remove the Cover-Assy-Stacker. (Refer to 3.2.20)
(5) Remove the Eject-Assy. (Refer to 3.2.21)

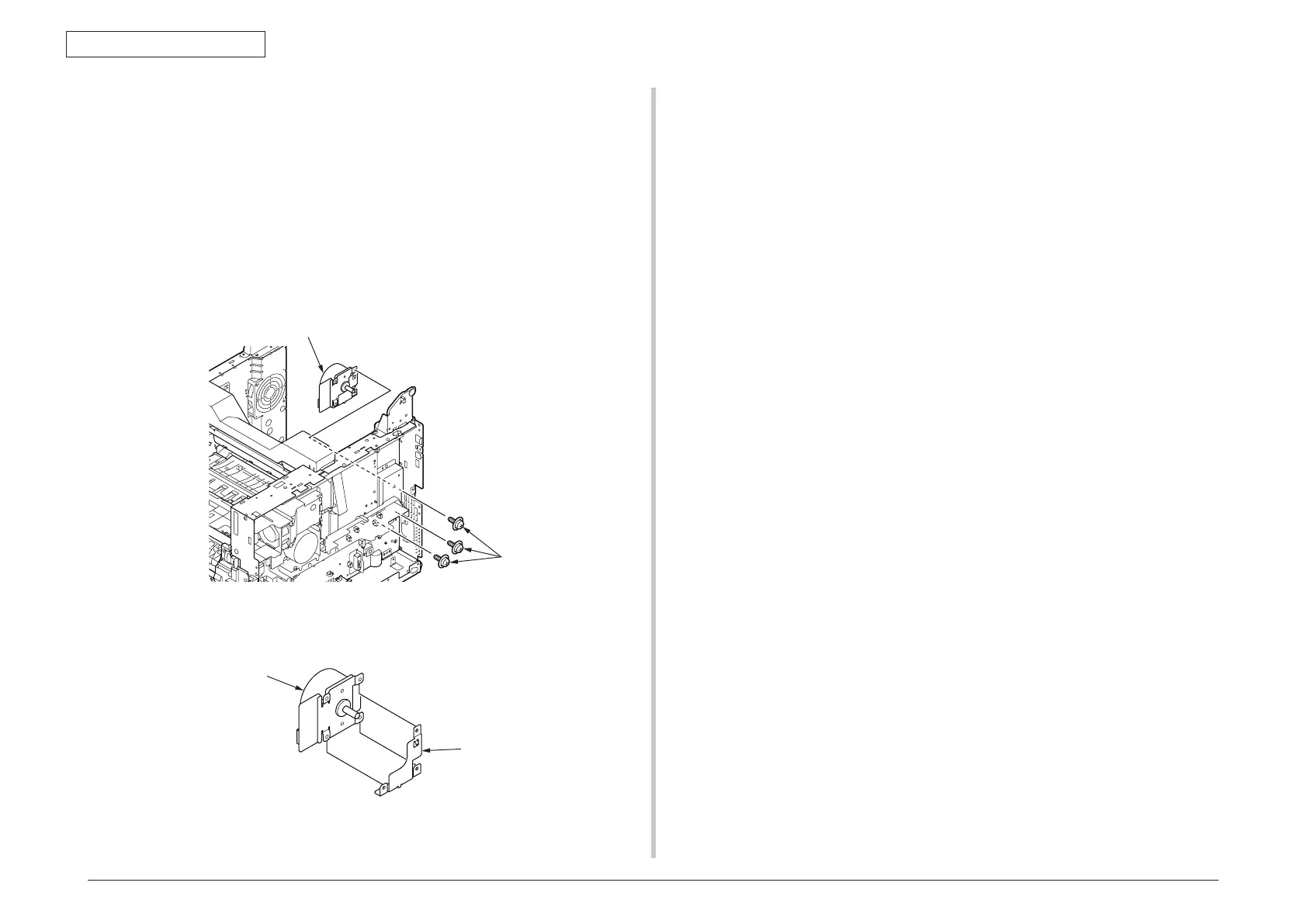

(6) Disconnect the cable from the DC motor (fuser)
①
.
(7) Remove the three screws (silver)
②
, and remove the DC motor (fuser)
①
.
①
②
(8) Separate the DC motor (fuser)
①
and the Plate-Motor-FU
③
.
③
①
