3. Component replacement
3.2.6 PU/CU-Board
3.2.6.1 PU/CU-Board
(1) Remove the Cover-Rear-Blind. (Refer to 3.2.3)
(2) Remove the Cover-Side-R. (Refer to 3.2.5)

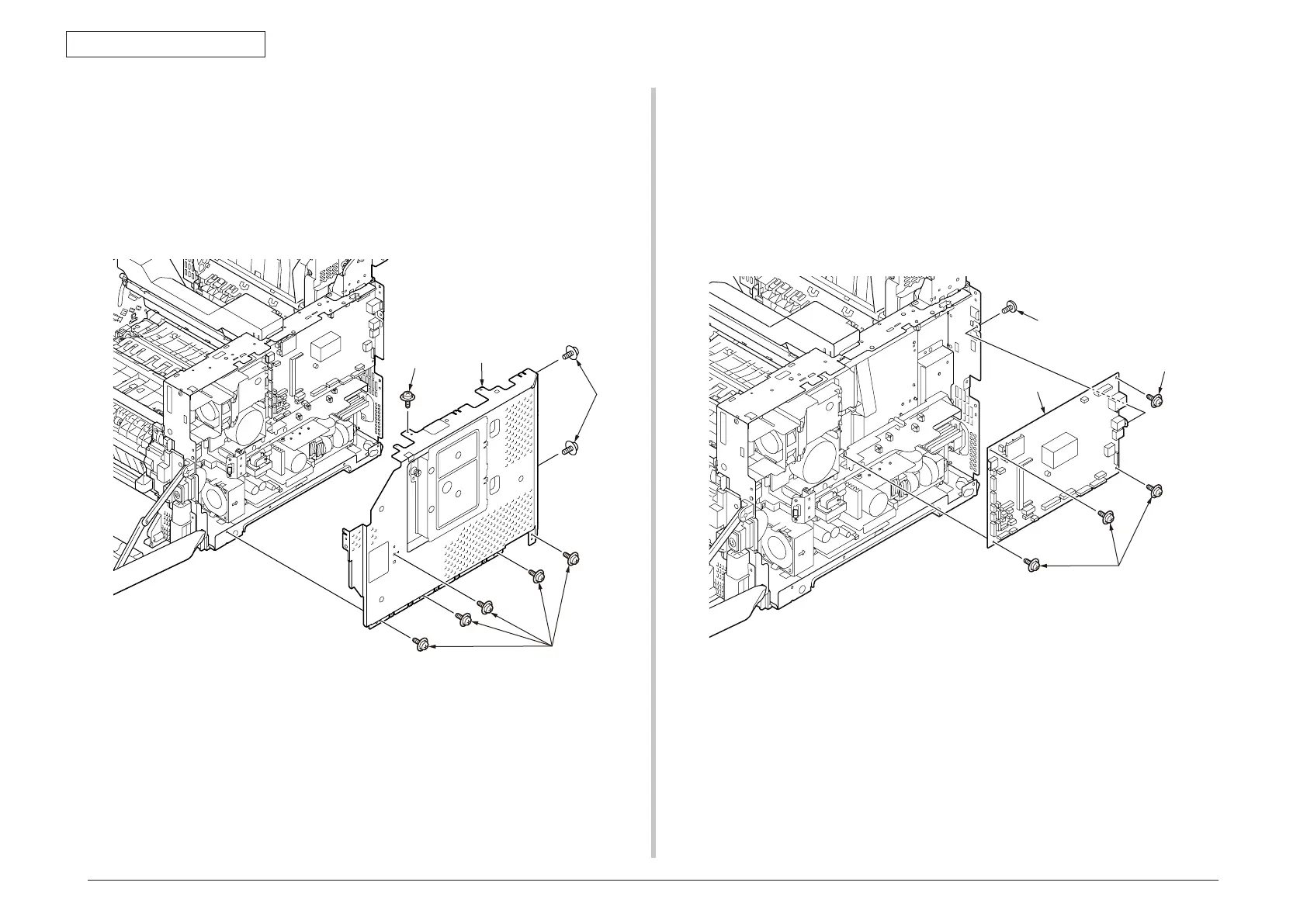

(3) Remove the eight screws (silver)
①
, and remove the Plate-Shield
②
.
(4) Disconnect all cables from PU/CU-Board
③
.
(5) Remove the four screws (silver)
④
and the screw (silver)
⑤
, and remove the
PU/CU-Board
③
.
①
①
①
②
③
④
④
⑤
To Next Page
