Oki B721 Maintenance Manual

45487001TH Rev.1
3-18 /
Oki Data CONFIDENTIAL
3. Component replacement
3.2.21 Eject-Assy
(1) Remove the Cover-Rear-Blind. (Refer to 3.2.3)
(2) Remove the Cover-Side-L and the Cover–Side-R. (Refer to 3.2.4 / 3.2.5)
(3) Remove the PU/CU-Board. (Refer to 3.2.6)
(4) Remove the Cover-Assy-Stacker. (Refer to 3.2.20)

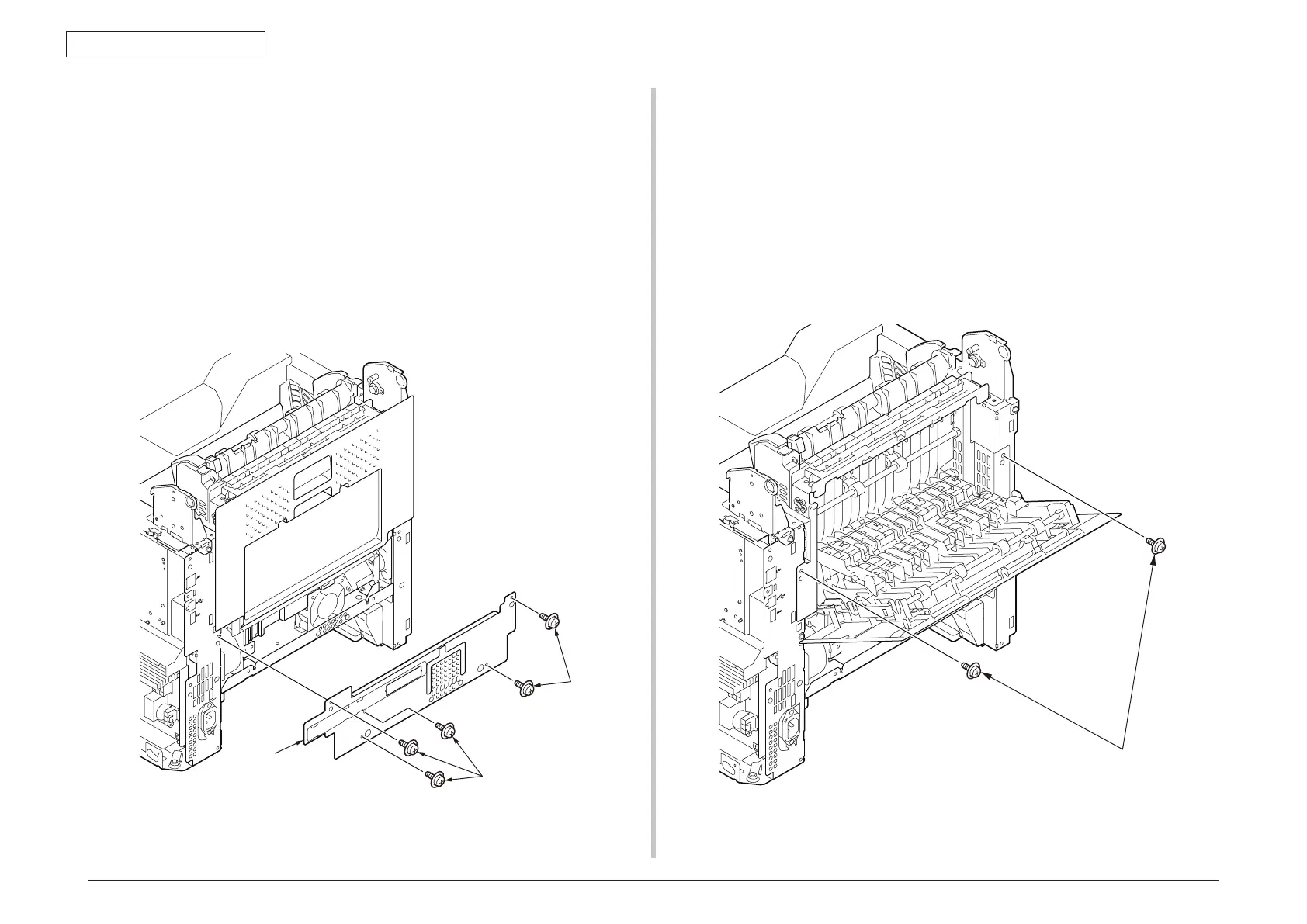

(5) Remove the five screws (silver)
①
, and remove the Plate-Centro
②
.
③
(6) Open the rear cover, and remove the two screws (silver)
③
.
②
①
①
