45487001TH Rev.1
3-27 /
Oki Data CONFIDENTIAL
3. Component replacement
3.3 Portions Lubricated
Portions lubricated are shown in this section. The other portions must not be lubricated.
Lubrication is not required during assembly or disassembly, except that the lubricant
specified must be applied to portions from which lubricant was wiped.
Lubrication work
(1) Lubricant names and their abbreviations
EM-30LP: MOLYKOTE EM-30LP
HP-300: MOLYKOTE HP-300
EM-D110: MOLYKOTE EM-D110
HANARL: HANARL SF-133
Tetra: Tetra C-9310 or C-5005

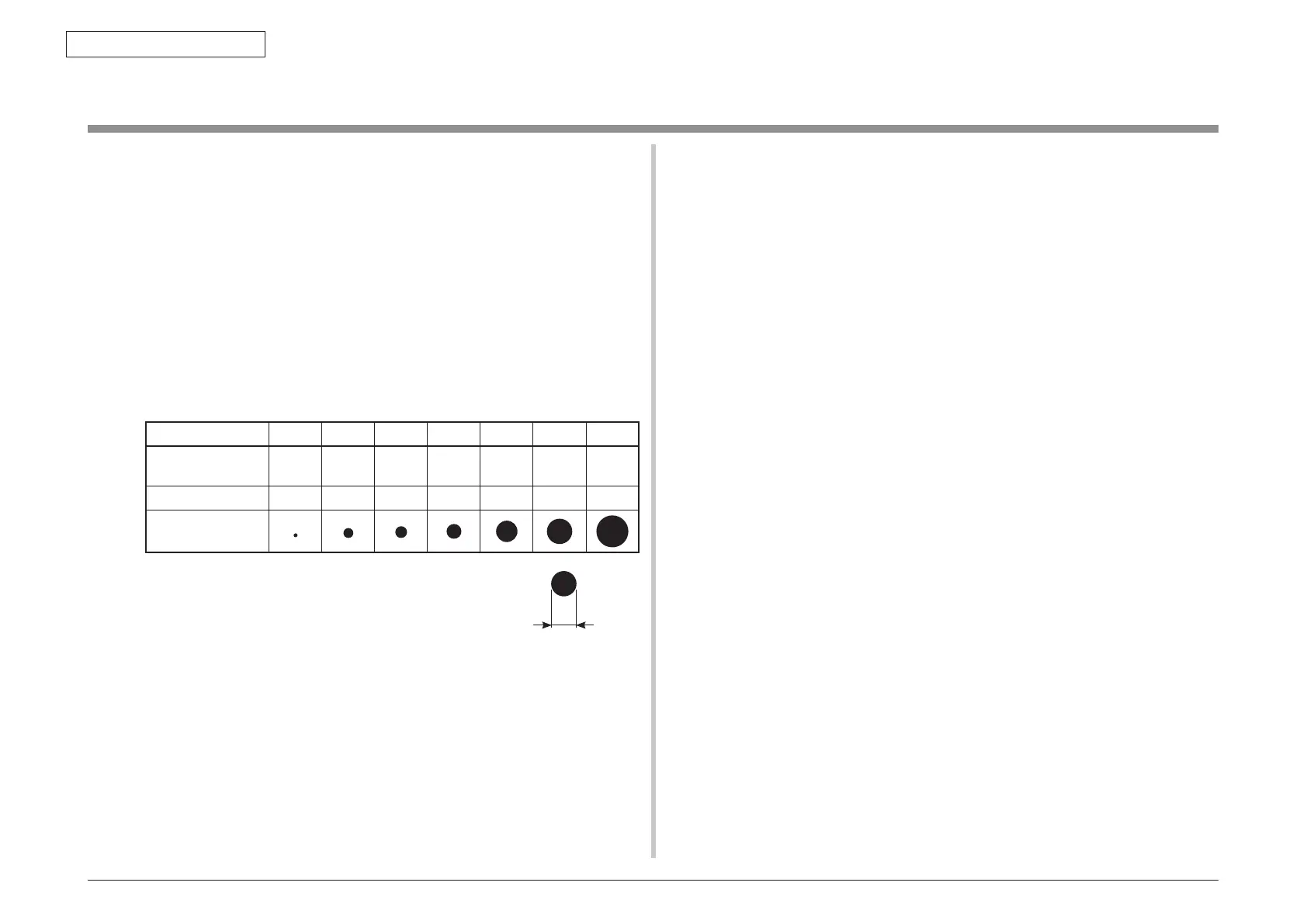

(2) Standard of amount of grease
Class S A B C D E F
Amount of grease
(cc)
0.0005 0.003 0.005 0.01 0.03 0.05 0.1
W(mm) 1.24 2.25 2.67 3.37 4.86 5.76 7.26
Sample
W
To Next Page
