3. Component replacement

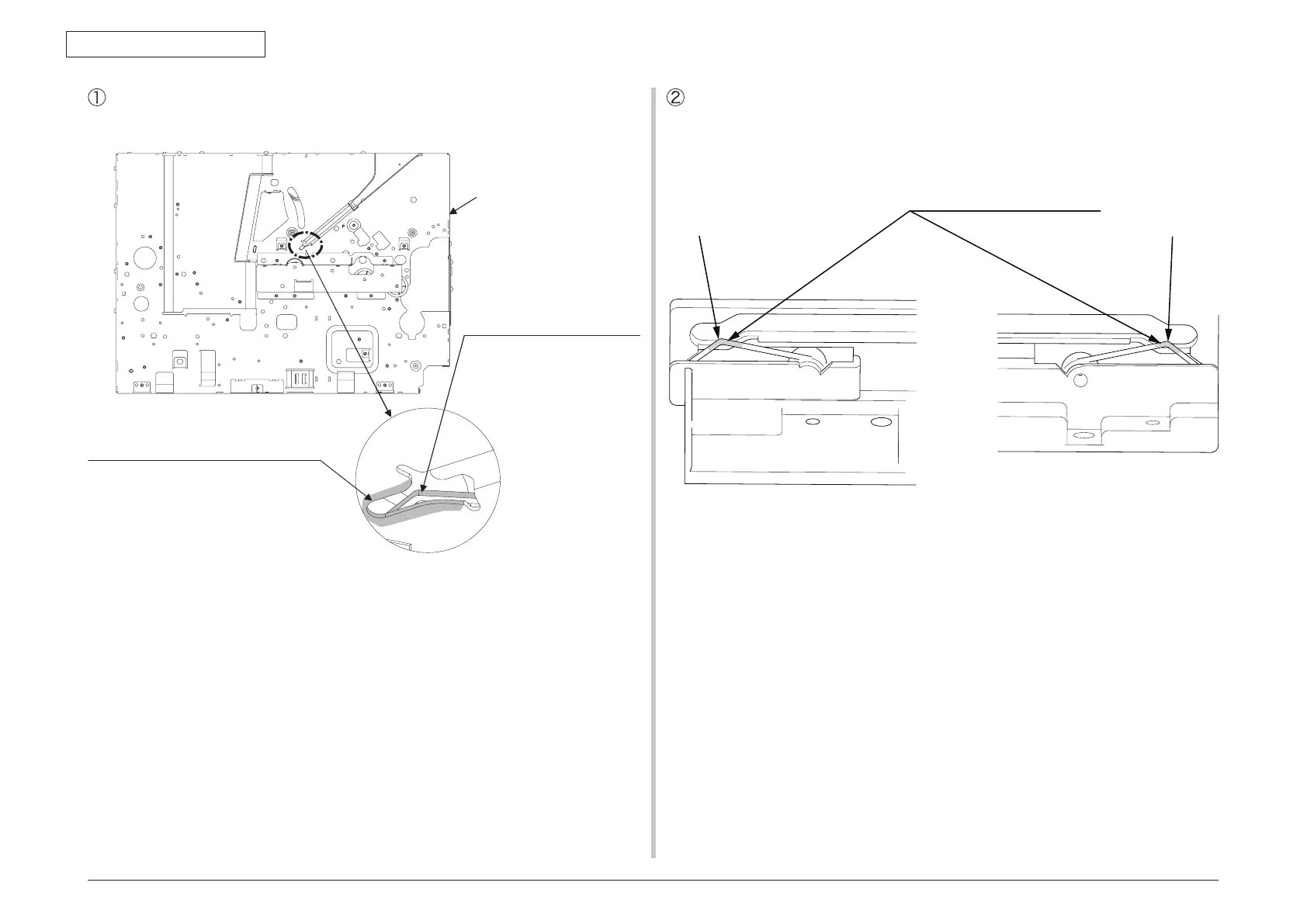

Plate-Assy-Side-R Plate-Assy-Base
Plate-Assy-Side-R
EM-30LP Class B
Apply a normal amount of MOLYKOTE
(EM-30LP) to the sliding surface with
Drum Shaft (hatched areas).
EM-30LP Class A
Apply a normal amount of
MOLYKOTE (EM-30LP) to the
hatched areas of Spring-ID-R.
Spring-Dup-R
Spring-Dup-L
Apply a normal amount of
MOLYKOTE (EM-30LP) to the
hatched areas. (Spring)
