3. Component replacement

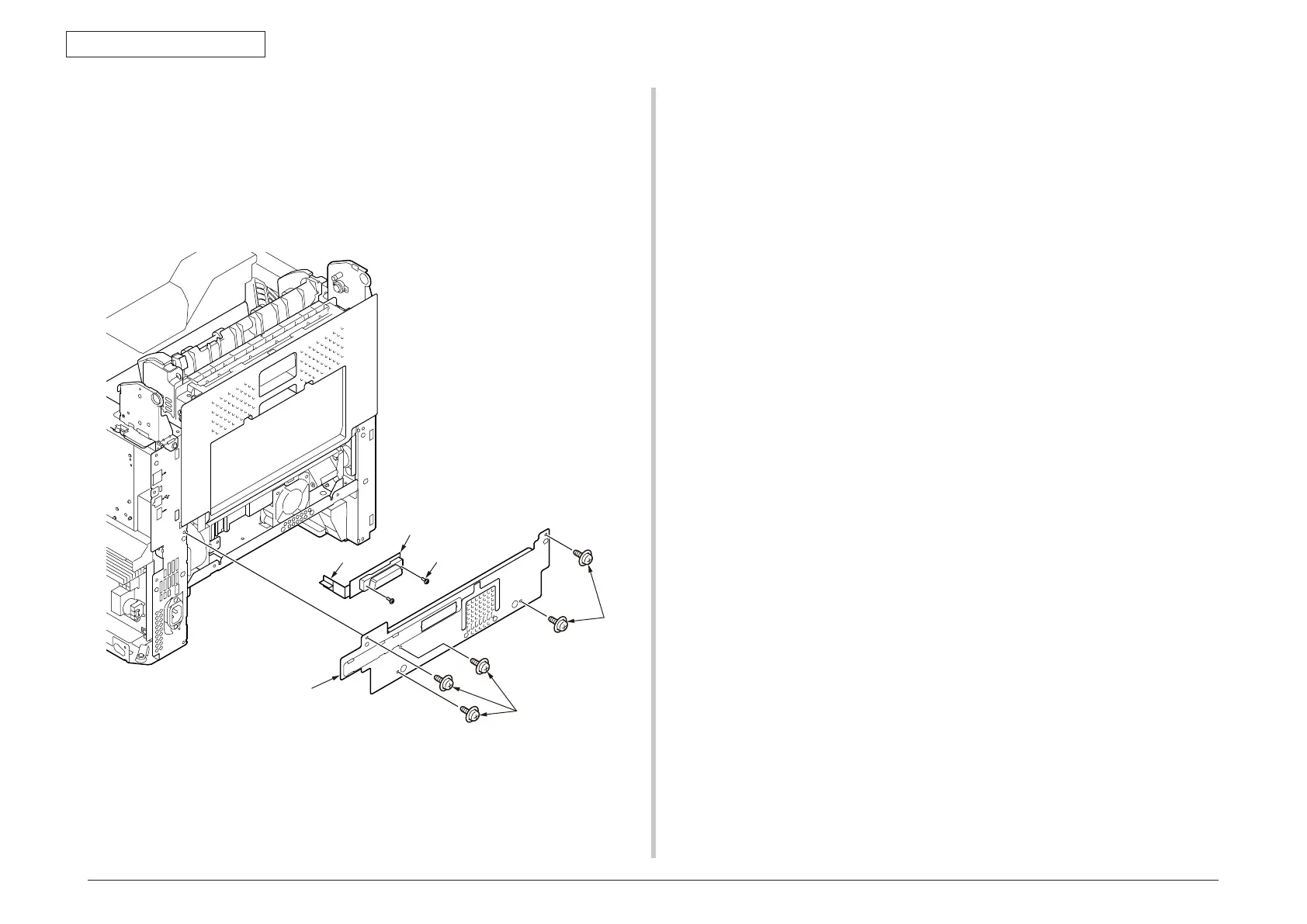

3.2.26 Centro Board (for Centro model only)
(1) Remove the five screws (silver)
①
, and remove the Plate-Centro
②
.(Refer to
3.2.21)
(2) Remove the two screws (silver)
③
, and disconnect the FFC Cable
④
and
remove the Centro Board
⑤
.
④
③×2
⑤
②
①
①
