45487001TH Rev.1
3-19 /
Oki Data CONFIDENTIAL
3. Component replacement

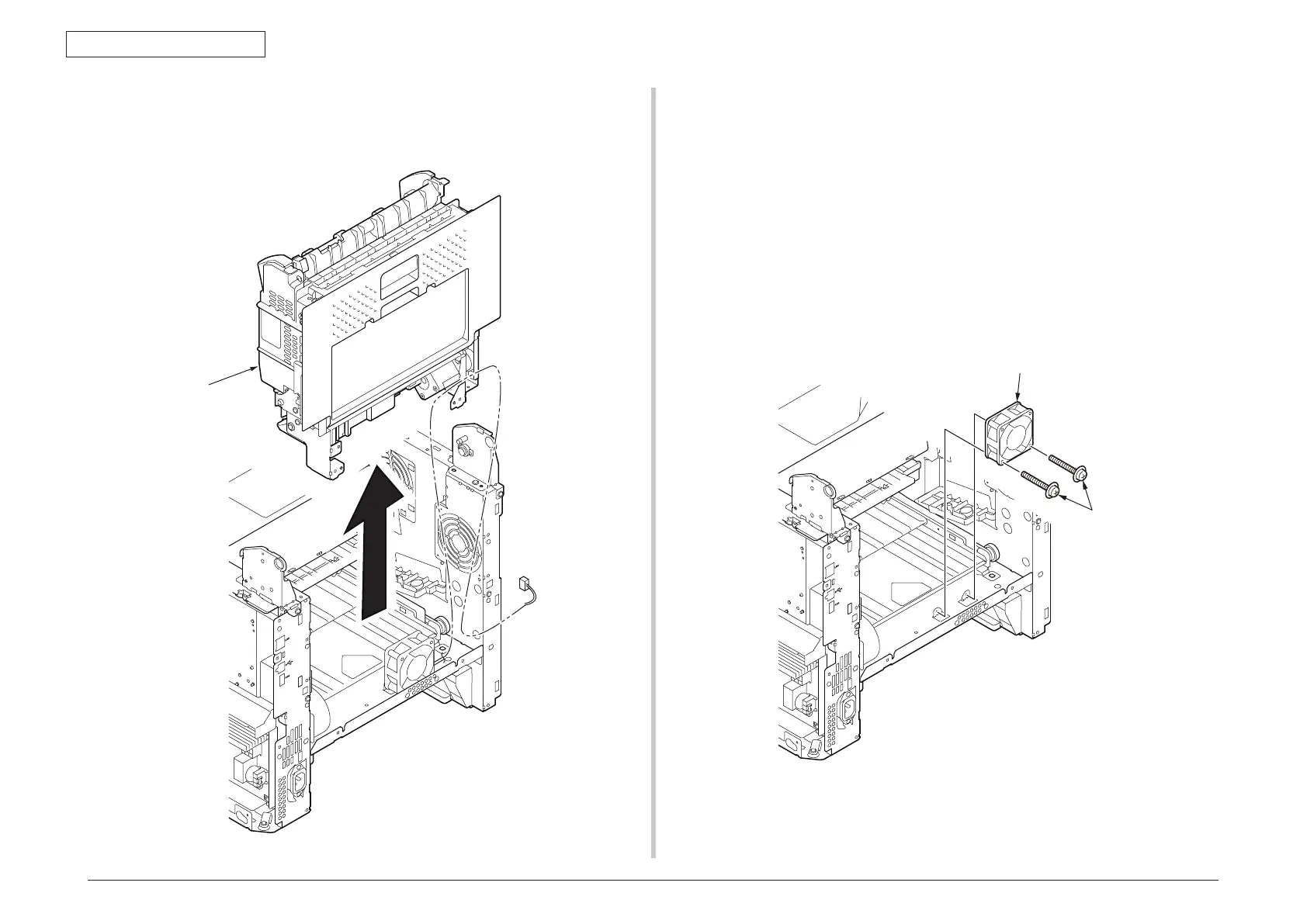

(7) Remove the cable of the Motor FAN
④
from the Eject-Assy
⑤
.
(8) Close the rear cover, and remove the Eject-Assy
⑤
.
(9) Remove the two screws (silver/28mm)
⑥
, and remove the Motro FAN
④
.
Note! Be careful to install the Motor-FAN
④
in the proper direction.
④
⑥
⑤
