42615101TH Rev.8
105 /
Oki Data CONFIDENTIAL
(Blue)
1
3
2

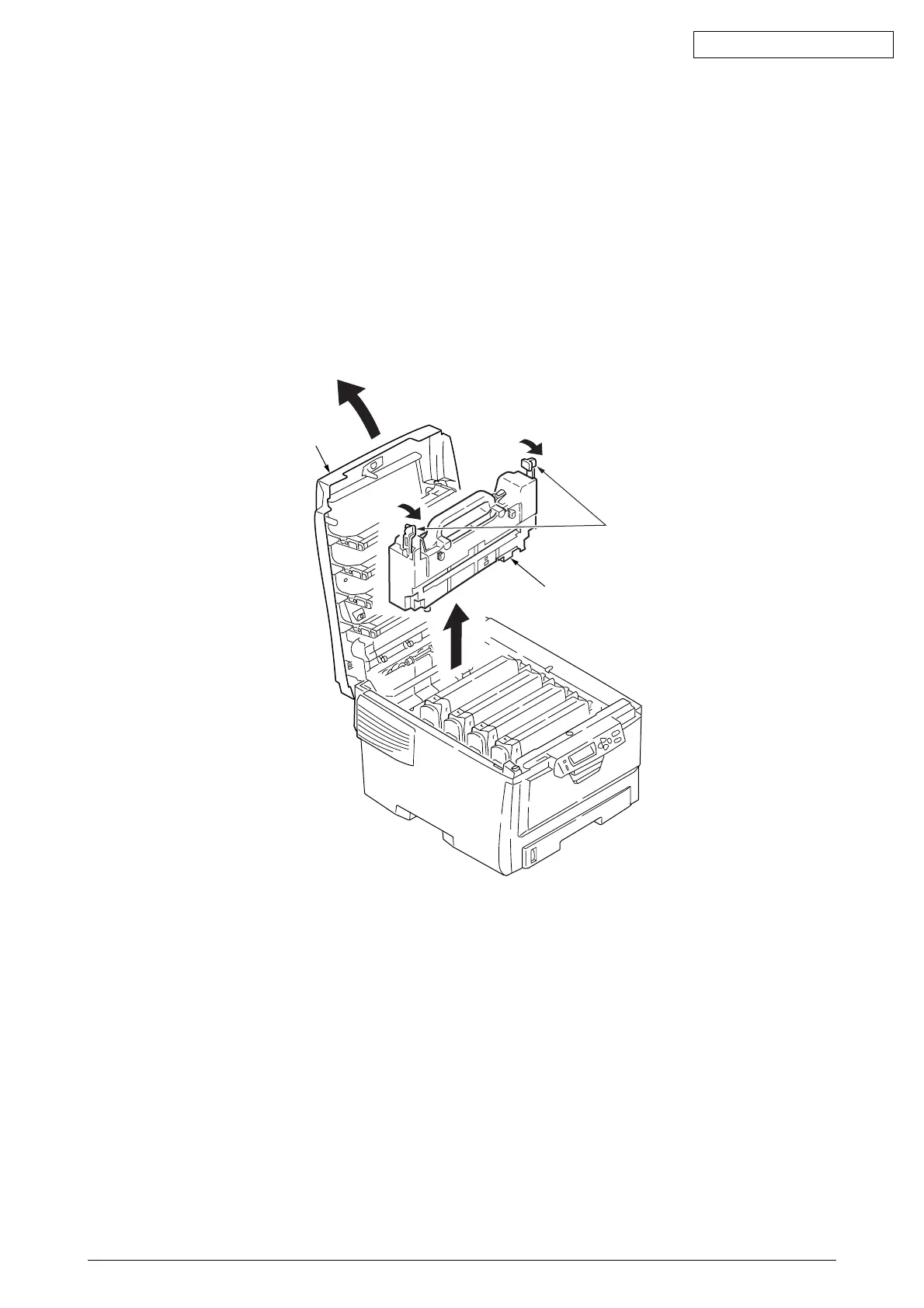

4.2.21
Fuser Unit
(1)
Open the top cover
1
.
(2)
Rise the Fuser-Unit-Lock-Levers (two blue portions)
2
in the directions of the arrows to detach
the fuser unit
3
.
Figure 4-2-21 Fuser Unit
104
