Oki C5200 - Exploded View

42615101TH Rev.8 121 /
Oki Data CONFIDENTIAL
E 42076601 Roller-Assy.-Idle(FD)
1
2
Method of amount of grease
Before 1 assemble at 2, apply small amount of Molycoat(EM-30L) to the sliding
portions(hatching portion) of 1 and 2.(Class S)

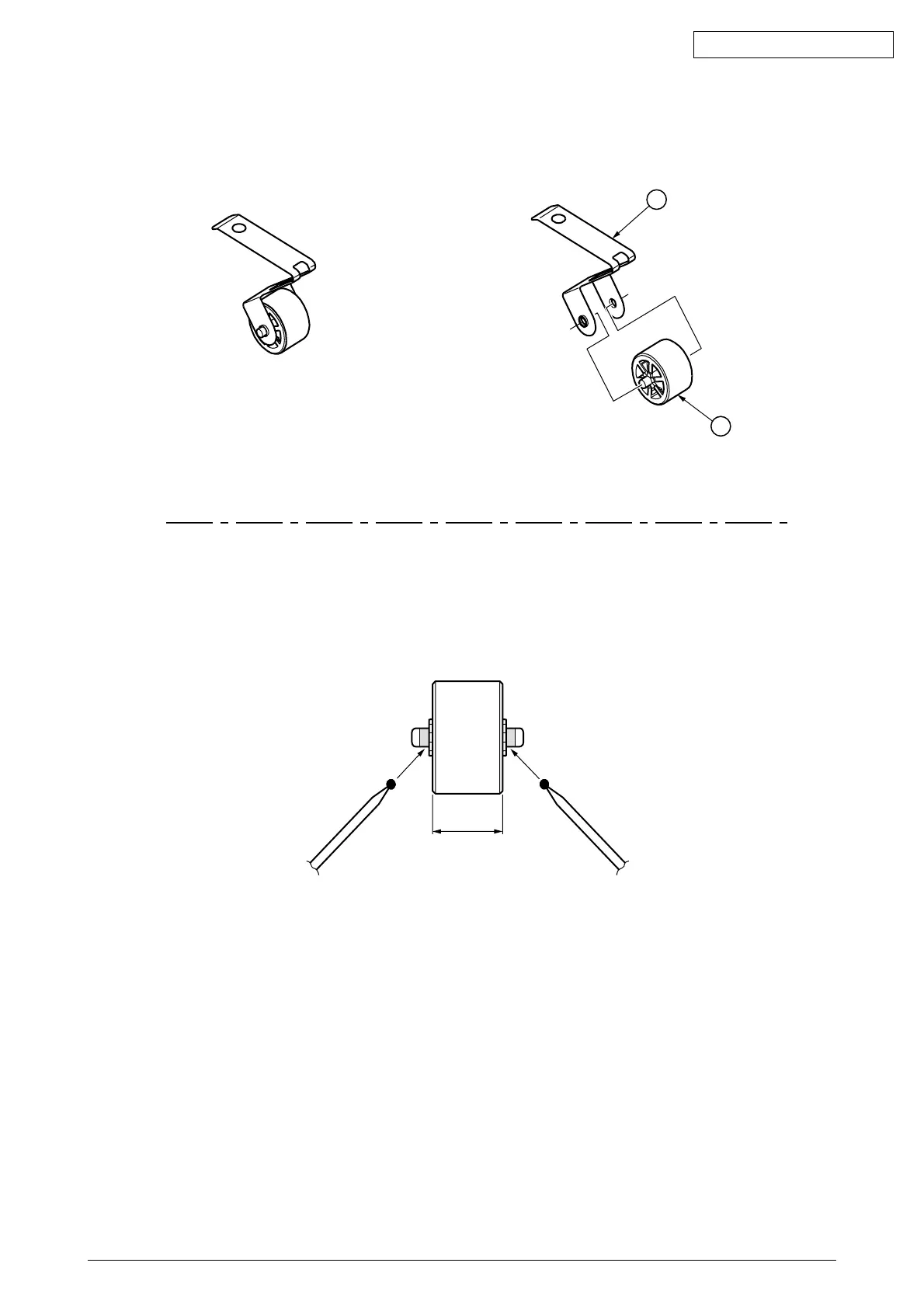

Exploded View
Not allowed to stain the area with grease.
