1.5.2 Universal Serial Bus (USB) Interface Specifications(C5400/
C5200/C5150/C3200n/C5510)
1.5.2.1 USB Interface
(1) Basic specifications
Conforms to USB specification, revision 2.0.
(2) Transmission mode
Full speed (max. 12 Mbps) / High speed (max. 480 Mbps)
(3) Power Control
Self-power device
1.5.2.2 USB Interface Connector and Cable
(1) Connector
Printer side: Type B receptacle
Upstrem port
DUSB-BRA42-T11 (D2) (made by DDK) or equivalent

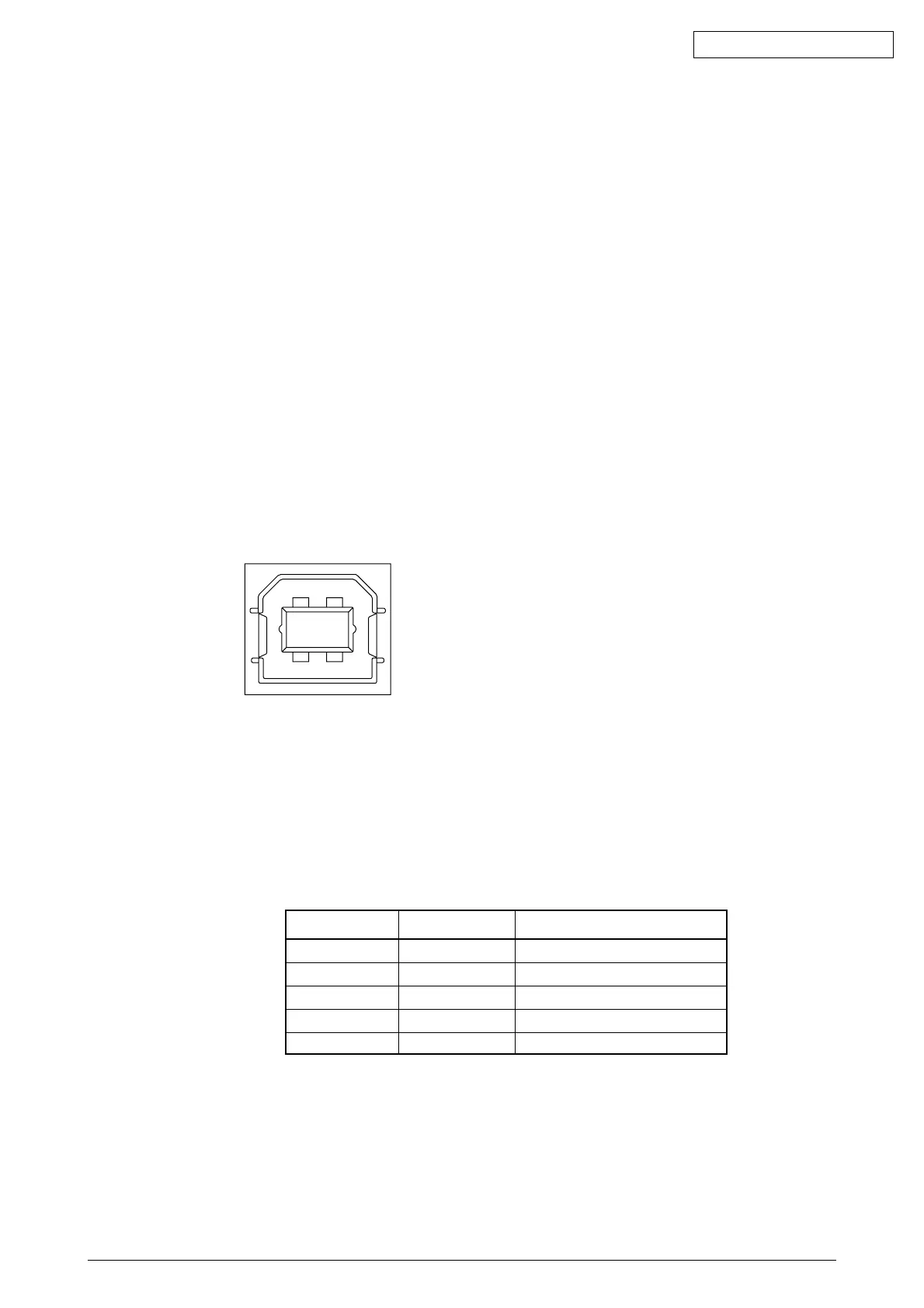

Connector pin layout
2
34
1
Cable side: Type B plug
(2) Cable
Cable length: 5 m max. (cable compliant with USB specification, revision 2.0)
(A shielded cable must be used.)
1.5.2.3 USB Interface Signals
Function
1 Vbus Power Supply (+5V) (red)
2 D - Data transmission (white)
3 D + Data transmission (green)
4 GND Signal ground (black)
Shell Shield
