Oki C5200 User Manual

42615101TH Rev.8 78 /
Oki Data CONFIDENTIAL
1
2
3
Hook B
Hook A
Fig.1
Fig.2
Hook A

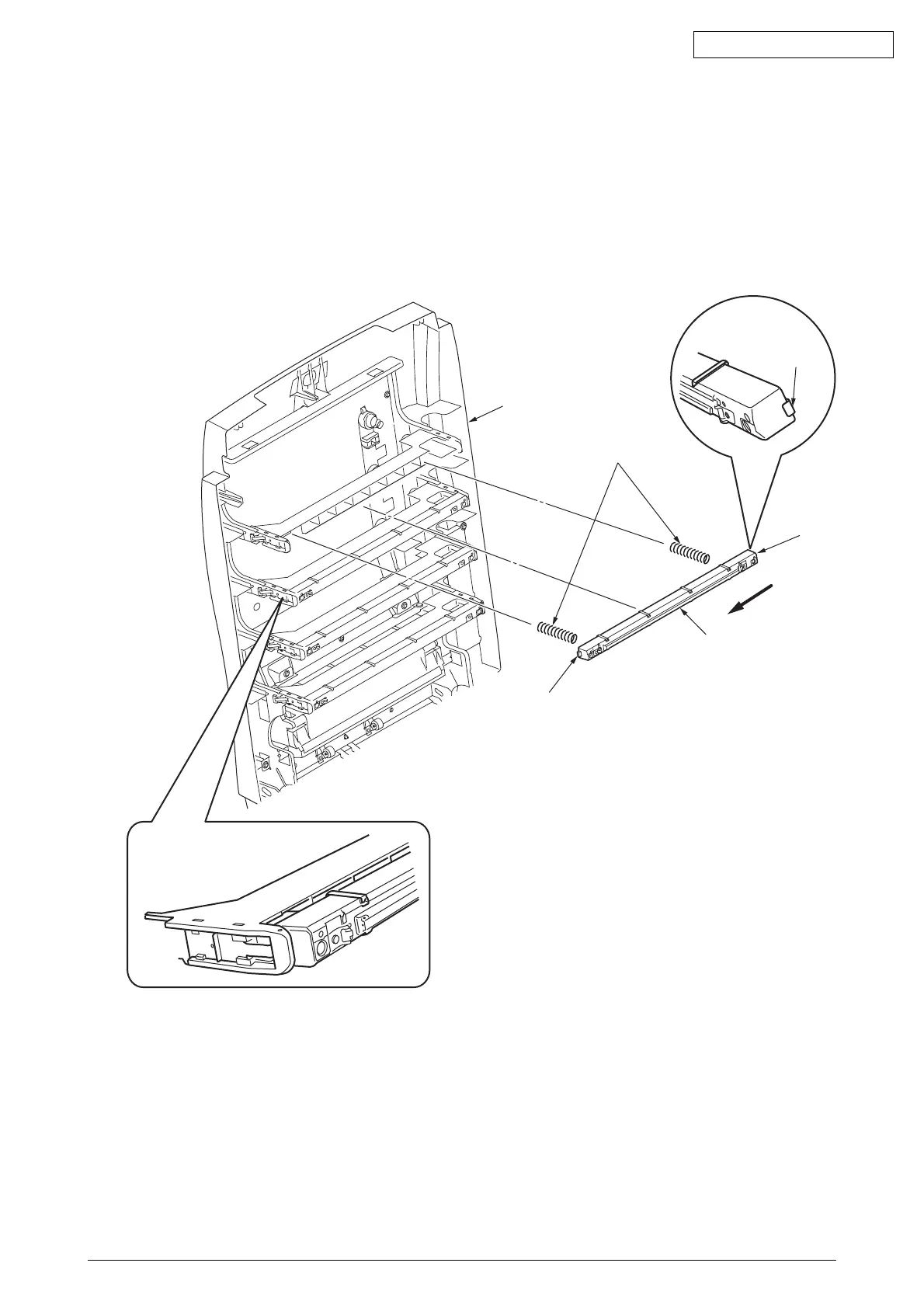

4.2.5 LED Assy / LED Assy-Springs
(1) Open the top cover 1.
(2) As shown in Fig.2, push in the direction of the allow after removing a cable. Then, disengage
the hook A first and the hook B to detach LED Assy 2 (the two springs 3 become detached
together with the LED Assy 2).
Figure 4-2-5 LED Assy / LED Assy-Springs
