42615101TH Rev.8 95 /
Oki Data CONFIDENTIAL
4.2.13 Board-PRT
(1) Remove the right side cover (see section 4.2.2).
(2) Remove the print engine controller-PCB and the controller-PCB (see sections 4.2.6 and
4.2.7).
(3) Remove the film and the low voltage power unit (see section 4.2.12).
(4) Remove the four screws (golden) 1 and the two E-snaps 2 to remove the plate-outer 3.
(Tool No.1, No.8)
(5) Remove the gear-idle-ID-K 4, Y and C 5, each in one piece, and M 6, and the spring 7
of the solenoid.
(6) Unlatch, and remove by sliding the guide assy-side R 8, the assy and detach
the Board-PRT 9 and the nine springs 0.
Note!
When reassembling the board-PRD, do not forget to attach the spring of the solenoid 7.
Latch

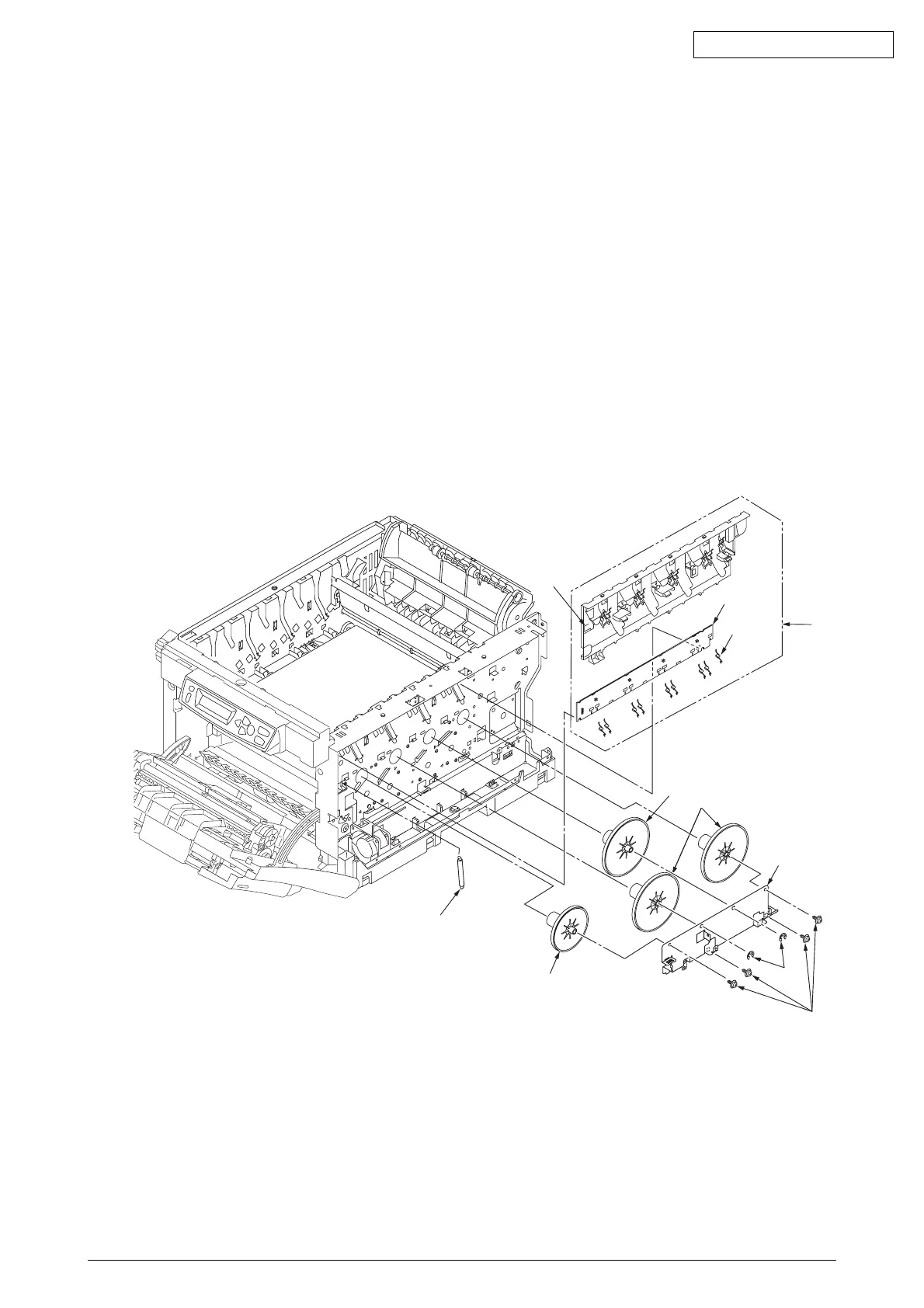

Figure 4-2-13 Board-PRT
To Next Page
