Oki C5200 - Guide-Eject Assy; Color Registration Assy; Board-PRM

42615101TH Rev.8 96 /
Oki Data CONFIDENTIAL
4.2.14 Guide-Eject Assy / Color Registration Assy / Board-PRM
(1) Remove the left side cover, the write side cover, the rear cover and the top cover Assy (see
sections 4.2.1, 4.2.2, 4.2.4 and 4.2.8).
(2) Remove the engine controller PCB, the controller PCB and the film [see sections 4.2.6 and
4.2.7, and step (3) of section 4.2.12].
(3) Unscrew the two screws (golden) 1 to remove the Plate-Heat 2.(Tool No.1)
(4) Remove the two Spring-Torsions 3 and disengage the four claws to remove
the cover-driver 4 with a flat-blade driver (Tool No.3).
(5) Make screw (golden) 5 and connector removal to detach the board-PRM 6.(Tool No.1)
(6) Make two-screw (golden) 7 removal to detach the color registration assy 8.(Tool No.1)
(7) Make three-screw (golden) 9
, the connector 0 and the guide cable A to detach the
guide eject assy
B.(Tool No.1)

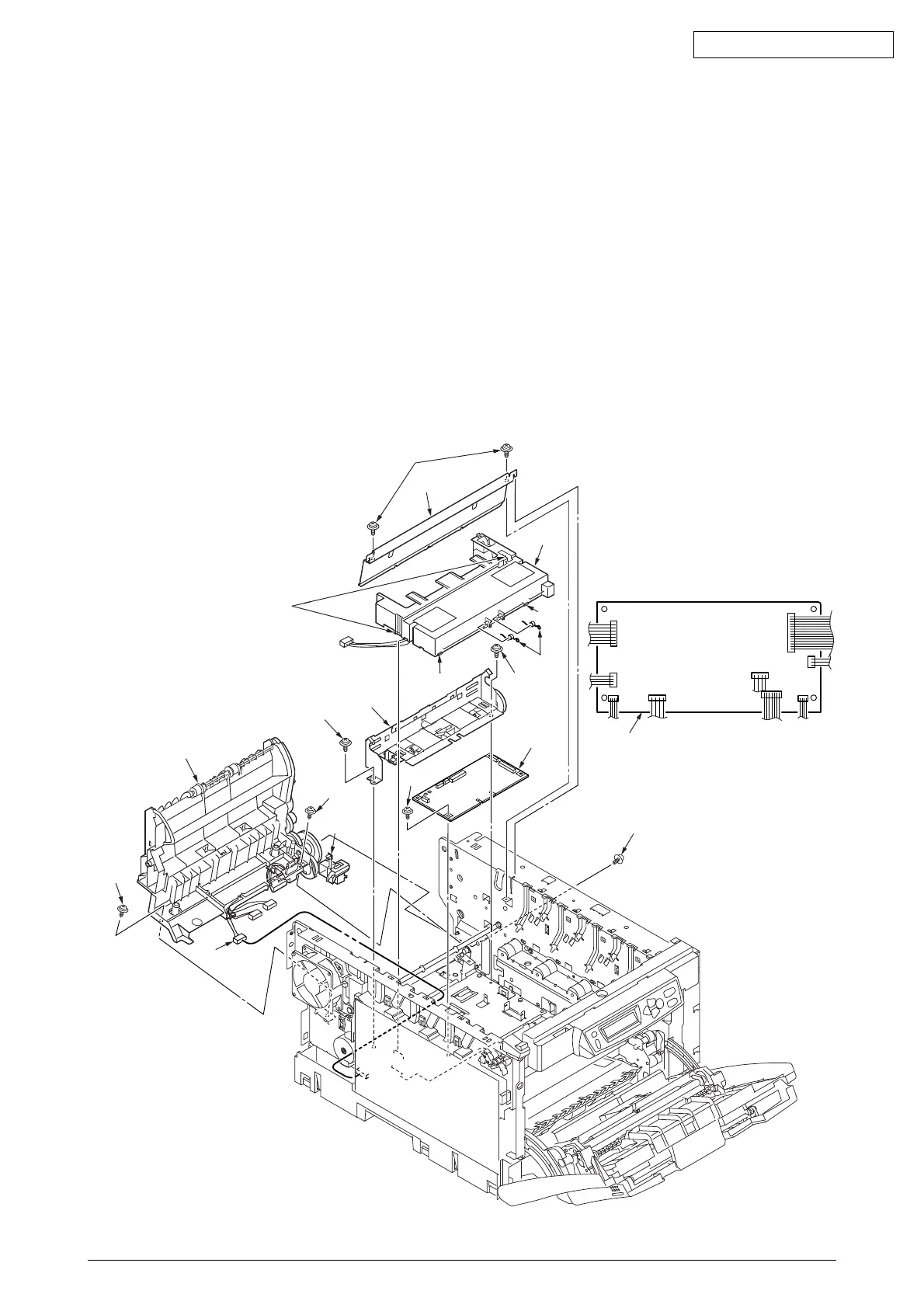

Figure 4-2-14-1 Guide-Eject Assy / Color Registration Assy / Board-PRM
HEAT
POW
BELT
FUSER
LCR
RCR
DENS
EXIT
PUIF
1
2
3
8
6
5
9
9
9
6
A
4
0
7
7
B
Board-PRM
Claws
Claw
Claw
