5.5.2 EEPROM Setting after ARC Board/SPY Board/SPA Board Replacement
When ARC/SPY/SPA board replacement, data in user-used board EEPROM is to be copied onto
new boards using maintenance utility software (to allow new boards to inherit user-defined
information and font installation information). However, contents of the network menu can not be
copied even if this method is applied. When user-used EEPROMs are unusable due to its problem,
new boards, whose destinations and must have been set, are to be used. Also new-EEPROM
destinations must have been set. (Refer to Section 5.5.3)
It is required to set a CU serial number for the both above situations.
1. CU Serial Number Setting
The SAP serial number is applied to the device. The SAP serial number, which is the total 12
digits consisted of two digits for a manufacturing base, two digits for a date of manufacture,
six digits for a manufacture number (Sequence No.) and two digits for a revision number, is
shown in the top of the serial number label.
(1) Other than for OEL
• The CU serial number is
10-digit number without 2 digits for a revision number of SAP
serial number 12 digits.
• Caution is required since the menu setting in CU is reset when setting a CU serial
number (it is returned to the default.)(Refer to the maintenance utility operation manual.)
• In “Serial Number Information Setting” of “CU board setting” of the maintenance utility,
select “CU Serial Number” in “Select Printer Serial Number” and “Display a serial
number only” for [Display Mode] (the default.)
• Input a 10-digit number when specifying a CU serial number. (it is also 10 digits when it
is read out.)
Set 10-digit figure of Serial No itself.
Set "AE01234567" in the setting screen.
Revision
AB CMade in
A E 0 1 2 3 4 5 6 7 8 9

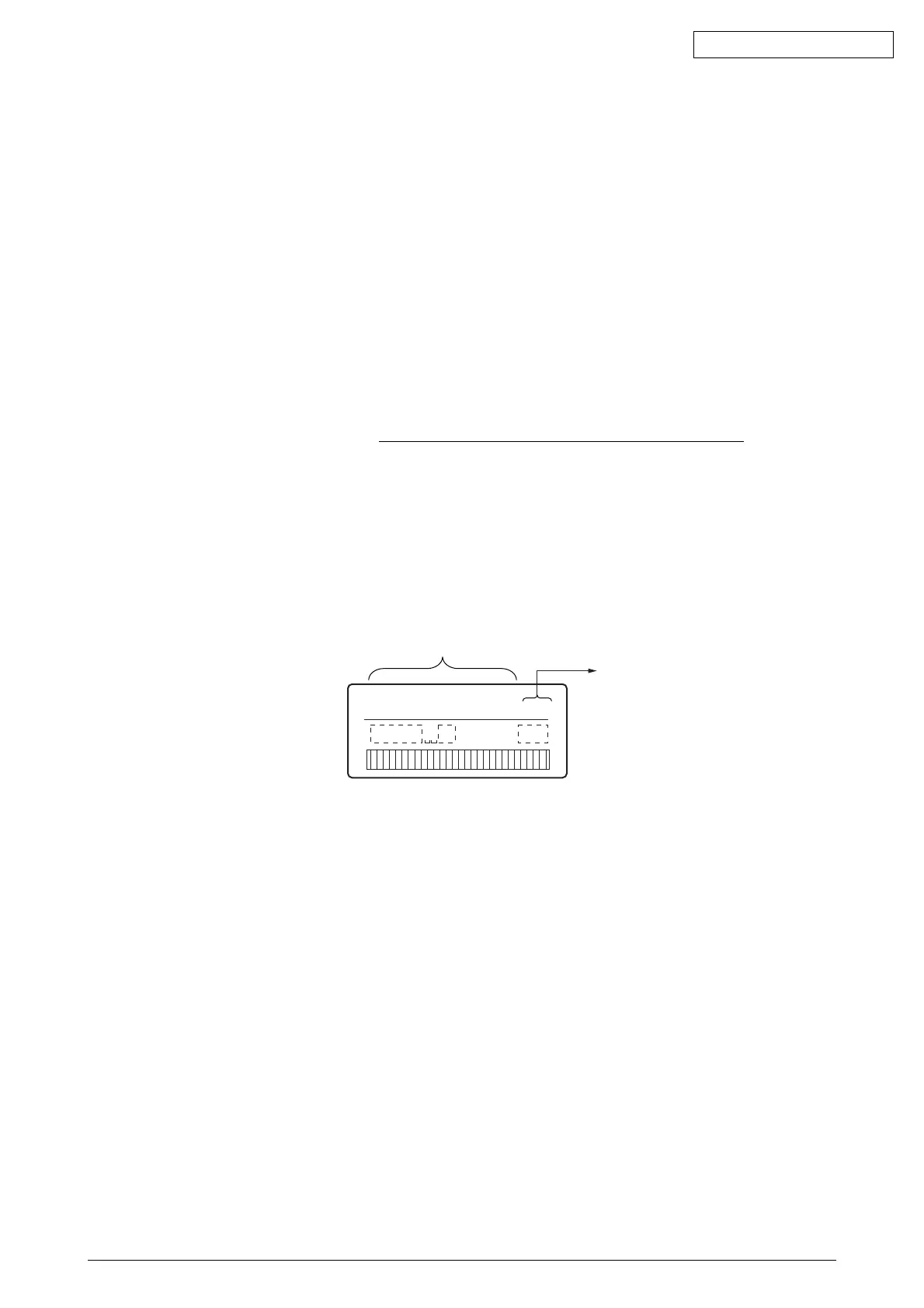

Figure of Serial No. label image
• CU serial number is outputted in the Printer Serial Number: field of the header in
MenuMap. Therefore, confirmation after rewriting a CU serial number is implemented by
MenuMap print.
