Oki C5200 - Controller PCB

42615101TH Rev.8 79 /
Oki Data CONFIDENTIAL
4.2.6 Controller PCB
C5400
(1) Remove the Print Engine Controller PCB (see section 4.2.7).
(2) Remove the screw 1 and then the head cable 2.(Tool No.1)
(3) Remove the eight screws (golden) 3, then detach the controller PCB 4(SPA-4 PCB).
(Tool No.1)

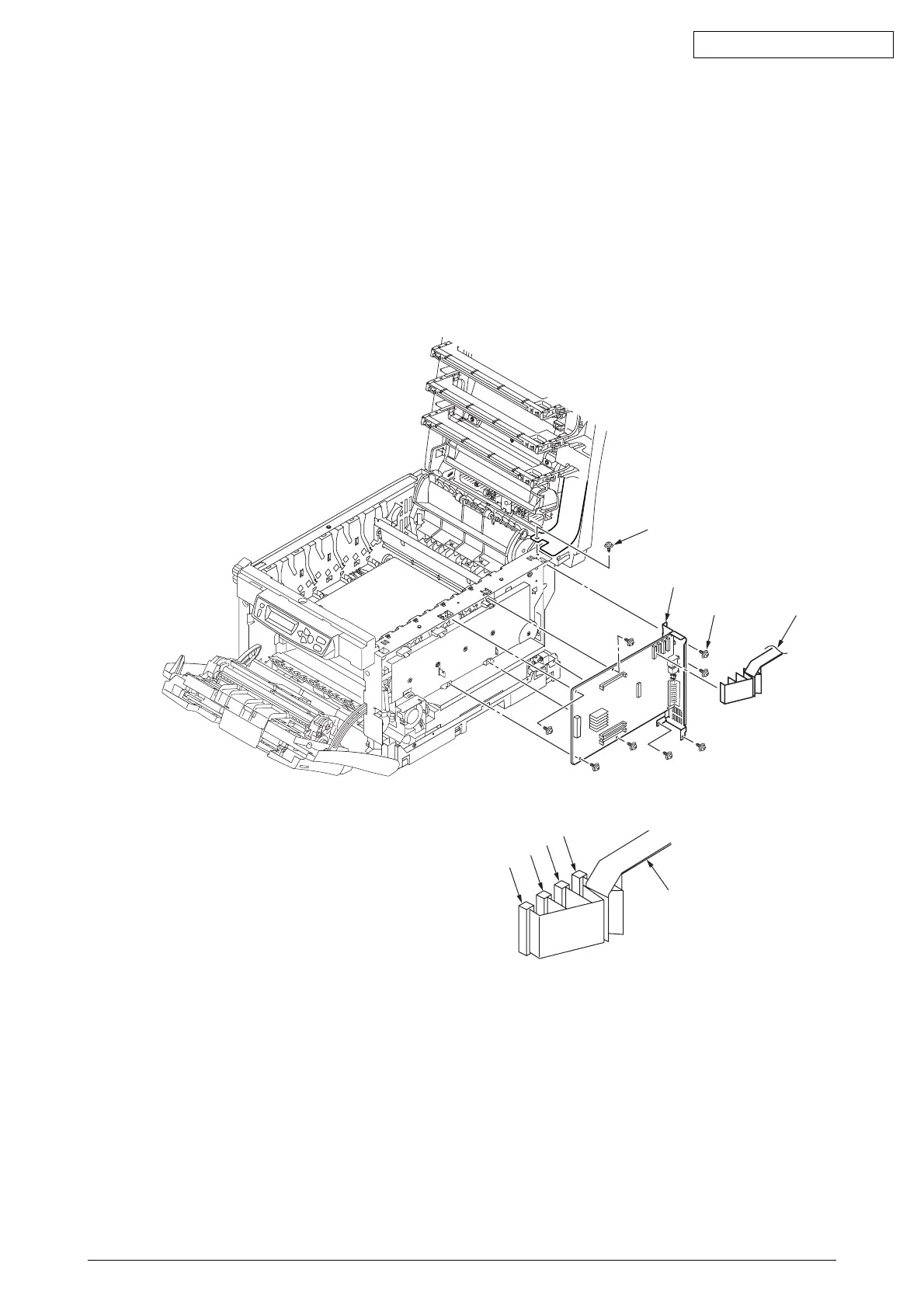

Figure 4-2-6-1 Controller PCB (C5400)
C
2
M
Y
K
1
2
4
3
× 8
