Oki C5200 User Manual

42615101TH Rev.8 93 /
Oki Data CONFIDENTIAL
4.2.11 Board-PRP(C5400/C5200/C5150/C3200n)/Board-
PRO(C5510) / Top Cover Handle
(1) Remove the Control Panel Assy (see section 4.2.10).
(2) As shown in Fig.2, disengage the two claws A of the lover-lock 2 to remove the Frame-OP 1,
and remove the lever lock 2 and the spring-compression 3.
(3) Disengage the two claws B of the Cover-Assy-OP 4 with inserting a flat- blade driver (Tool
No.3) to remove the Cover-Assy-OP 4 and the sprint-torsions 5.
(4) As shown in Fig.3, inserting a flat- blade driver (Tool No.3) to the two hooks of
the Cover-Assy-OP 4, detach the Board-PRP(C5400/C5200/
C5150/C3200n)/Board-PRO(C5510) 6 and the cable 7.
2
5
6
7
3
1
4
Claws A
Claws B
Hook
Claw A
Fig.1
Fig.2
Fig.3

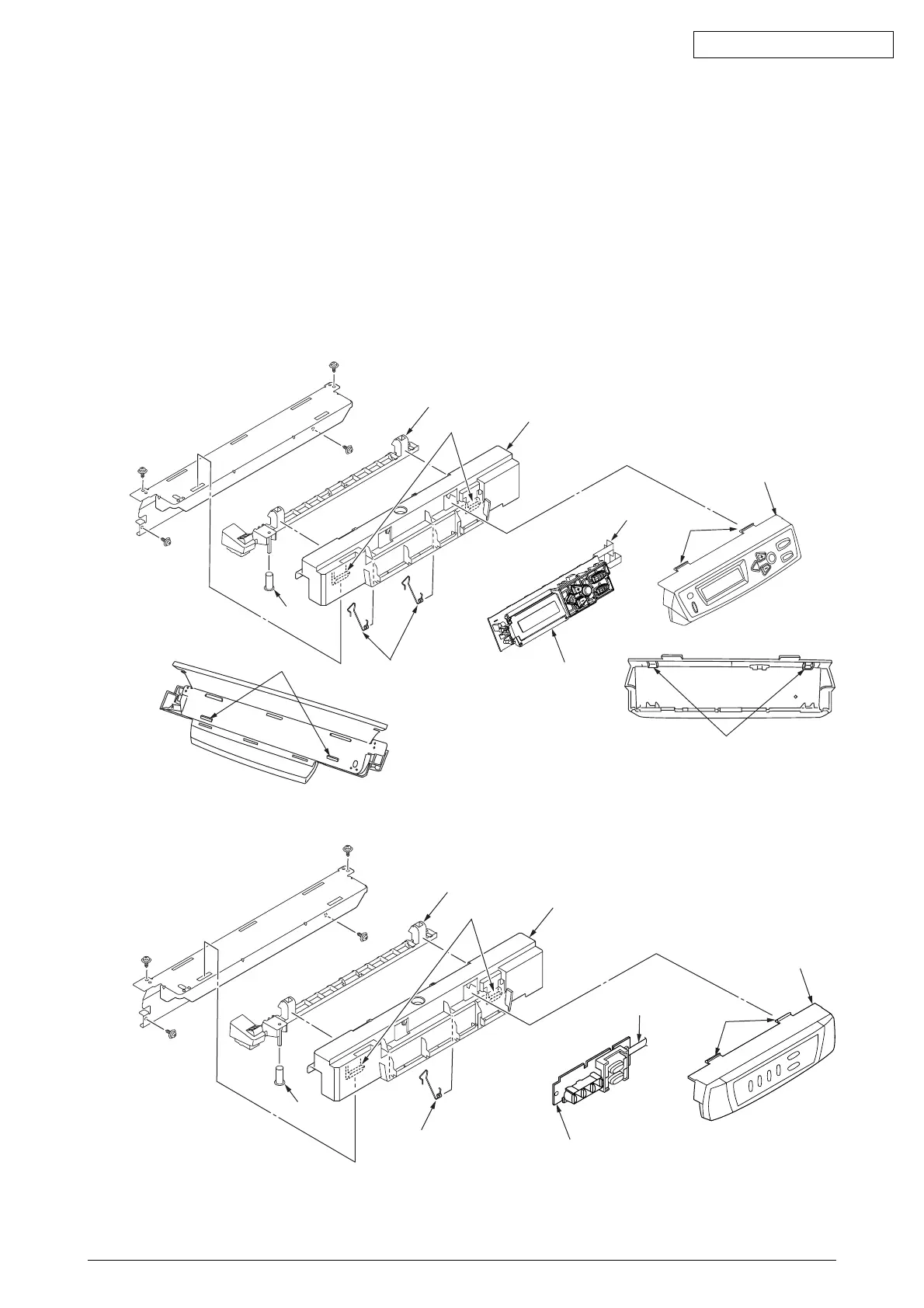

Figure 4-2-11-1 Board-PRP (C5400/C5200/C5150/C3200n) / Top Cover Handle
Figure 4-2-11-2 Board-PRO (C5510) / Top Cover Handle
2
5
6
7
3
1
4
Claws A
Claws B
