42615101TH Rev.8
97 /
Oki Data CONFIDENTIAL

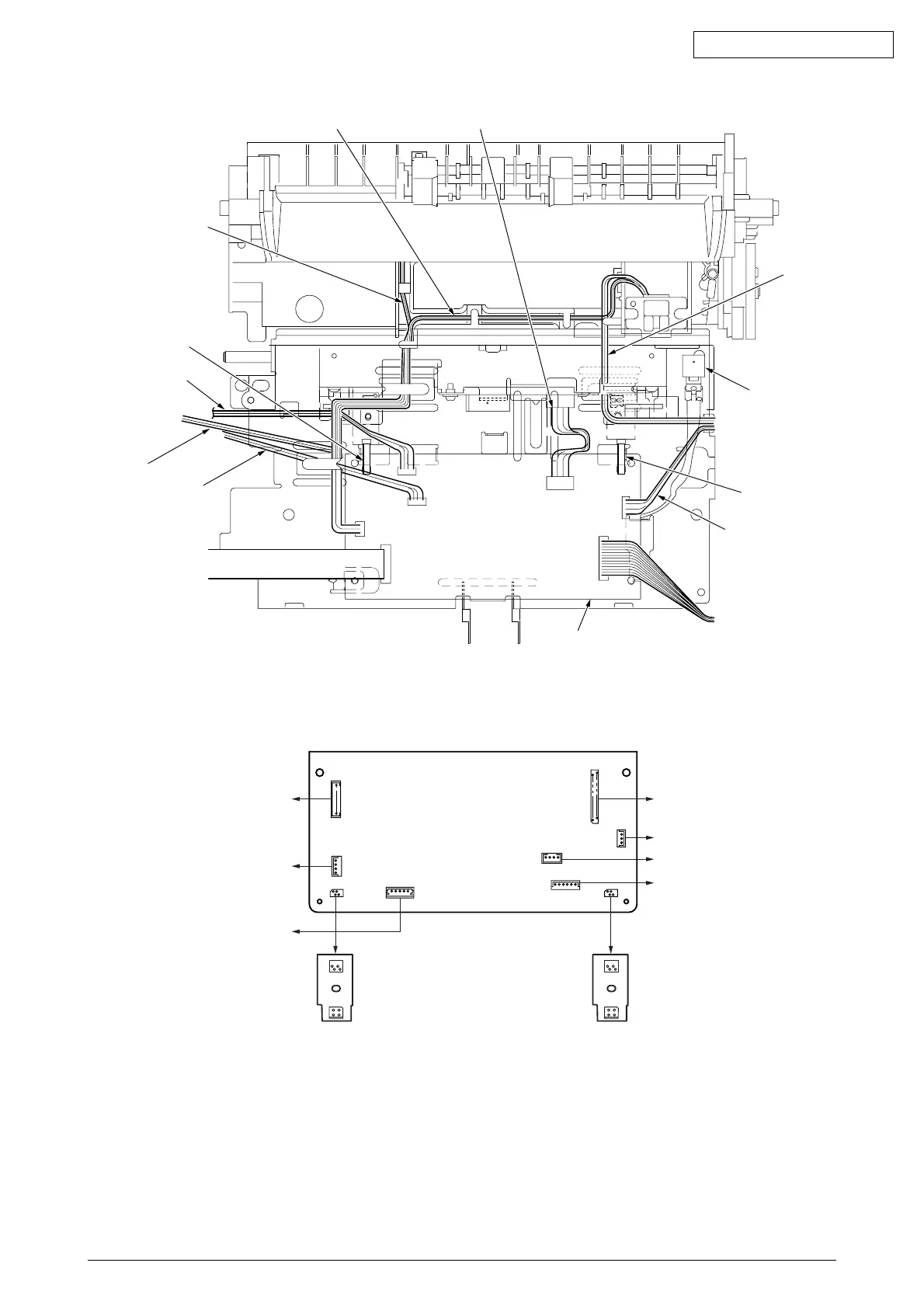

Figure 4-2-14-2 Board-PRM Cable Route
POW
HEAT
BELT
LCR
RCR
DENS
FUSER
PUIF
EXIT
Heater-thermistor & Fuse cut-out
EXIT sensor
Color registration
sensor
Belt-motor
Belt-thermistor
Belt thermistor
Flame-thermistor
Density sensor
Color registration
sensor
Heater-AC
Heater-moter
Board-PRM
POW
DENS
RCR
FUSER
LCR
HEAT
PUIF
EXIT
BELT
PRN PCB
DRPOW connector
Driver Relay PCB
(PRM PCB)
Right color adjustment sensor PCB
(PRC PCB)
Left color adjustment sensor PCB
(PRC PCB)
PRN PCB
DRSIG connector
Exit sensor
Belt motor
Fuser unit I/F connector
Fuser motor
Density sensor
SNS
CN
SNS
CN
Figure 4-2-14-3 Board-PRM Connection Figure
