42615101TH Rev.8
120 /
Oki Data CONFIDENTIAL
D

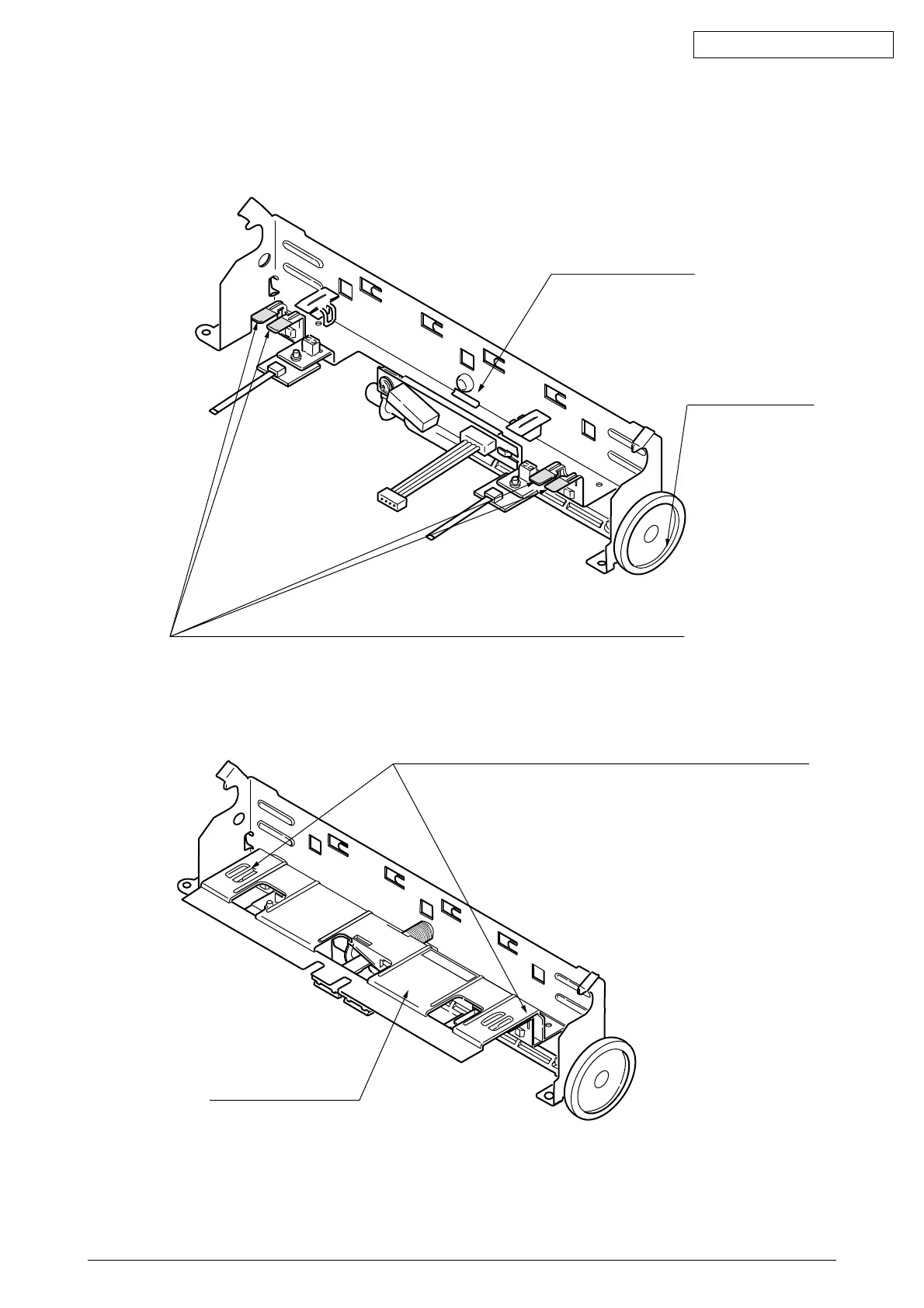

42626501 Sensor-Assy-Color-Regist
Plate-Sensor-C
.Regist
Cov
er-Sensor-C.Regist
Apply a small amount of Molycoat(ME-30L) to the hatching areas(4 places)
Molycoat shall not adhere to the surf
ace of Cover-Sensor-C
.Regist
Shaft-Cov
er-Sensor
EM-30L Class A
119
