F 42077801 Roller-Assy.-BIAS(FU)L
1
1
1
5
4
2
2
3
3

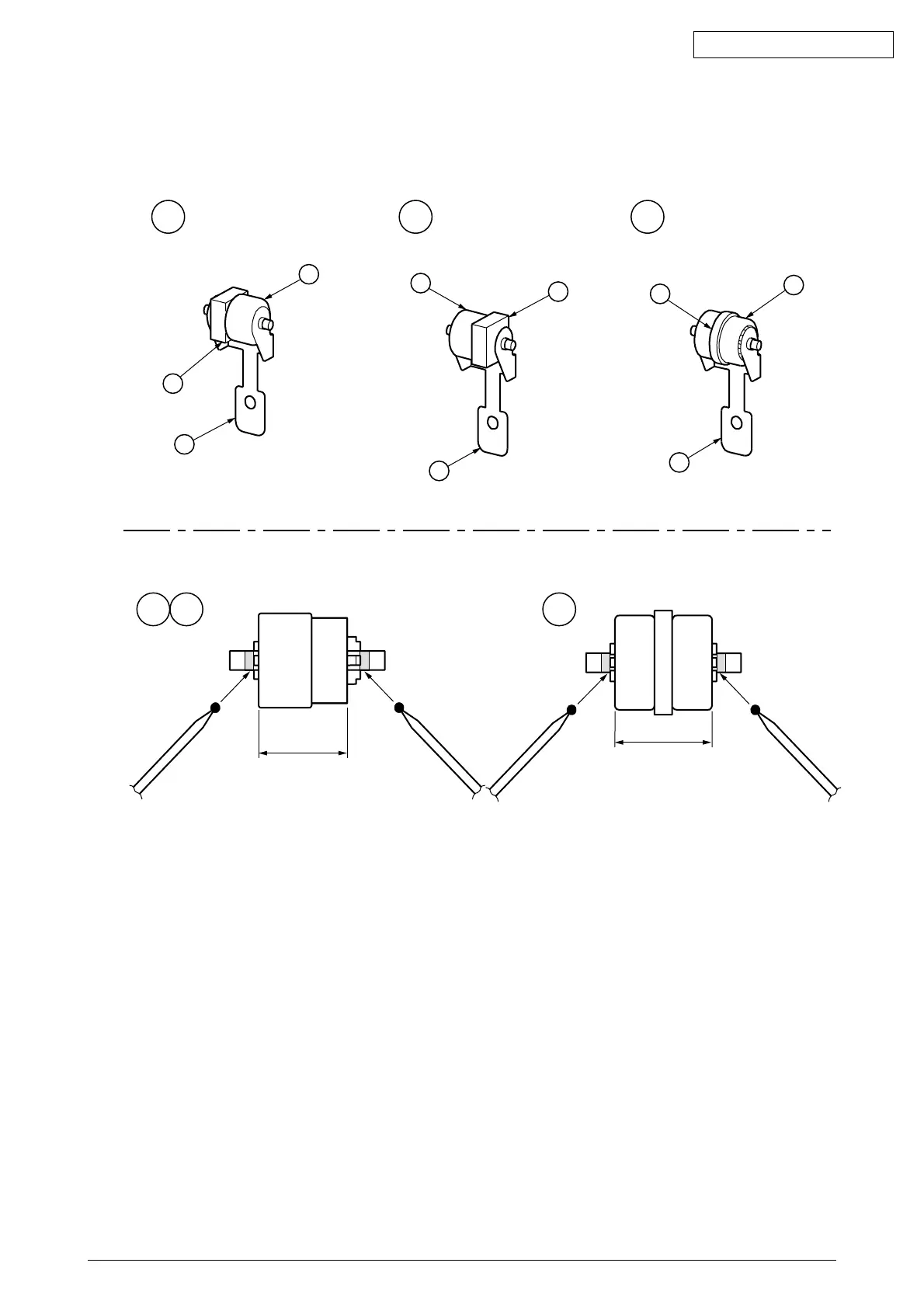

No.01
Left-Side
No.01 No.02 No.03
No.02
Reft-Side
No.03
Center-Side
Method of amount of grease
After 2 or 4 assemble at 3 or 5, apply small amount of Molycoat(EM-30L) to the sliding
portions(hatching portion) of 2 and 4.(Class S)
Not allowed to stain the area with grease. Not allowed to stain the area with grease.
