• When a PU serial number is specified, input 11- digit number with “0” at the top (it is 10
digits when it is read out.)
Enter an 11 digit number added with a half-width zero before the 10 digit number
excluding the 2 digits standing for the revision, indicated for the conceptual diagram
below the “PU Serial Number Setting” screen.
[Other than for OEL]
Add one-byte 0 to the top of 10-digit figure of 12-digit SAP serial number to set.
Set "0AE01234567" in the setting screen of PU serial number.
Revision
AB CMade in
A E 0 1 2 3 4 5 6 7 8 9
[For OEL]

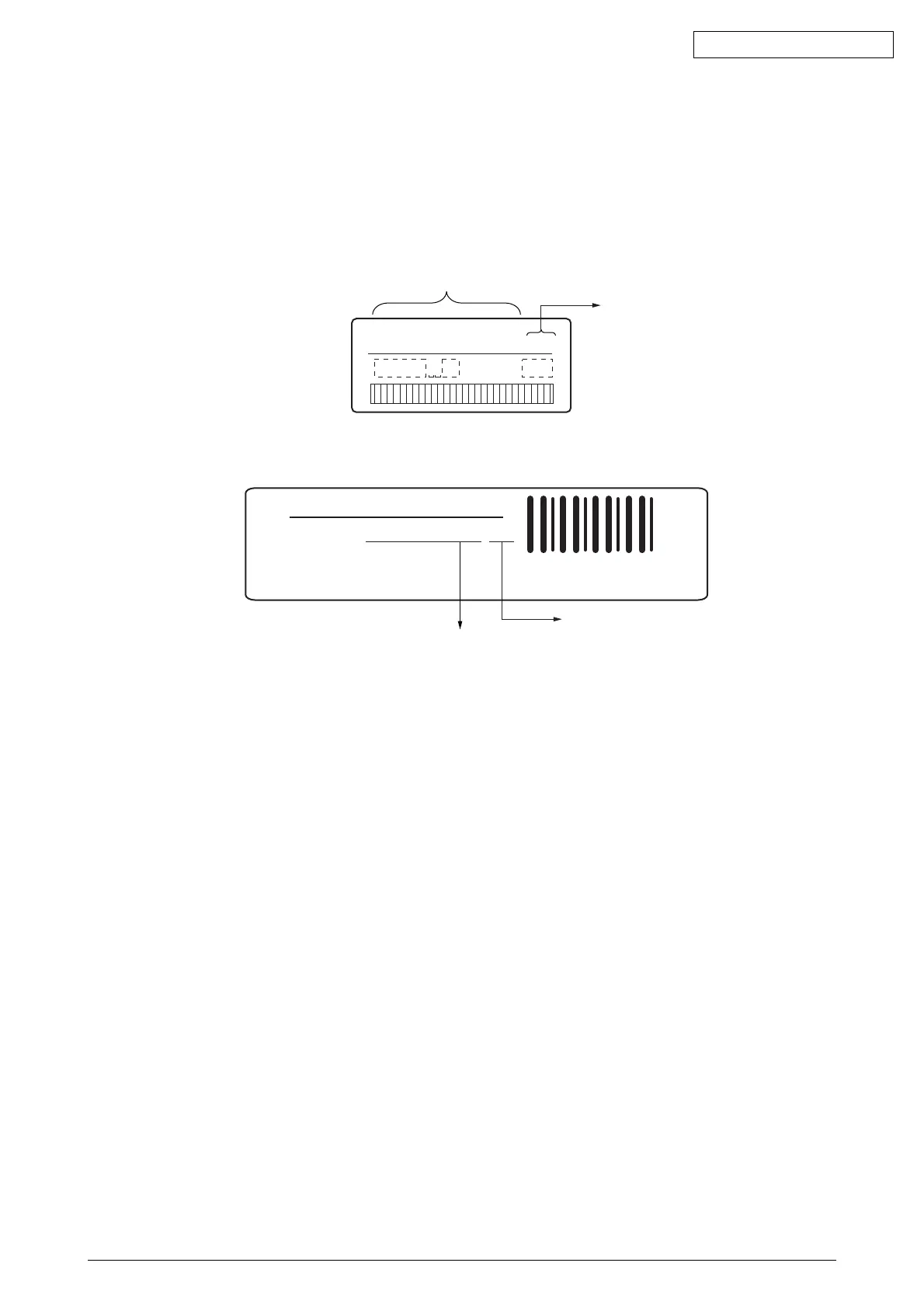

Figure of Serial No. label image
Add one-byte 0 to the top of 10-digit figure of Lot.NO.
Set "0AE47027880" in the setting screen.
Revision
Ser.NO. 4AEL4011702K
Lot.NO. AE47027880 A0
Made in Thailand
Configured in UK
• The PU serial number is not outputted in the Printer Serial Number field of the header in
MenuMap. The CU serial number is outputted in this field. Therefore, confirmation after
rewriting the PU serial number is implemented by reading out the PU serial number from
the maintenance utility again.
• In addition, as for OEL, PU serial number is outputted in “Lot Number:” of the last line in
the header of Menu Map after a configuration in UK factory. [Refer to 5.5.2-1.(2)]
• When the PU serial number is read out, 10- digit number is read out and displayed.
(2) Switching to the Shipping Mode
When replacing an engine control board with a new one, it is the Factory Mode. Therefore,
it is necessary to Switch to the Shipping Mode.
• Switch in the “Section 2.4.1.1.2.2 Factory/Shipping Mode” screen of “Section 2.4.1.1.2
PU board setting function” in Maintenance Utility of PU board setting function.
Figure of Serial No. label image (labeled in UK Factory)
To Next Page
