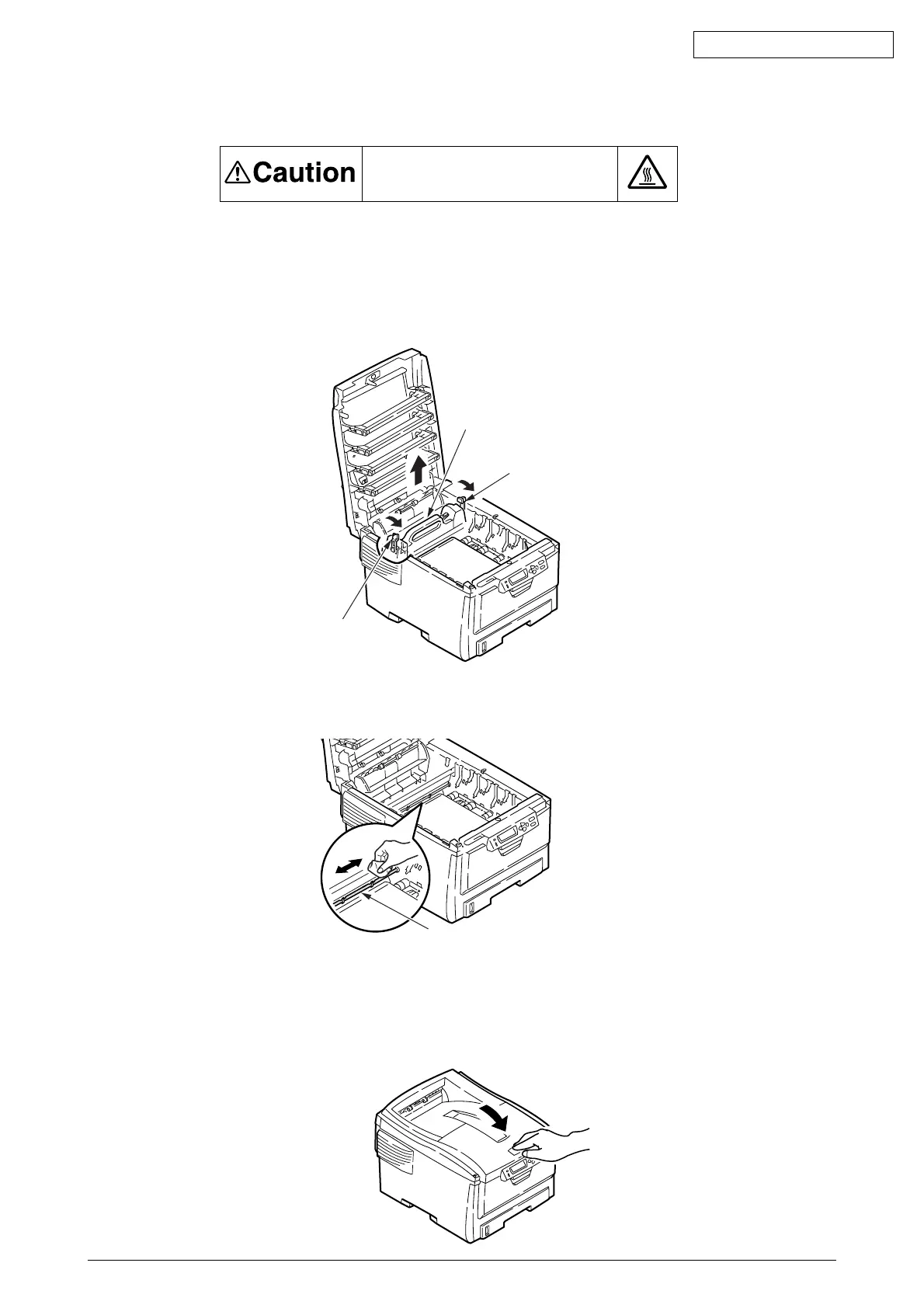

(4) Remove the fuser unit.
The fuser unit is extremely hot. Be careful not to touch it. If the fuser
unit is hot, do not try yourself to clear paper but wait until the fuser
unit becomes cool.
Personal injuries may occur.
1. Move up the fuser unit locking levers (two blue levers) in the direction of the arrows.
2. Hold the handle and take out the fuser unit.
Fuser unit
locking lever
(blue)
Handle
Fuser unit
locking lever
(blue)
(5) Clean the metal shaft with an LED lens cleaner, soft cloth, or tissues.
Shaft
(6) Reinstall the fuser unit.
Read Replacing the Fuser Unit on page 198 for details.
(7) Reinstall the four image drum cartridges gently.
(8) Close the top cover.
