Oki Data CONFIDENTIAL
42615101TH Rev.8 201 /

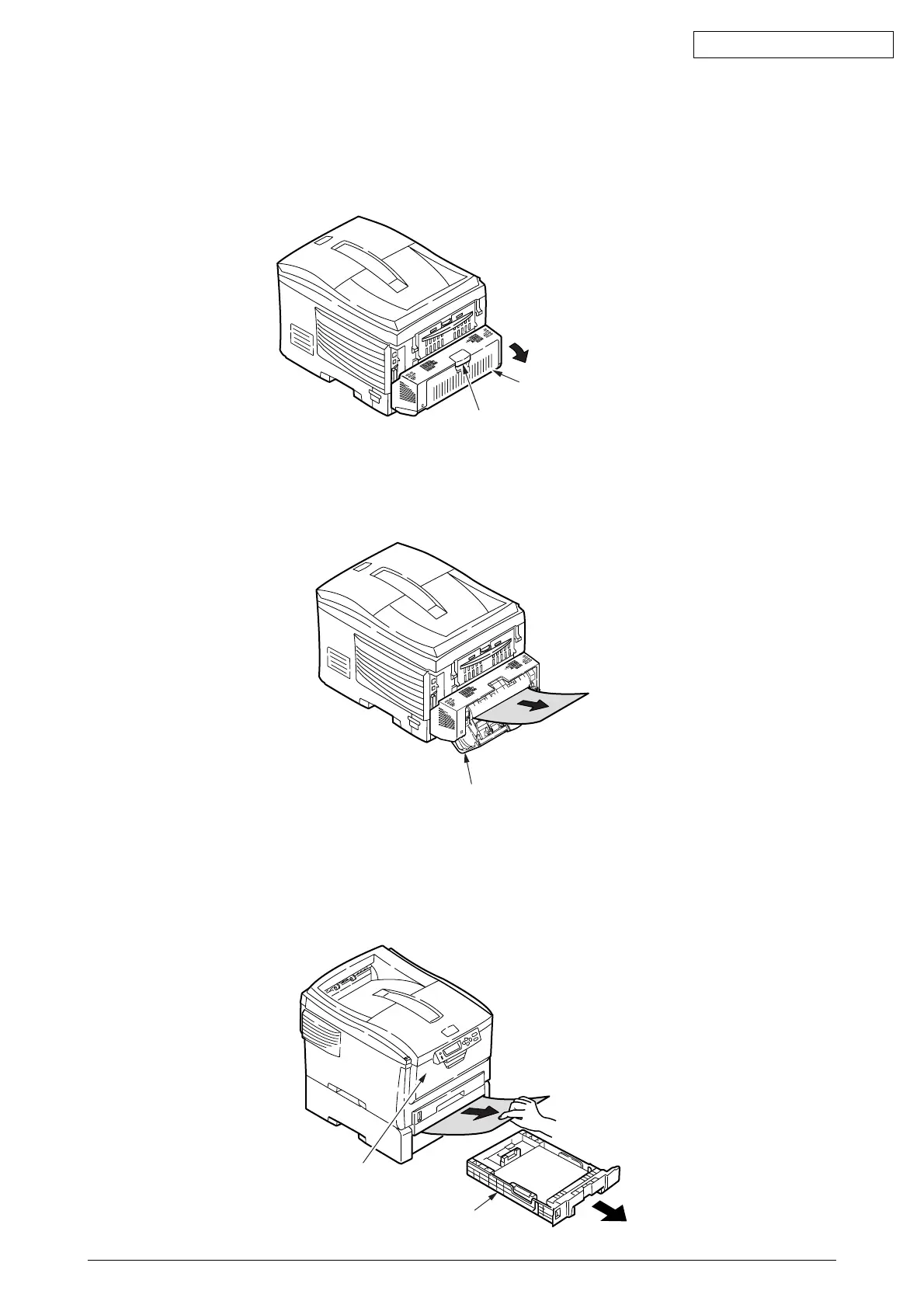

JAM RELEASE METHOD 3
DUPLEX PRINTER UNIT PART (OPTION, CODE: 370, 371, 373)
(1) Press the jam release lever of the duplex printer unit to open the duplex printer unit cover.
Jam release lever
Duplex unit cover
(2) Remove the jammed paper. If you don't see the paper, close the duplex printer unit cover.
Then the jammed paper is ejected automatically.
Note!
Turn off the printer before uninstalling the duplex printer unit.
Duplex unit cover
JAM RELEASE METHOD 4
SECOND TRAY UNIT PART (OPTION, CODE: 391, 392)
(1) Pull out the paper cassette of the second tray unit to remove the jammed paper.
(2) After clearing the jammed paper, squeeze the handle under the operator panel and open
and close the front cover.
Paper cassette
Front cover
To Next Page
