Install Image Drum Cartridges

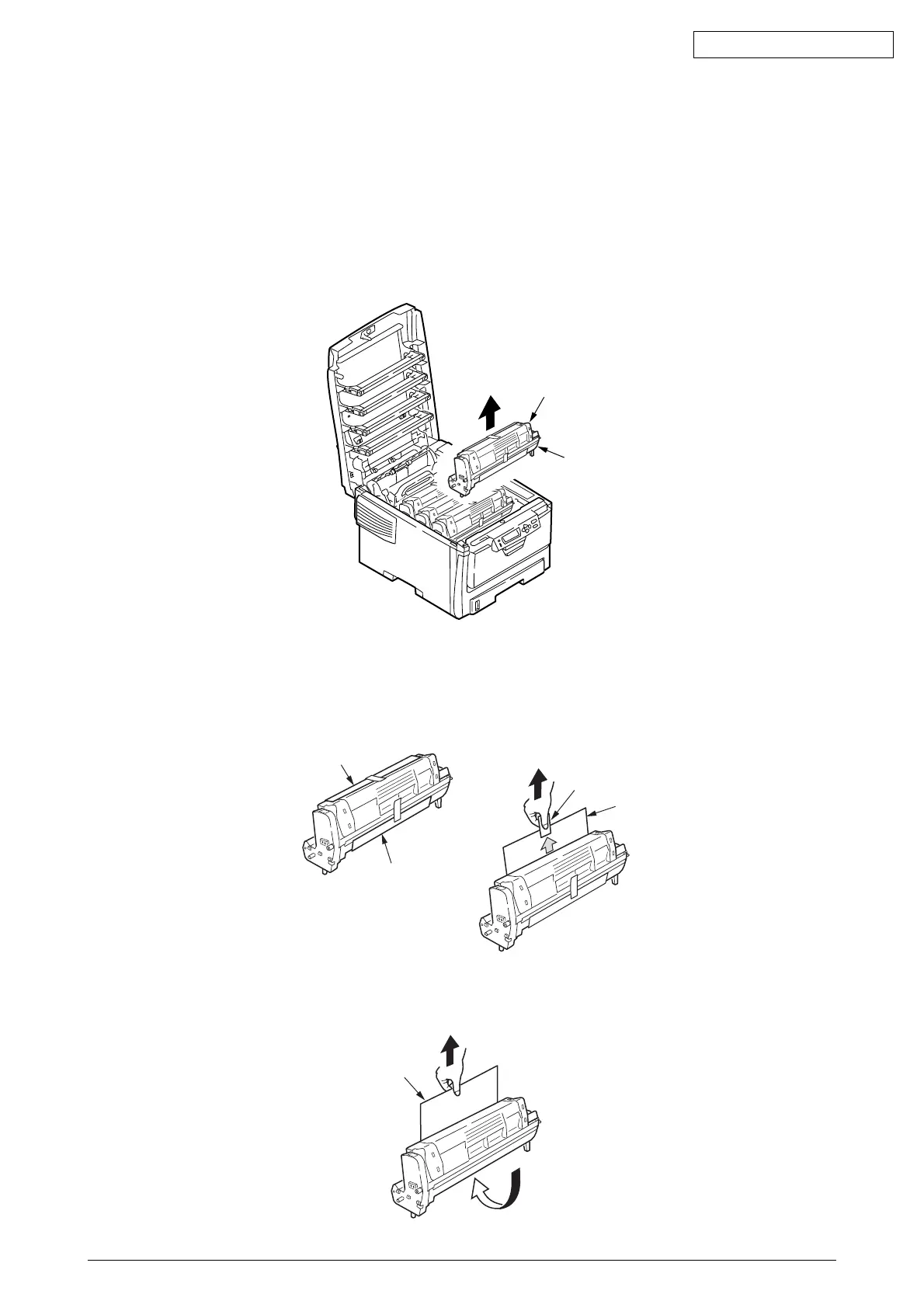

(1) Take image cartridges (Four cartridges) with toner cartridges softly.
Note!
• Take sufficient care in handling the image drums (green cylindrical parts), which are
very sensitive.
• Do not expose the image drum cartridges to direct sunlight, strong light (of about 1500
lux. or more) or, for five minutes or more, room light.
• Make sure that a blue lever of the toner cartridge should not be moved here.
Toner Cartridge
Image Drum Cartridge
(2) Put an image cartridge on a flat desk and remove tape holding a protection sheet. Then,
pull it in the direction of an arrow.
Note!
Make sure to work with an image drum putting on a desk.
(3) Pull protective sheet 2 in the arrow direction from image drum cartridge.
Protective sheet 1
Protective sheet 2
Tape
Protective sheet 1
Protective sheet 2
