42615101TH Rev.8 61 /
Oki Data CONFIDENTIAL

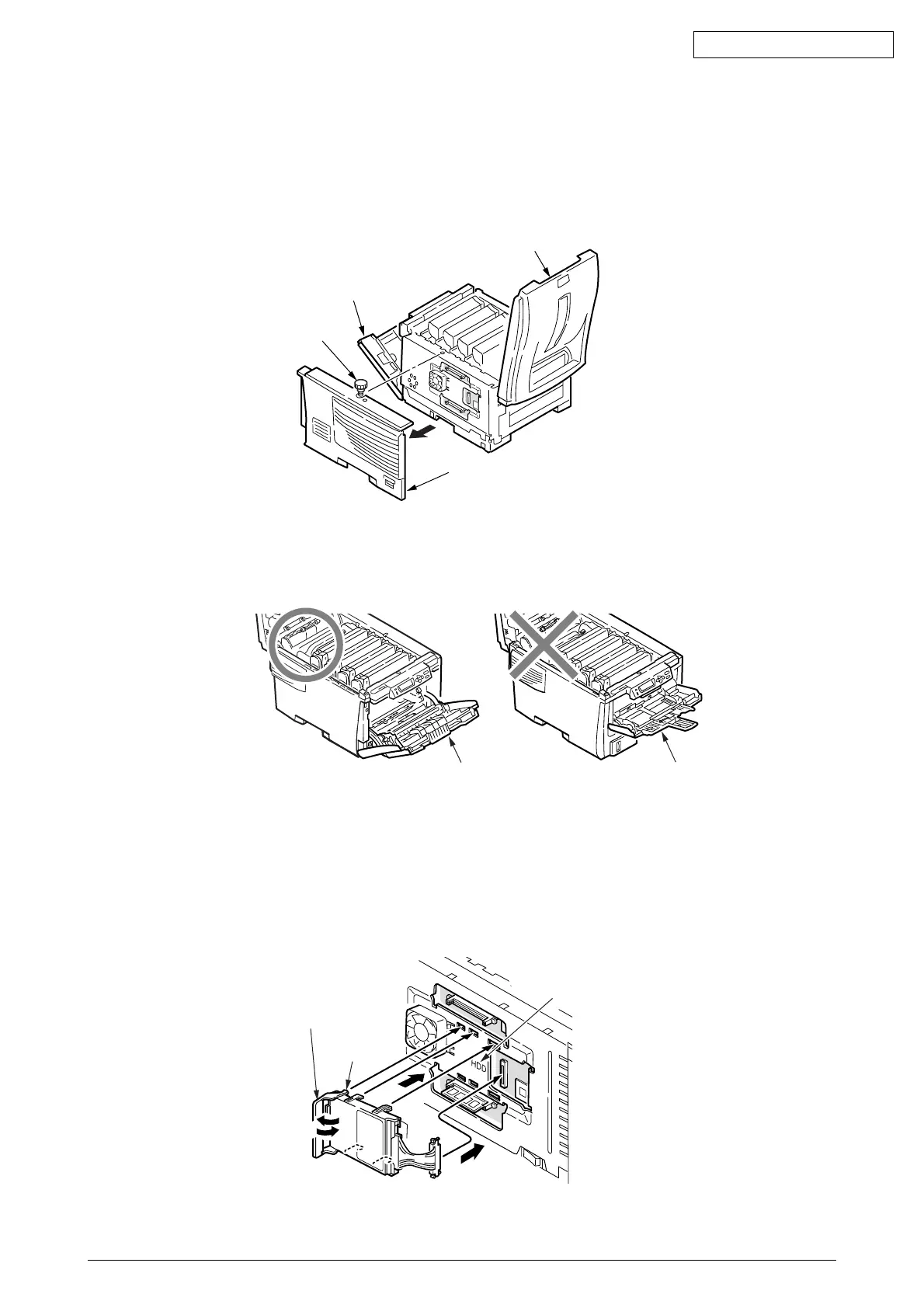

Detach the side cover
(1) Slacken a screw.
(2) Detach the side cover.
Slide out lifting the top part of the side cover.
Front cover
Side cover
Top cover
Screw
2
1
Memo
Make sure the front cover is open when the side cover is not detached.
Multi-purpose tray
Front cover
[The condition where the front cover is open] [The condition where Multi-purpose tray is open]
Install an internal hard disk
(1) Pull a lock lever of the internal hard disk.
(2) Insert the cable of the internal hard disk into the connector on the control base.
(3) Sets the internal hard disk to fit the line displayed in "HDD".
(4) Fold the lock lever until you hear it click.
1
2
3
Click
Lock lever
4
Displayed "HDD"
To Next Page
