42615101TH Rev.8 85 /
Oki Data CONFIDENTIAL
2
1
1
2
POWER
DRSIG
HVDLT
DRPOW
HOPKID HCL
FAN
2ND
DUP
COLORID
FSNS
SSNS
PE
OPE
Print engine
controller PCB
C5200/C5150/C3200n
(1) Remove the plate-shield Assy (GDI) [see section 4.2.6, steps (1) to (3)].
(2) Remove the three screws (golden) 1 and all the connectors to detach
the print engine controller PCB 2.(Tool No.1)

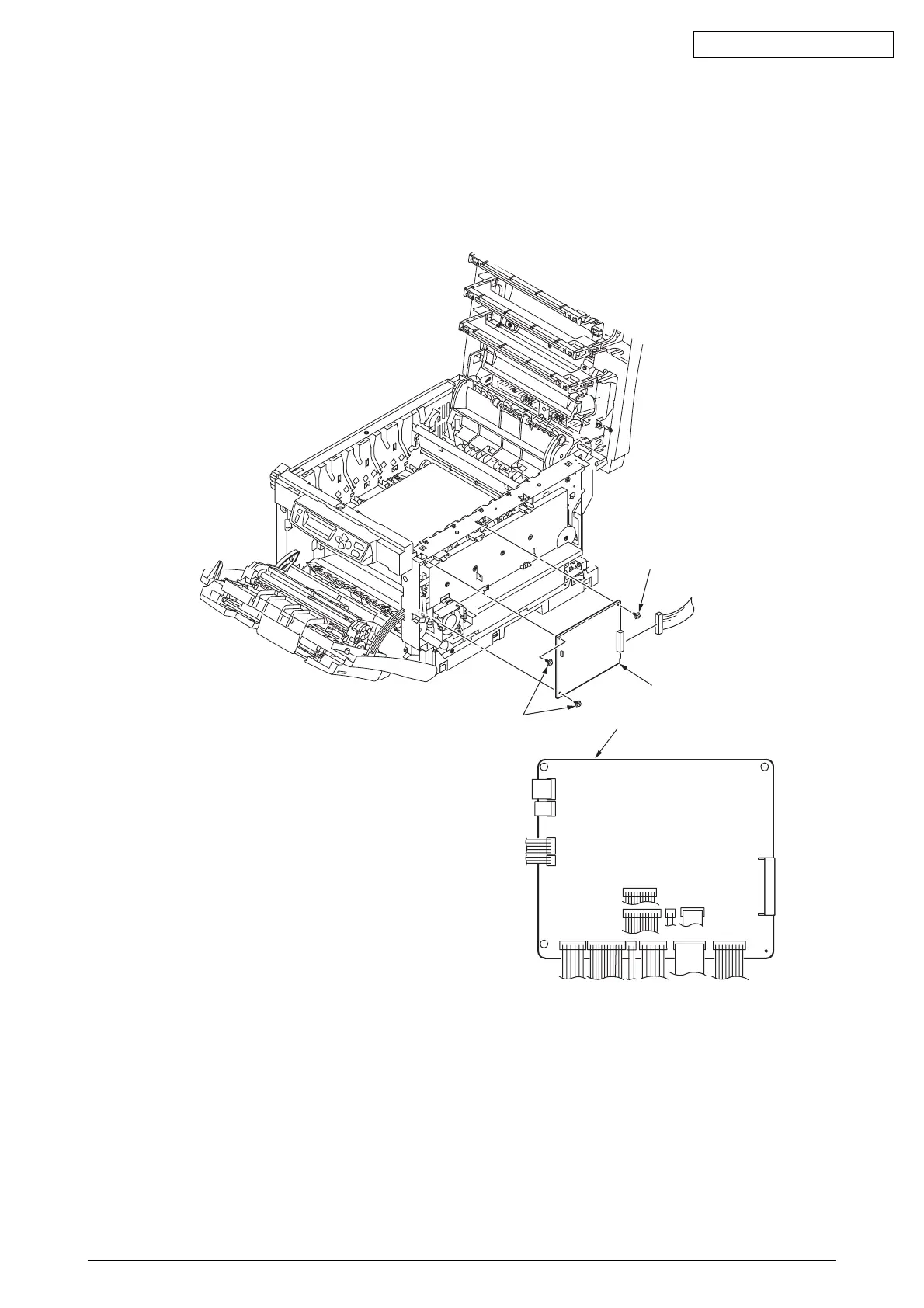

Figure 4-2-7-3 Print Engine Controller PCB (C5200/C5150/C3200n)
