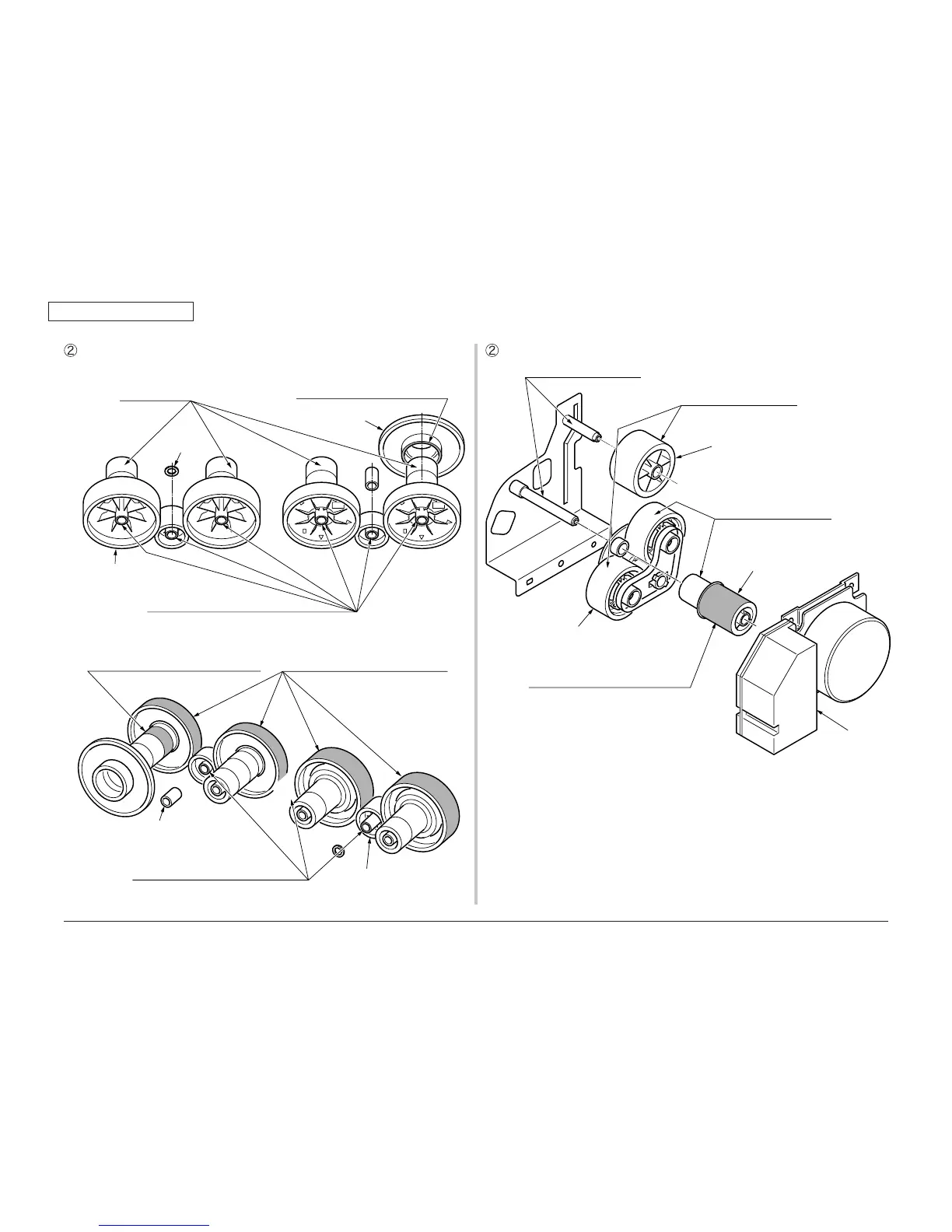

4. Component replacement
-2 44259102PA Plate-Assy.-Side R
Stopper-GearID
Gear-Idle-Z44
Gear-Idle-DrumZ24-102
Gear-LiftUp-Z121Z34
Spacer-Coupling
Grease prohibition
EM-30L Class C
Apply a normal amount of MOLYKOTE
(EM-30LP) to the end surface.
EM-30L Class C
Apply a normal amount of
MOLYKOTE (EM-30LP) to the end surface.
EM-30L Class C
Apply a normal amount of
MOLYKOTE (EM-30LP) to the end surface.
EM-30L Class C
Apply a normal amount of MOLYKOTE
(EM-30LP) to the whole circle of hatched areas.
EM-30L Class F
Apply a large amount of MOLYKOTE
(EM-30LP) to the gear teeth 120deg or more.
-3 44259101PA Plate-Assy.-Side R
Motor-DC-FU
Gear-Idle-Heat_Z14-Z32
Gear-Idle-Exit (Z37)
Gear-Planet-Assy
Grease prohibition at the posts
Grease prohibition at the gears
EM-30L Class F
Apply a large amount of MOLYKOTE
(EM-30LP) to the whole circle of gear teeth.
Grease prohibition at the gears
