Oki MC760 - Frame Assy Top Front; Top Cover

45376001TH Rev.1
81 /
Oki Data CONFIDENTIAL
4. Component replacement
4.2.13 Top cover

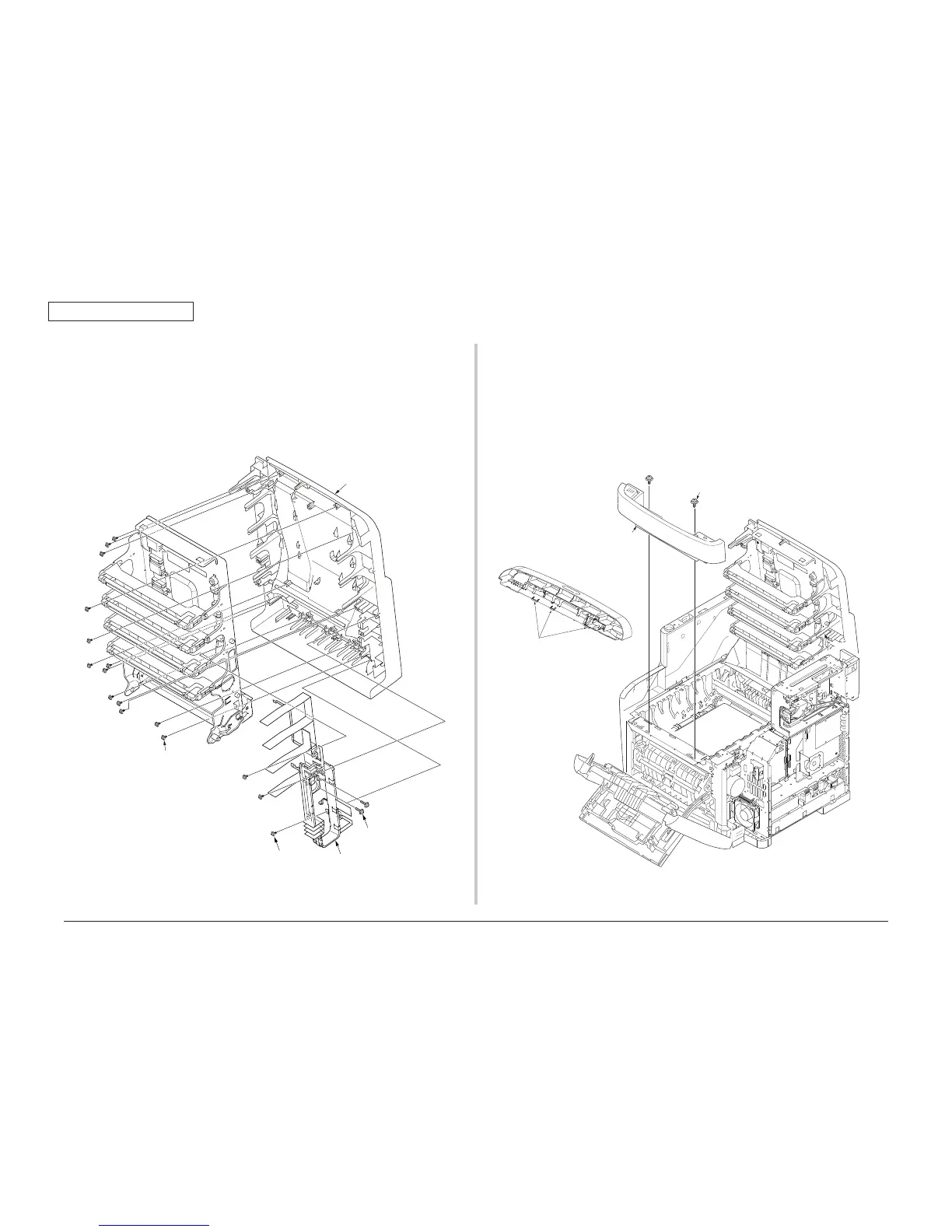

(1) Remove the top cover Assy. (See section 4.2.12)
(2) Remove fifteen screws(black, No:42932708)
①
, and remove the top cover
②
.
(3) Remove the screw (silver, No:42920406)
③
, remove the two
screws(silver,No:42920420)
④
and remove the Head Cable
⑤
.
②
⑤
①
×15
④
③
4.2.14 Frame Assy Top Front
(1) Remove the right side cover. (See section 4.2.3)
(2) Remove the plate shield. (See section 4.2.9)
(3) Remove the connector of Frame Assy Top Front.
(4) Remove the two screws (silver, No:42920406)
①,
disengage the claws(3 places)
on the Frame Assy Top Front
②
, and remove the Frame Assy Top Front
②
.
①
×2
②
Claw
