45376001TH Rev.1
92 /
Oki Data CONFIDENTIAL
4. Component replacement
4.2.28
Tray-Assy-Document/Cover-ADF-R

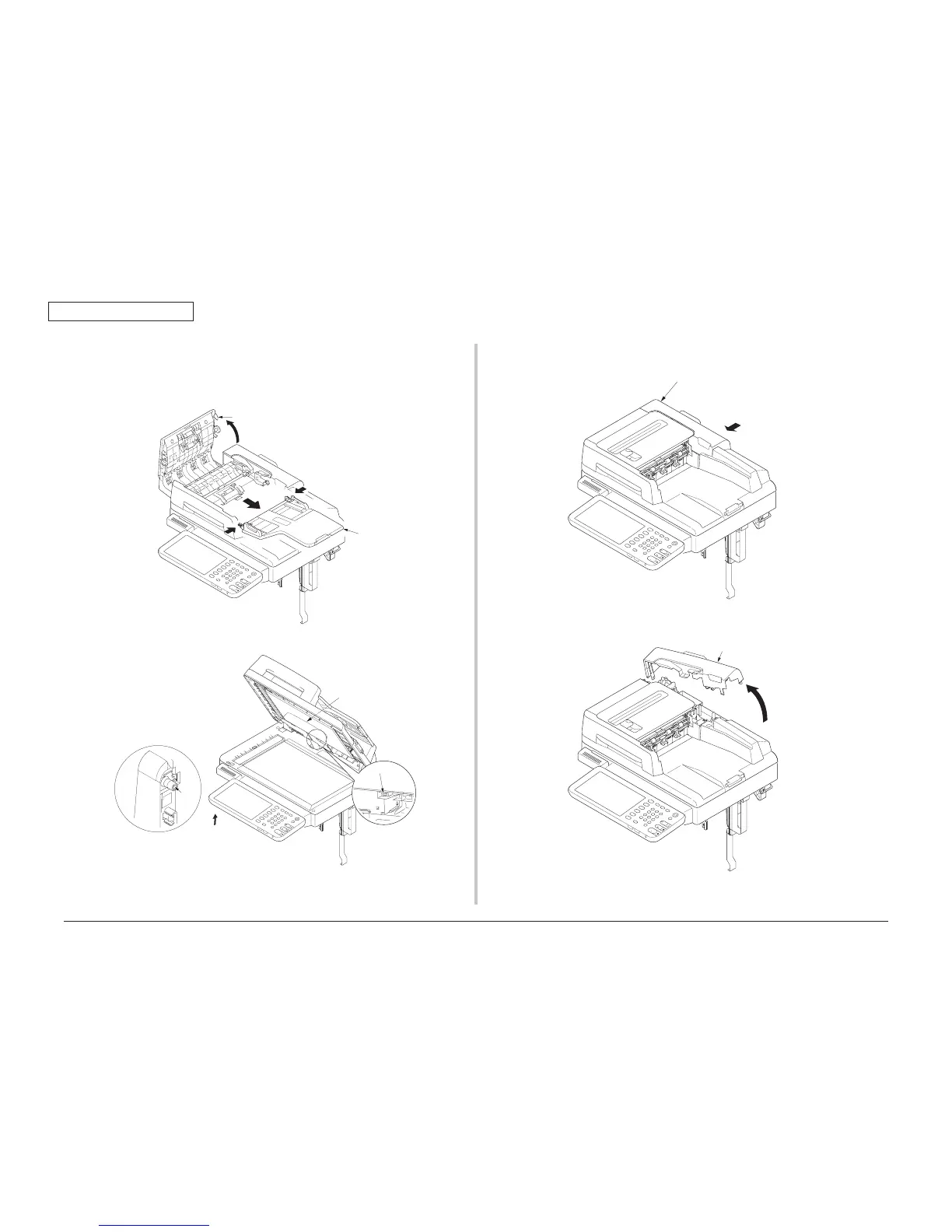

(1) Open the Cover-Assy-top-ADF.
(2) Remove the Tray-Assy-Document
①
by pull it in the direction arrow.
Cover-assy-top-ADF
①
(3) Open the ADF-unit while pushing the portion B, and push the claw of cover-
ADF-R
②
.
(4) Push the portion A. (Concurrent to push the (3) )
(5) Remove the cover-ADF-R
②
in the direction of the arrow.
②
Claw
B
ViewA
ViewA
A
To Next Page
