Oki Data CONFIDENTIAL
4. Component replacement

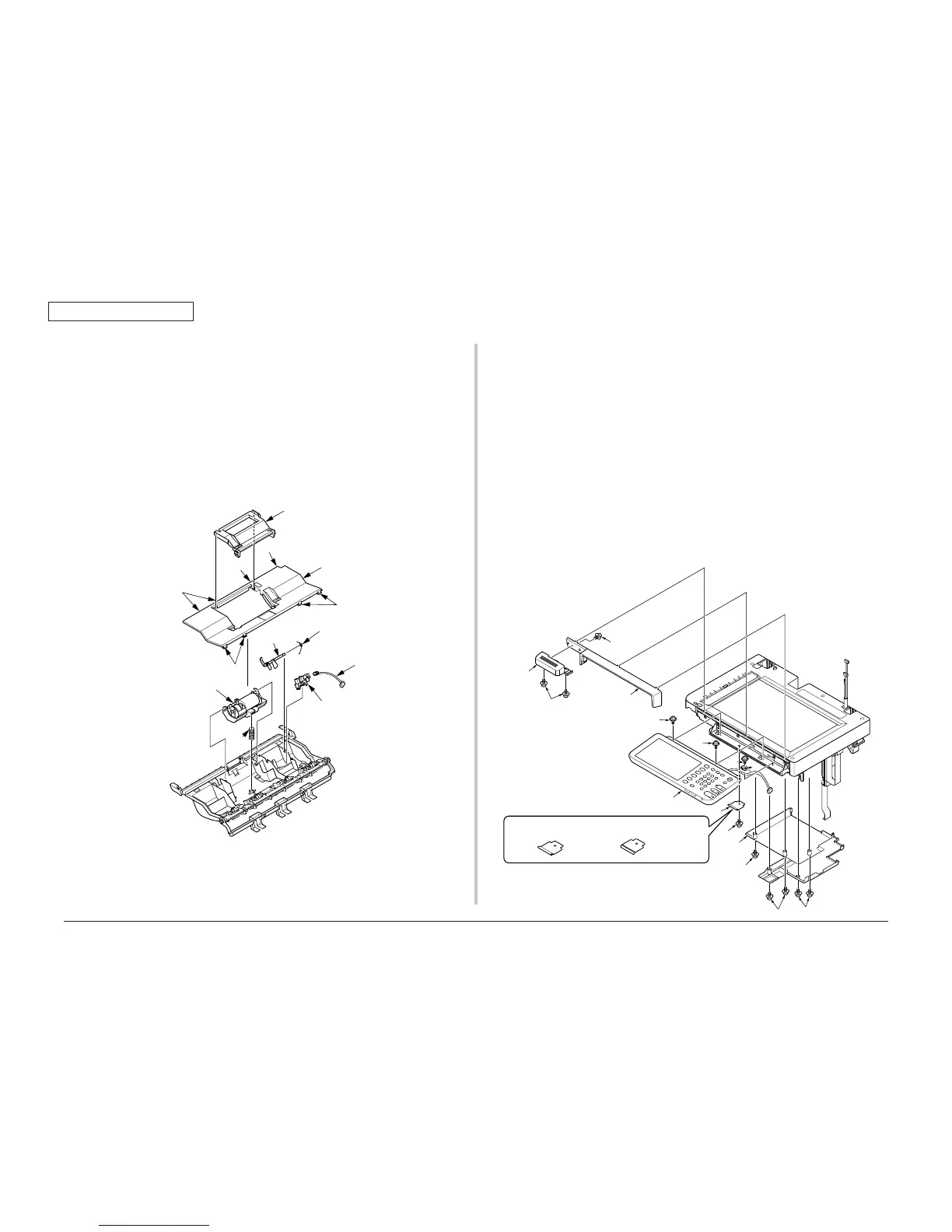

4.2.34 Guide-Assy-Retard
(1) Remove the eight claws and remove the Guide-Retard(sub)
①
.
(2) Remove the Cover-Retard(ADF)
②
.
(3) Remove the Frame-Assy Retard
③
and remove the spring Retard
④
.
(4) Remove the Lever-Hopping
⑤
and the spring-Hopping
⑥
.
(5) Remove the Photo-coupler
⑦
and remove the cable (conn cord AMP3P-
JST4P)
⑧
.
①
②
⑥
⑤
⑧
③
④
⑦
Claw
Claw
Claw
Claw
Claw
4.2.35 Flatbed-Unit
(1) Remove the five screws (black, No:42932706)
①
and remove the cover-
Bottom
②
.
(2) Remove the screw (silver, No:42920406)
③
and remove the plate-
stopper(OP)
④
.
(3) Remove the two screws (black, No:PB4083-5670P013)
⑤
and remove the
cover-OP
⑥
.
(4) Remove the screw (black, No:42932708)
⑦
and remove the Handle-
scanner(S)
⑧
.
(5) Rotate the OP-panel-unit
⑨
90 degrees.
(6) Remove the two screws (silver, No:42920406)
⑩
.
(7) Remove the screw (silver, No:42920406)
⑪
and remove the clamp-cable
⑫
and
remove the OP-panel-unit
⑨
.
②
①
⑥
③
①
①
④
⑨
⑤
⑧
⑦
⑩
⑩
⑪
⑫
Attention of assembly for direction of plate-stopper(OP)④
(for finisher model) (for without finisher model)
