7. Troubleshooting and repair procedure

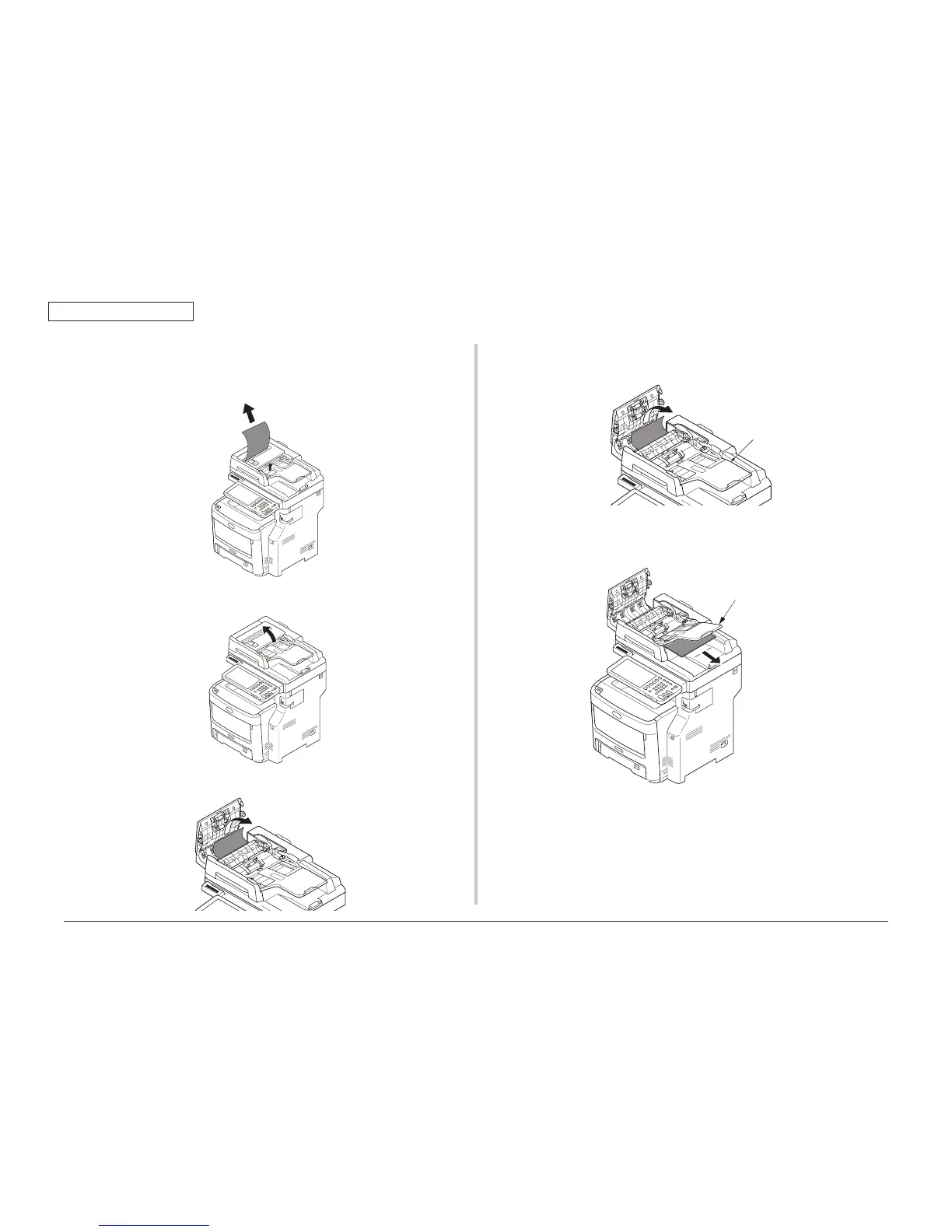

Document Jam
In the Duplex Paper Path
(1) While opening the ADF cover, pull out the document from the duplex paper path.
(3) Hold jammed document by the top edge, and gently pull it out.
Inside the ADF
(1) Remove any documents from the document tray.
(2) Open the ADF cover.
If the edge of the document can been seen under the paper guide, lift the paper
guide and then pull out the document.
If the edge of the document cannot be seen in the ADF, lift the document tray
and then pull out the document.
Pull down the document tray.
(4) Close the ADF cover.
paper guide
document tray
