4. Component replacement

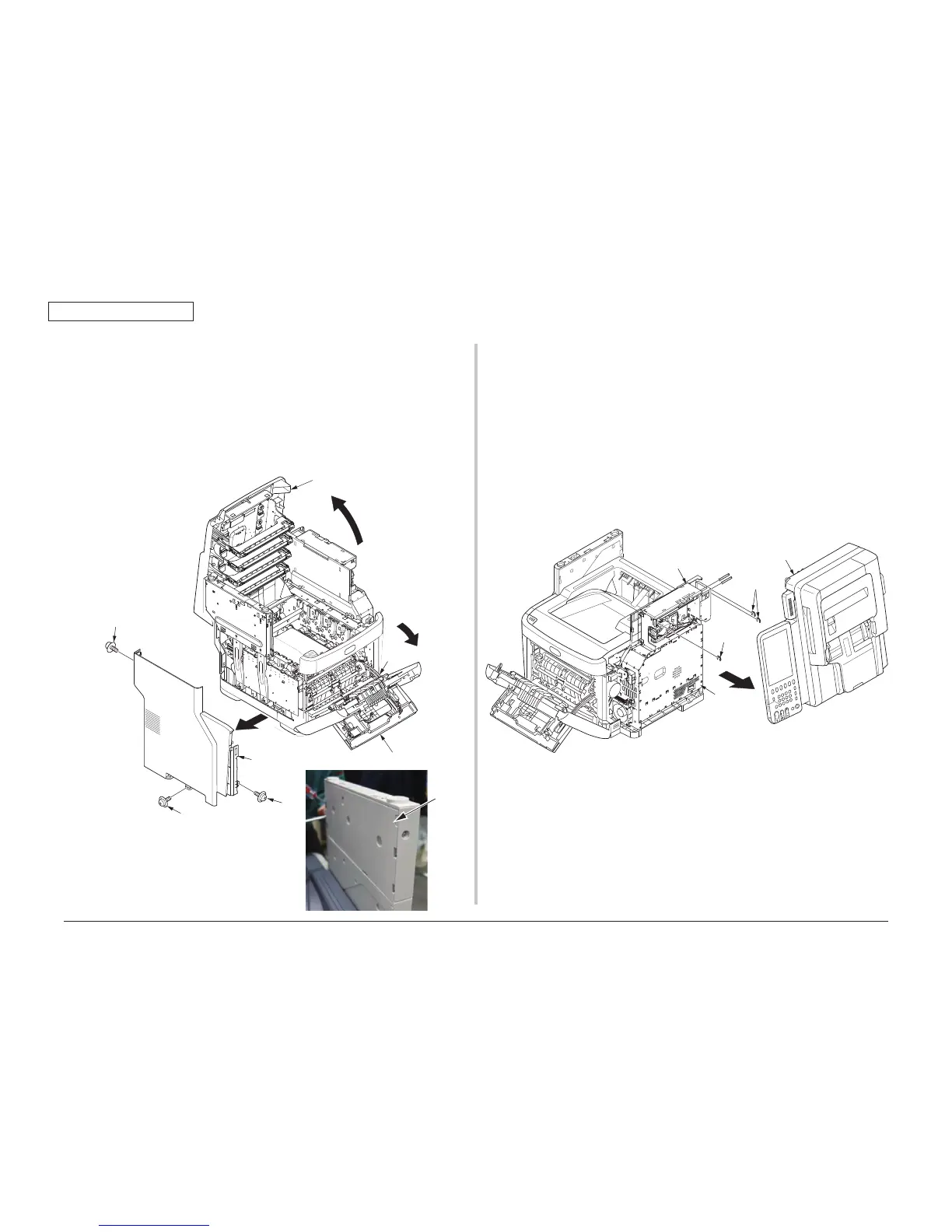

4.2.4 Left side cover
(1) Open the scanner and top cover.
(2) Open the feeder unit.
(3) Remove the claw
①
, and remove the Feeder-Unit without disconnecting the
cable.
(4) Remove the two screws (silver, No:42920408)
②
and the screw (black,No:42932710)
③
,
and remove the left side cover
④
.
4.2.5 Scanner unit
(1) Open the scanner and top cover.
(2) Remove the right side cover.(See section 4.2.3)
(3) Remove the Cover-Side(R-Top)
①.
(4) Remove the Plate-Shield
②
.
(5) Remove the all connector of the scanner.
(6) Remove the three E type stop rings
③
and remove the scanner
④
.
Feeder unit
Top cover
②
④
③
②
①
③
③
④
①
②
Claw
