Oki MC760 - Hinge-Assy-L; Hinge-Assy-R

45376001TH Rev.1
95 /
Oki Data CONFIDENTIAL
4. Component replacement

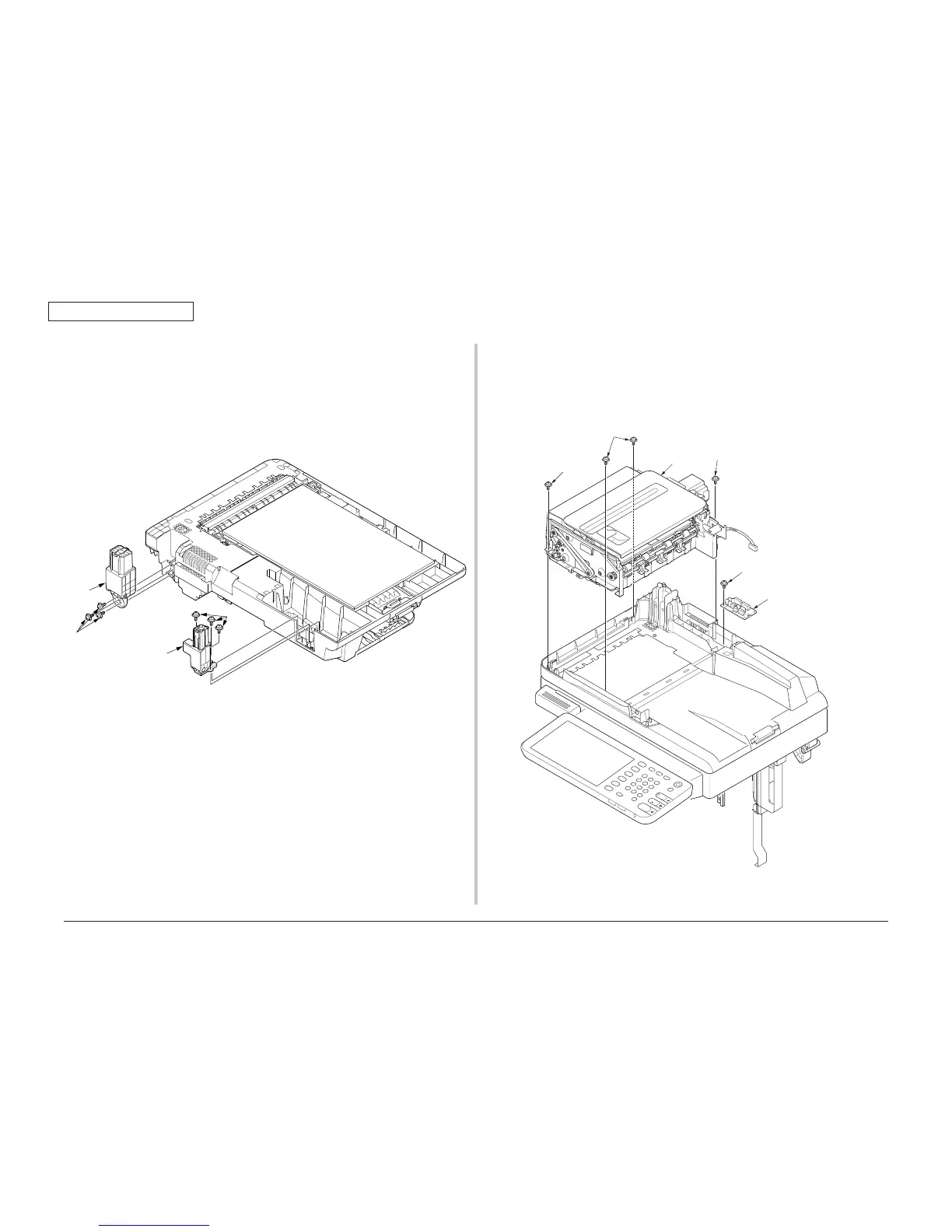

4.2.31 Hinge-Assy-L / Hinge-Assy-R
(1) Remove the three screws (black, No:42932708)
①
and remove the hinge-
Assy-R
②
.
(2) Remove the three screws (black, No:42932708)
③
and remove the hinge-
Assy-L
④
.
①
②
④
③
4.2.32 ADF-Assy
(1) Remove the screw (silver, No:42920406)
①
and remove the ADF board(7RL)
②
.
(2) Remove the four screws (black, No:42932706)
③
and remove the ADF-assy
④
.
①
②
④
③
③
③
