Oki MC760 - Fuser Unit Replacement

45376001TH Rev.1
74 /
Oki Data CONFIDENTIAL
4. Component replacement
4.2.2 Fuser unit

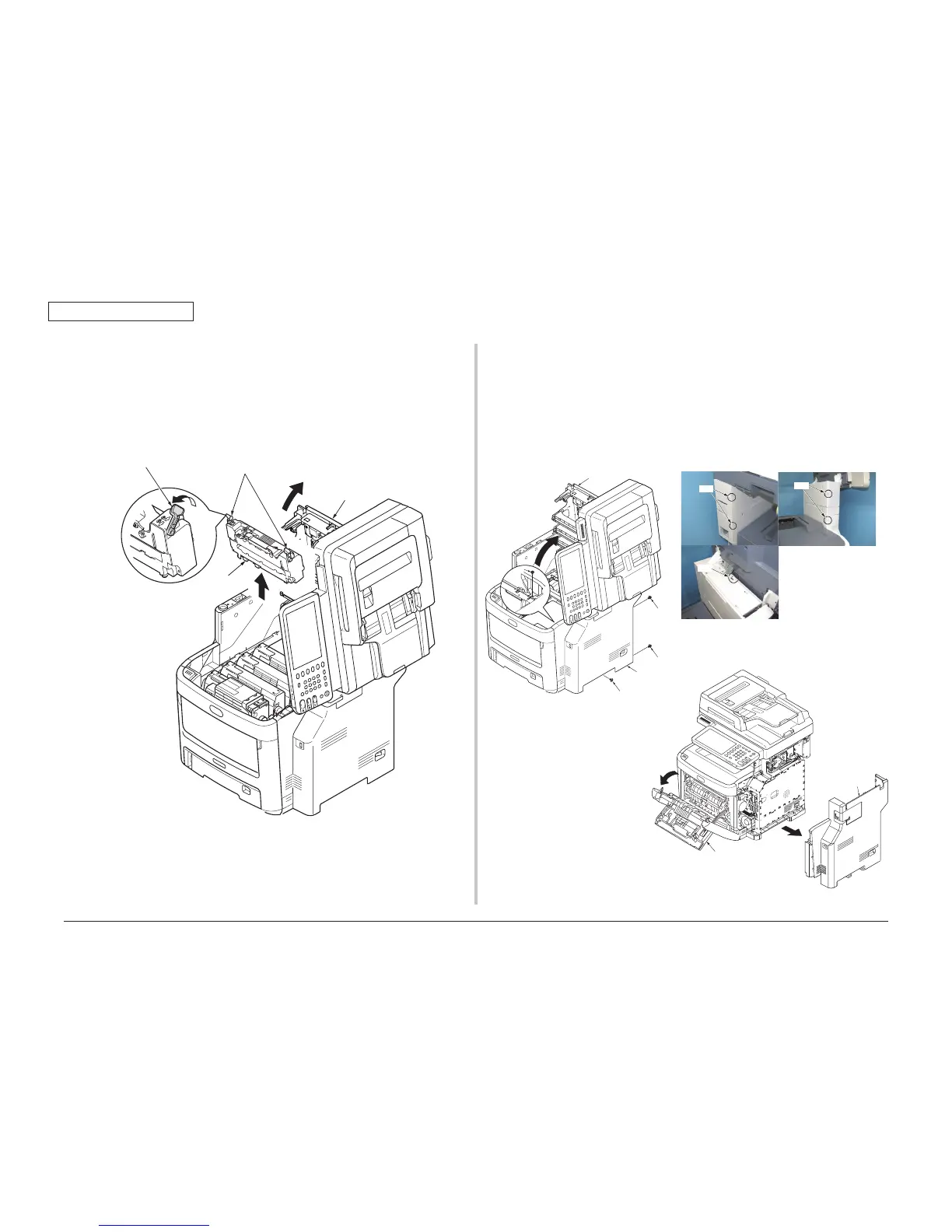

(1) Open the scanner and top cover.
(2) Push up the fix lever of fuser unit in the direction of arrow, and remove the fuser
unit
①
.
Top cover
Fix lever of fuser unit
(blue)
Fix lever of fuser unit
(blue)
①
4.2.3 Right side cover
(1) Open the scanner and top cover.
(2) Loose the two screws (silver, No:42920408)
①
and two screws (black,No:42932710)
②
.
(3) Release 5 claws.
(4) Close the scanner and top cover. And open the feeder unit.
(5) Remove the right side cover
③
.
Top cover
①
②
③
②
①
Feeder unit
③
Claw
Claw
Claw
