4. Component replacement

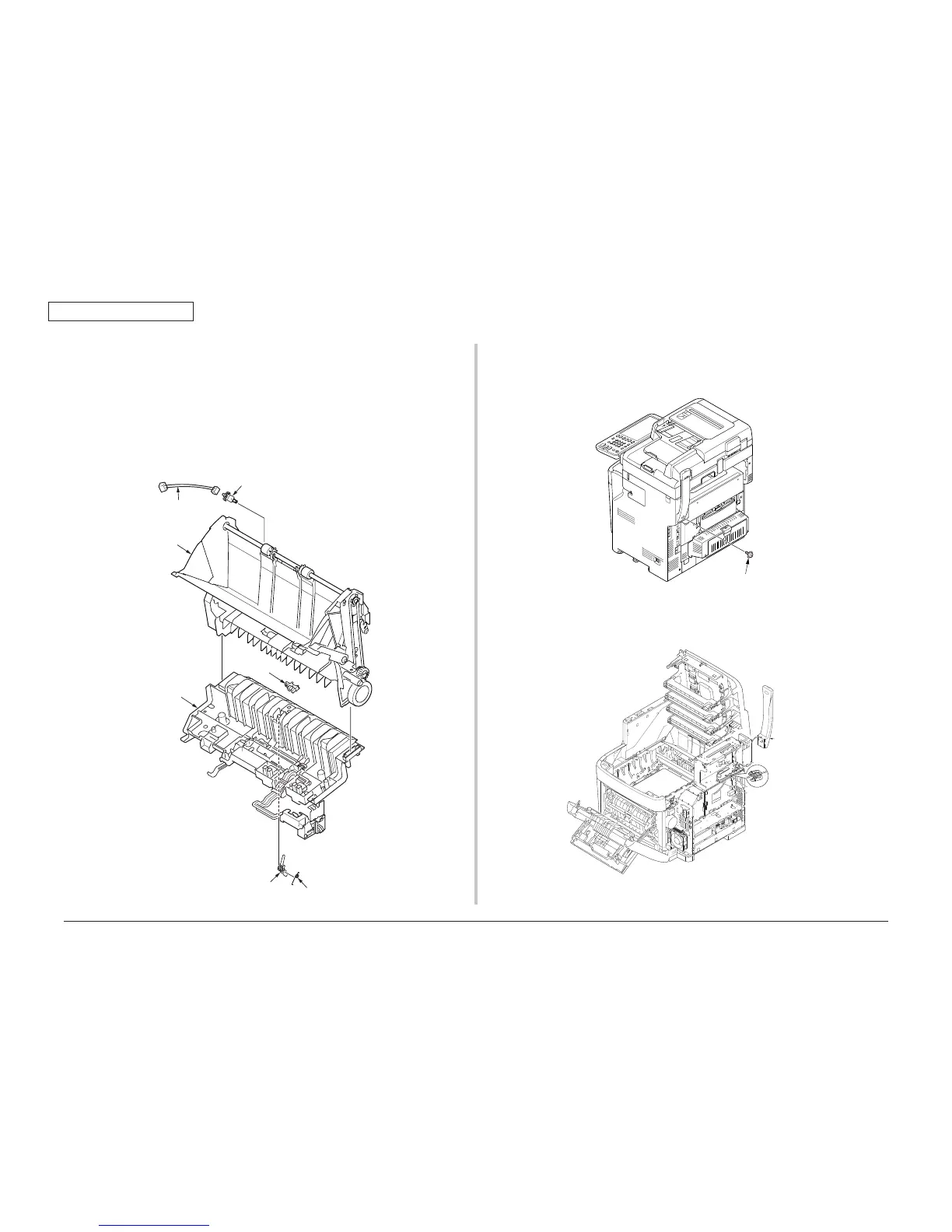

4.2.24 Eject sensor/Micro-SW

(1) Remove the eject Assy. (See section 4.2.17)

(2) Disengage the claws (2 places), and disassemble the Assy into guide eject

lower

①

and guide eject upper

②

(3) Remove the lever eject sensor

③

and spring-SNS(F/R)

④

and eject sensor

⑤

(4) Remove the micro-SW

⑥

and cable

⑦

①

②

③

④

⑦

⑥

⑤

4.2.25

Antenna (for wireless model only)

(1) Remove the screw (silver, No:42920408)

①

②

Clamp

Core

(2) Remove the FAX PCB.(See section 4.2.9)

(3) Remove the two clamp-cable and core and disconnect the connector.

(4) Remove the Antenna

②
