4. Component replacement
4.2.36
Frame-assy-FB
(1) Remove the five screws (silver, No:42920406)
①
and remove the five screws
(black, No:42932706)
②
.
(2) And remove the plate-shield-SU
③
.
(3) Remove the all SU-board cables.
(4) Remove the five screws (silver, No:42920406)
④
and remove the SU-board
⑤
.
(5) Remove the screw (black, No:42932706)
⑥
.
(6) Pull core
⑦
(GFPC-31-12 (1051015C0004)) out of FFC cable.
(7) Remove the FFC cable (20706FWR1.-24-520)
⑧
.
(8) Remove the four screws (black, No:42932710)
⑨
and Film-FG(SCN-PR)
⑩
.
(9) Remove the cover-hinge (L)
⑪
and the Plate-Hinge-L(Caulking)
⑫
.
(10) Remove the seven screws (black, No:PB4083-5670P013)
⑬
and remove the
cam-hinge
⑭
.
(11) Remove the screw (black, No:42932706)
⑮
and the two screws (black,
No:PB4083-5670P013)
⑯
.
(12) Remove the cover-assy-LF
⑰
.
②
⑤
③
⑭
⑰
⑫
⑪
②
②
②
①
①
①
⑯
⑨
×4
⑬
×7
④
×5
⑦
⑧
⑥
⑯
⑮
⑩

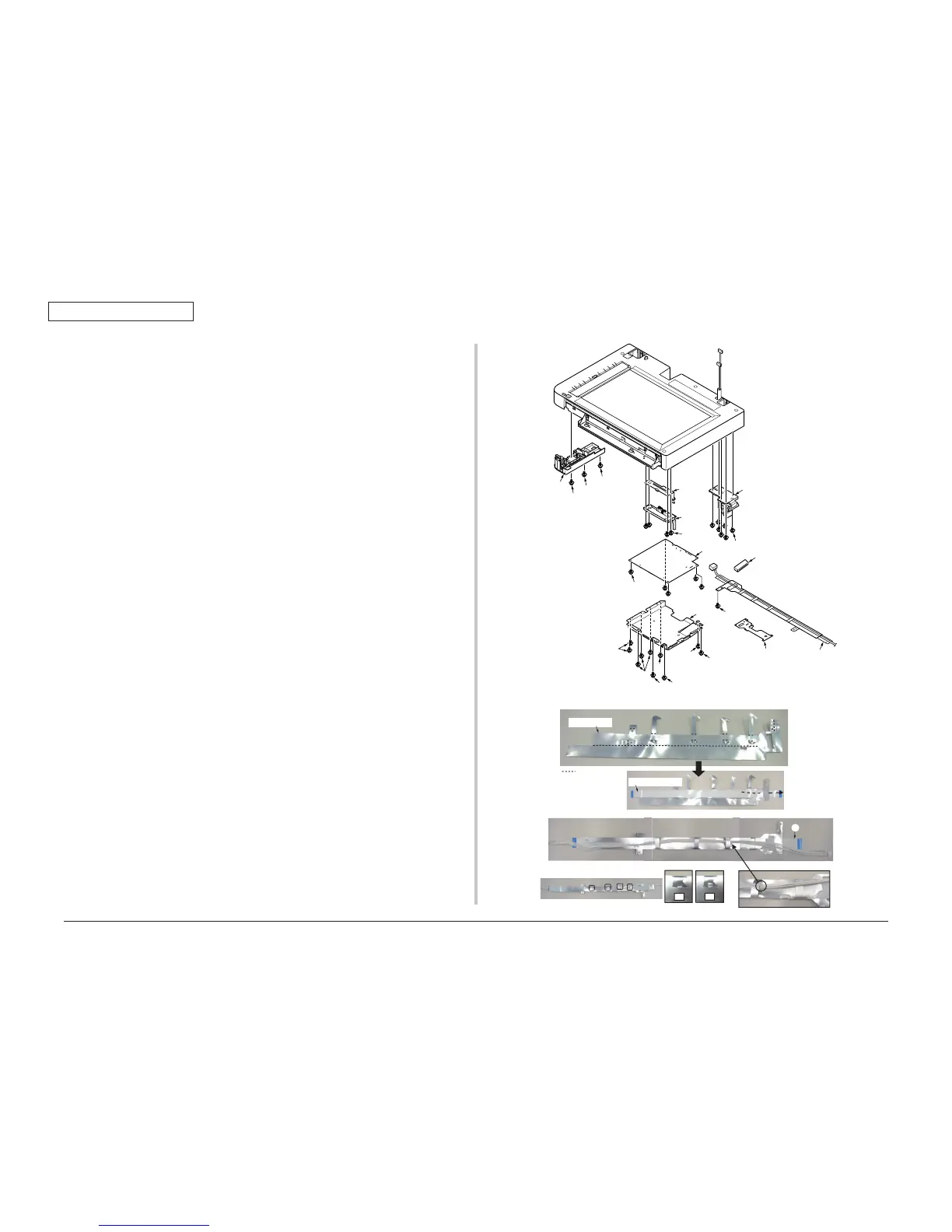

<Attention of assembly for FFC>
Valley fold
OK
NG
⑧
Text side in the back
Check the four portion
after assembled
portion of tie wrap
Back side
Film-FG(CU-SU)
To Next Page
