Oki MC760 - Cover Assy Front; Board-RSF;MPT Hopping Roller; Frame Assy Separator Feeder Assy Regist

45376001TH Rev.1
86 /
Oki Data CONFIDENTIAL
4. Component replacement

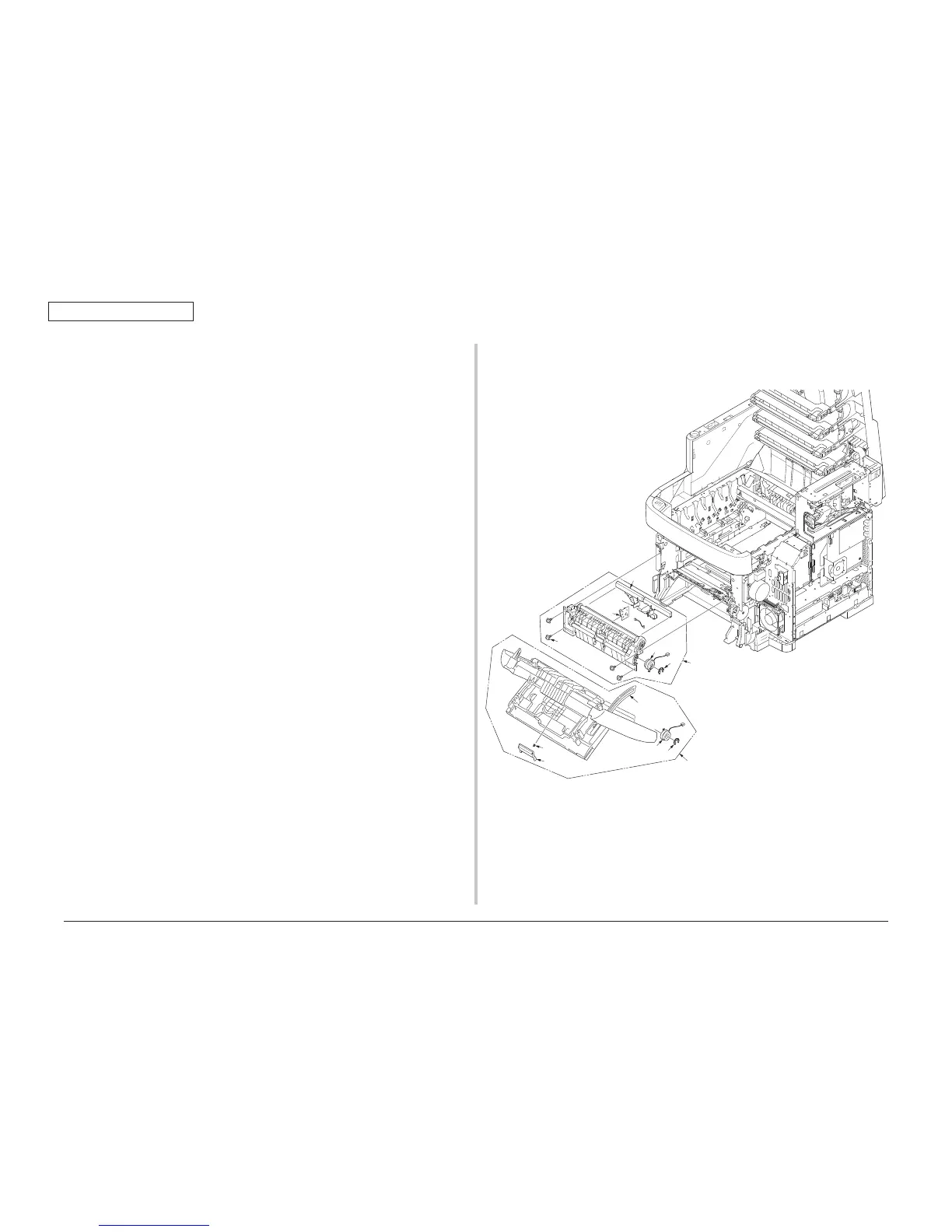

4.2.20 Cover Assy front/ Board-RSF/MPT hopping
roller/ Frame Assy separator/ Feeder Assy regist
(1) Open the top cover.
(2) Remove the plate shield and remove the connector. (See section 4.2.9)
(3) Disengage the claws of stay L and remove the Cover-Assy-front
①
.
(4) Remove the E Ring
②
and remove the Clutch
③
.
(5) Remove the supporters (2 places), and remove the frame Assy separator
④
and
spring
⑤
.
(6) Remove the four screws(silver, No:42920406)
⑥
and remove the feeder unit
⑦
.
(7) Remove the E Ring
⑧
and remove the Clutch
⑨
.
(8) Disengage the claw, and remove the cover sensor
⑩
.
(9) Remove the connector and remove the Board-RSF
⑪
.
①
stay L
②
③
④
⑤
⑥
×4
⑦
⑧
⑨
⑩
⑪
Claw
