Oki MC760 - Hopping Motor; Fuse Motor

45376001TH Rev.1
83 /
Oki Data CONFIDENTIAL
4. Component replacement

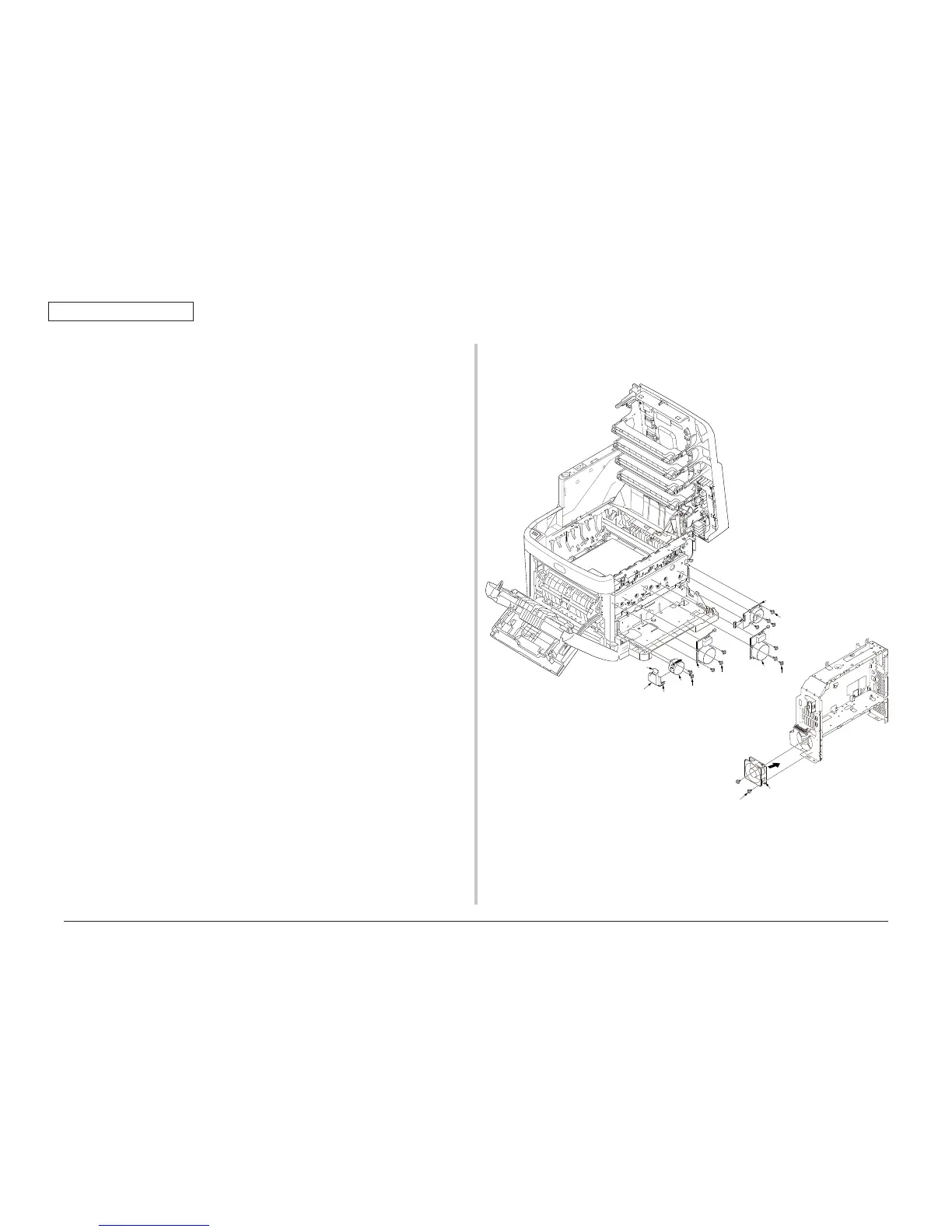

4.2.16 Hopping motor/ Fuse motor
(1) Open the scanner and top cover.
(2) Remove the plate shield and take the CU/PU PCB out. (See section 4.2.9)
(3) Remove the Plate-Board-R-Assy.(See section 4.2.11)
(4) Remove the two screws
①
(silver, No:42920428) and connector, and take the
low voltage FAN
②
out.
(5) Disengage the claw D (2 places) and claw E, and remove the motor cover
③
.
(6) Remove the two screws
④
(silver, No:42920406) and connector, and take the
hopping motor
⑤
out.
(7) Remove the four screws
⑥
(silver, No:42920406) and connector, and take the
fuse motor
⑦
out.
(8) Remove the three screws
⑧
(silver, No:42920406) and connector, and take the
ID motor
⑨
out (2 places).
Notes!
②
in the proper direction.
①×2
②
③
④
×2
⑤
⑥
×4
⑦
⑧
×3
⑨
⑧
×3
⑨
Claw D
Claw E
Air
