45376001TH Rev.1
84 /
Oki Data CONFIDENTIAL
4. Component replacement

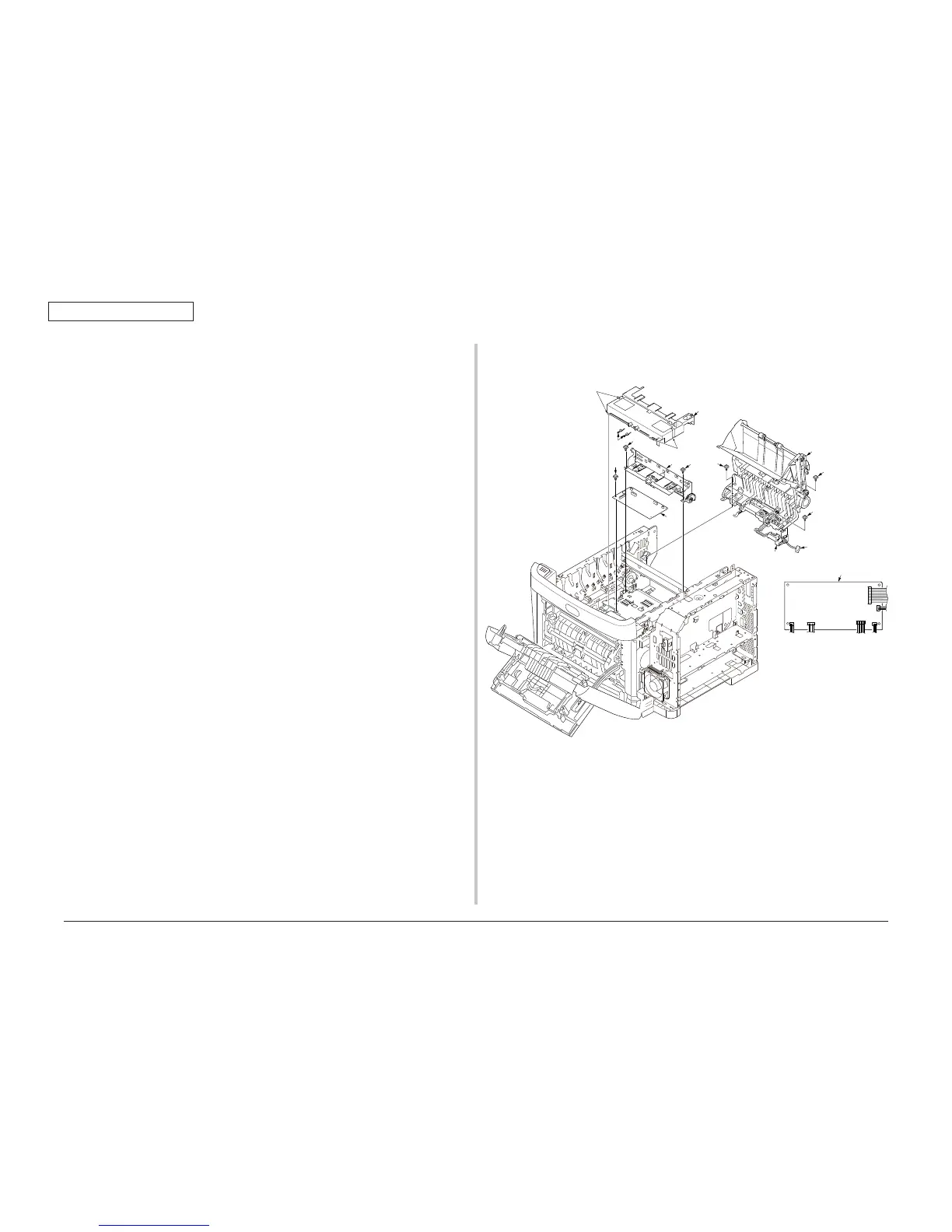

4.2.17 Guide eject Assy/ Color regist Assy/ Board-IBY
(1) Remove the left side cover, right side cover, rear cover, top cover Assy. (See
section 4.2.4, 4.2.3, 4.2.7, 4.2.12)
(2) Remove the control PCB and low-voltage power supply. (See section 4.2.9)
(3) Remove the connector of belt thermistor, remove the two torsion springs
,
and disengage four claws (4 places) by minus driver, remove the cover driver
.
(4) Remove the screws (silver, No:42920406)
and connectors (6 places),
remove the Board-IBY
.
(5) Remove the two screws (silver, No:42920406)
and remove the color regist
Assy
.
(6) Remove the three screws (silver, No:42920406)
, remove the cable
of fuse
I/F connector from clamp, and slide the claw of cable guide
to disengage,
remove the guide eject Assy
.
FUSER
LCR
RCR
DENS
EXIT
PUIF
Claw
Claw
