45376001TH Rev.1
42 /
Oki Data CONFIDENTIAL
2. Operating instructions
2.3.1.4 Document detection

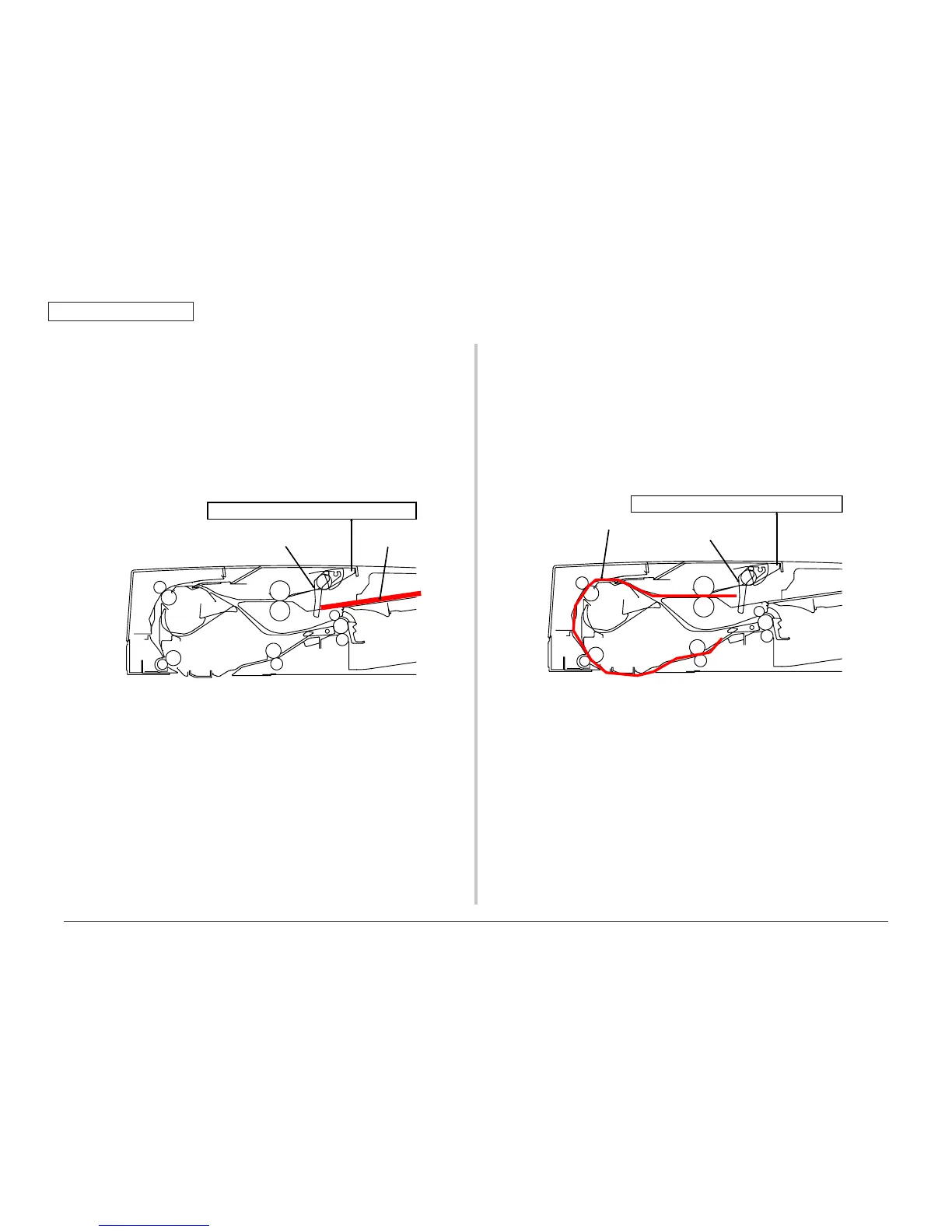

Document present/absent detection
Document present/absent detection on the document tray is performed by document set
sensor (PI15). When a document is placed on th edocument tray, the detection lever moves
together with the light-shielding plate so that photo interrupter that has been passing the light,
shut down the light. Thus, the document set sensor (PI15) issues the document detection
signal (SET) telling that a document is set, to the connected equipment via the ADF Relation
board(7RL).
Detection of final document
The document set sensor (PI15) detect if the document that has started of the final document
has passed the set sensor lever, the detection lever moves together with the light-shielding
plate so that the photo interrupter that has been shutting down the light, passes the light.
Thus, the document set sensor (PI15) issues the document set detection signal (SET). Telling
that the document under feeding is the final document, to the connected equipment via the
ADF Relation board(7RL).
㻰㼑㼠㼑㼏㼠㼕㼛㼚㻌㼘㼑㼢㼑㼞
㻿㻱㼀
㻰㼛㼏㼡㼙㼑㼚㼠
㻼㻵㻝㻡
㻭㻰㻲㻌㻾㼑㼘㼍㼠㼕㼛㼚㻌㼎㼛㼍㼞㼐㻔㻣㻾㻸㻕
㻰㼑㼠㼑㼏㼠㼕㼛㼚㻌㼘㼑㼢㼑㼞
㻿㻱
