Oki MC760 - Plate-Board-R Assy;Guide-Cable Power Low; Stay-R

45376001TH Rev.1
79 /
Oki Data CONFIDENTIAL
4. Component replacement

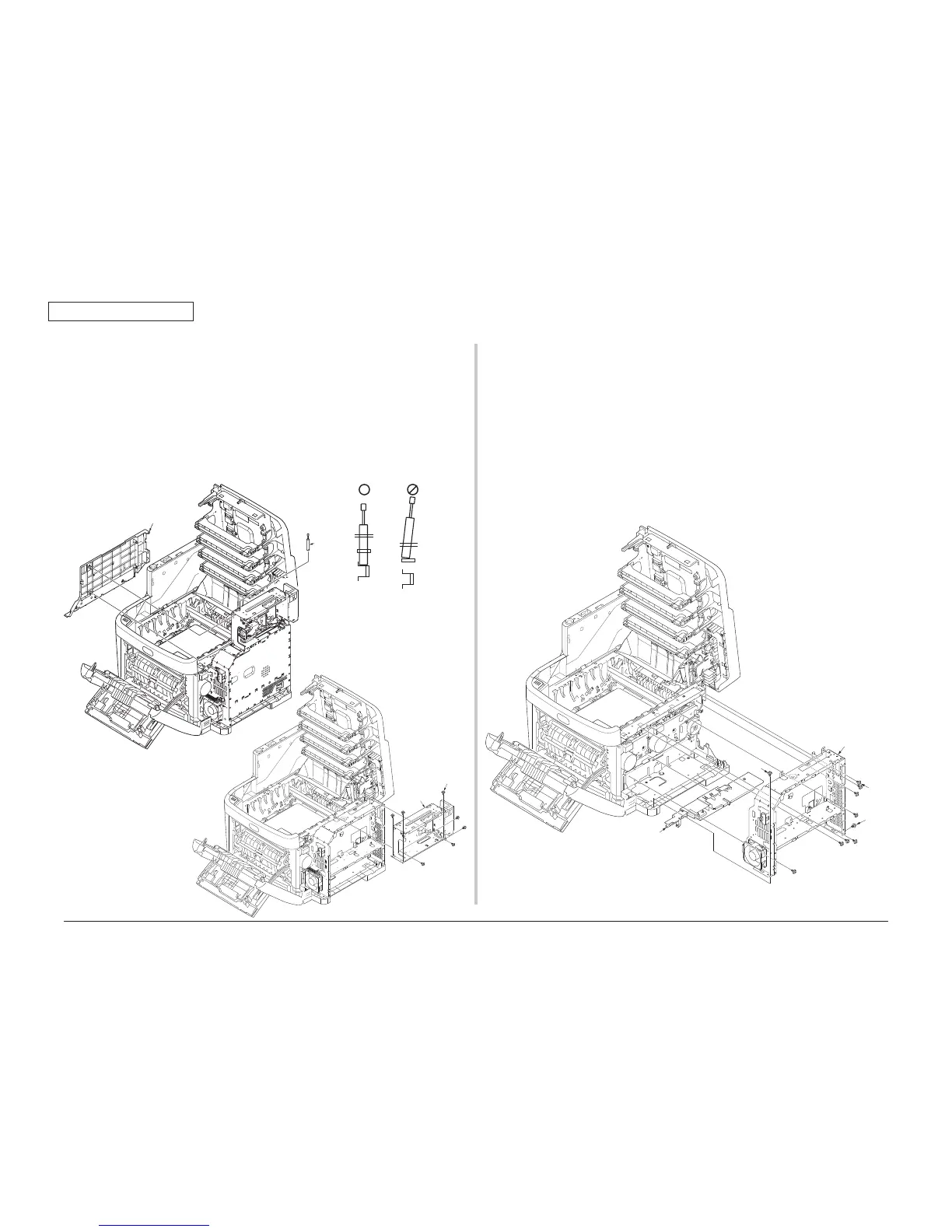

4.2.10 Stay-R
(1) Remove the right side cover. (See section 4.2.3)
(2) Remove the Scanner.
(3) Remove the soft-absorber
①
and cover side(R-Inner)
②
.
(4) Remove the seven screws (silver,No:42920406)
③
and remove the Stay-R
④
.
Note! When assemble the scanner, assemble the soft-absorber correct position
and close the scanner.(Frame and soft-absorber break may occur)
①
×8
②
③
④
②
4.2.11 Plate-Board-R Assy/Guide-Cable Power Low
(1) Remove the right side cover. (See section 4.2.3)
(2) Remove the stay-R Assy. (See section 4.2.10)
(3) Remove the rear cover. (See section 4.2.7)
(4) Remove the plate shield and take the CU/PU PCB out. (See section 4.2.9)
(5) Remove the eight screws (silver, No:42920406)
①
,remove the two screws
(black,No:42932706)
②
and remove the Plate-Board-R-Assy
③
.
(6) Remove the Guide-Cable Power Low
④
.
②
①
④
③
×7
