Oki MC760 User Manual

45376001TH Rev.1
203 /
Oki Data CONFIDENTIAL

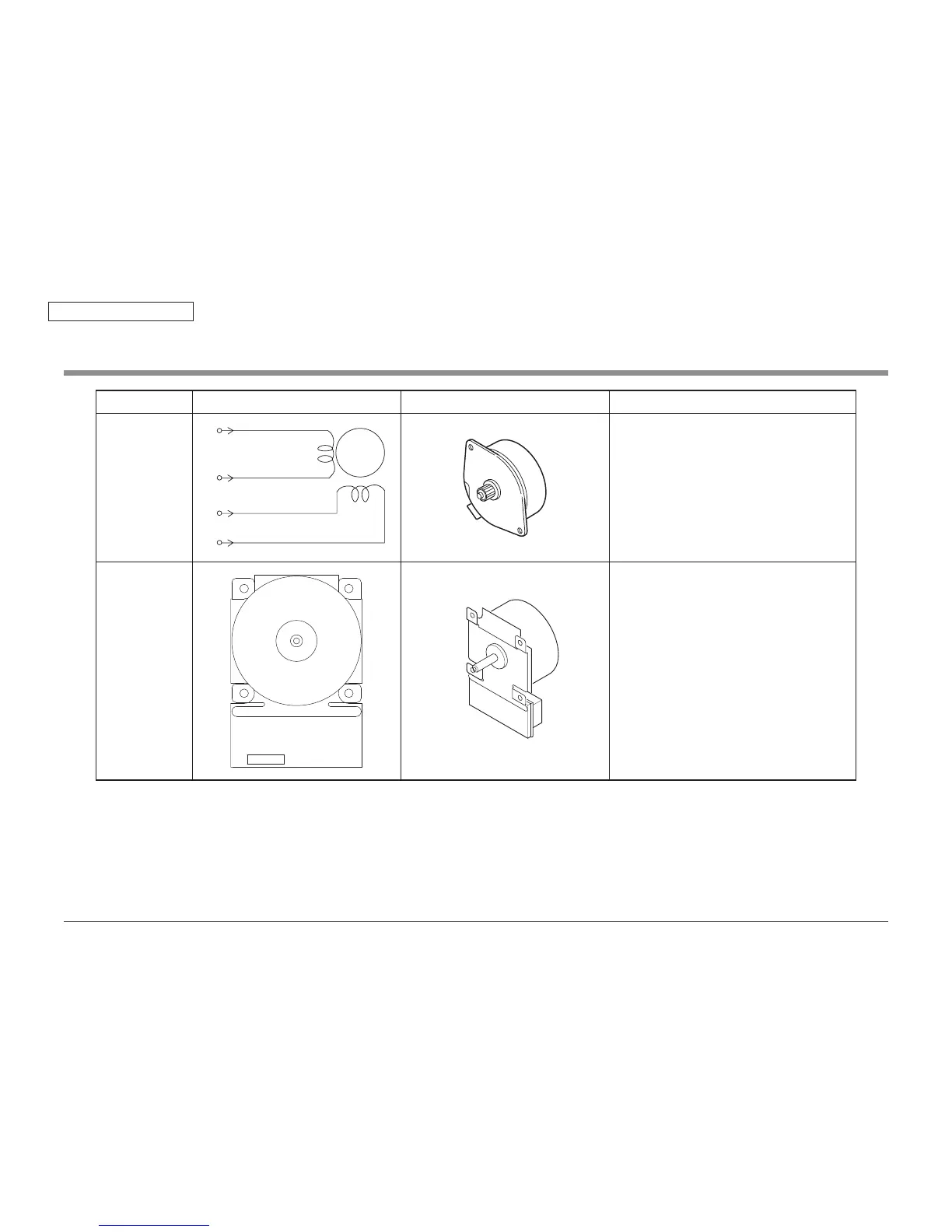

8. Connection diagrams
8.1 Resistance value check
Unit Electrical circuit diagram, connection Part outside view Resistance value
Transport belt
motor
M
1
2
3
4
Between pin-1 and pin-2: 3.4
Ω
Between pin-3 and pin-4: 3.4
Ω
ID motor
Across both ends of IP2 and IP3: 1
Ω
or less
