Oki MC760 User Manual

45376001TH Rev.1
204 /
Oki Data CONFIDENTIAL

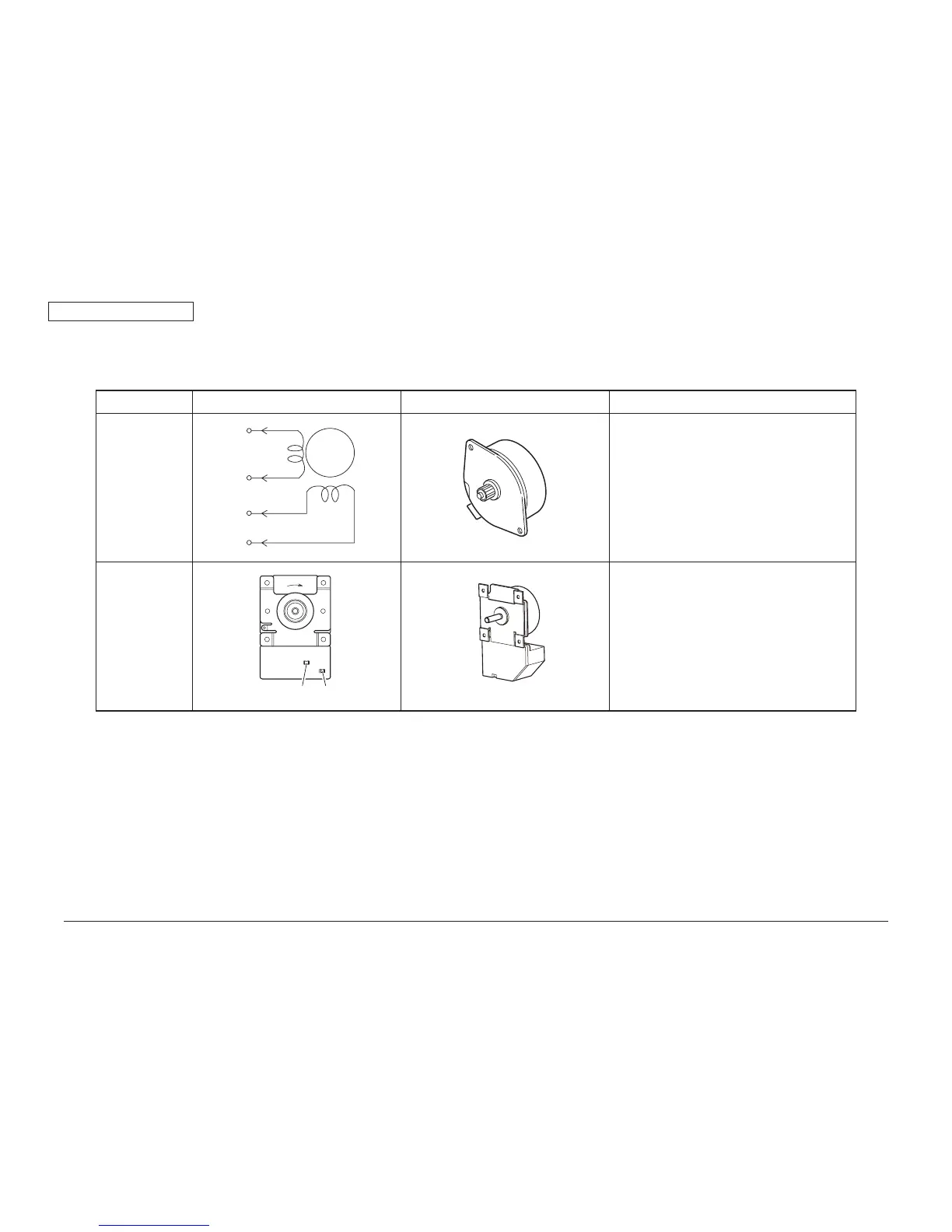

8. Connection diagrams
Unit Electrical circuit diagram, connection Part outside view Resistance value
ID up/down motor
M
1
2
3
4
Between pin-1 and pin-2: 6.1
Ω
Between pin-3 and pin-4: 6.1
Ω
Fuser unit motor
IP1IP2
Across both ends of IP1 and IP2: 1
Ω
or less
