4. Component replacement

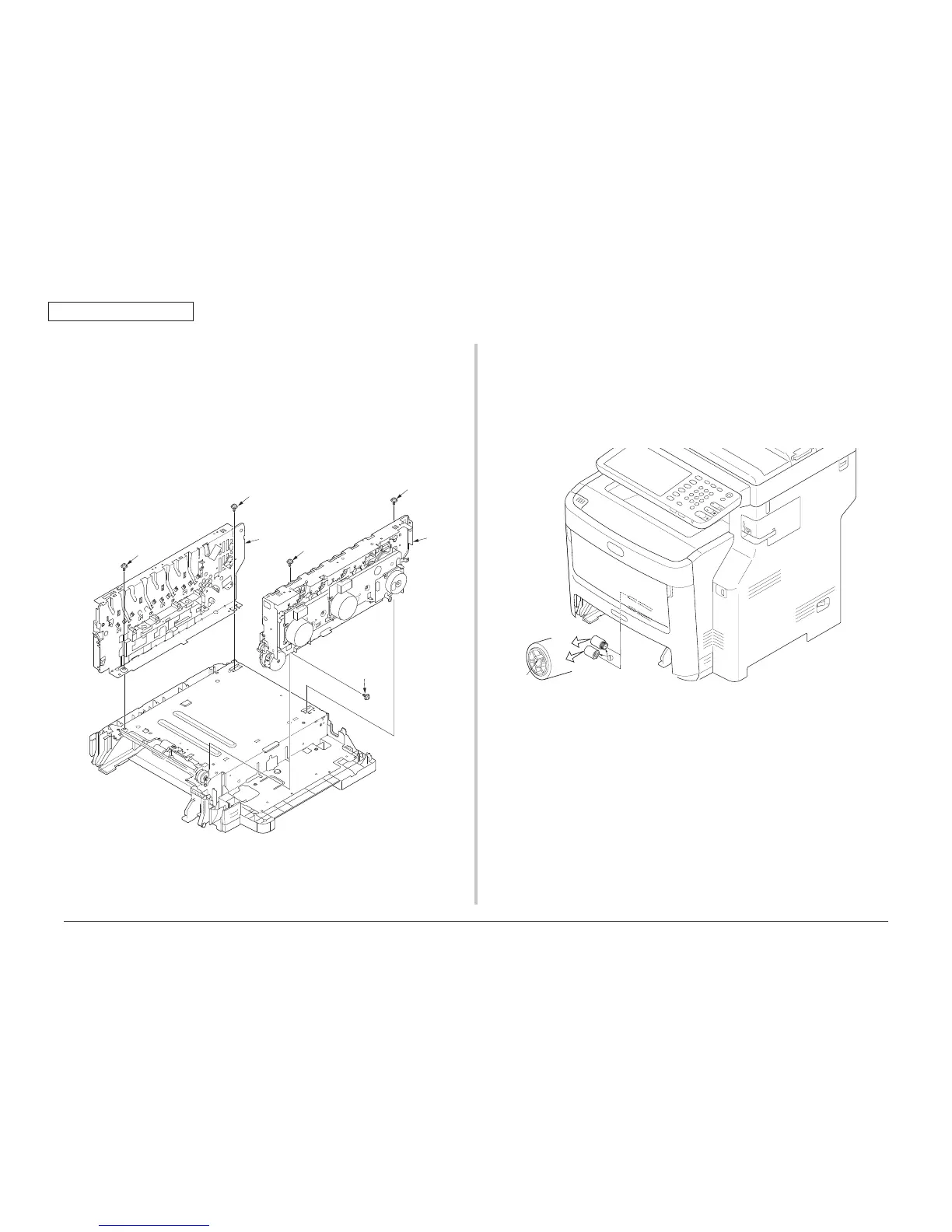

4.2.22 Plate-Assy-Side R/ Plate-Assy-Side L
(1) Remove the plate driver,shaft-Liftup.(See section 4.2.21)
(2) Remove the three screws (silver, No:42920406)
①
and remove the Plate-Assy-
Side R
②
.
(3) Remove the two screws (silver, No:42920406)
③
and remove the Plate-Assy-
Side L
④
.
③
④
③
①
①
②
①
4.2.23 Feed roller
(1) Remove the cassette.
(2) Remove the latch and remove the feed roller (2 pieces)
①
.
Latch
